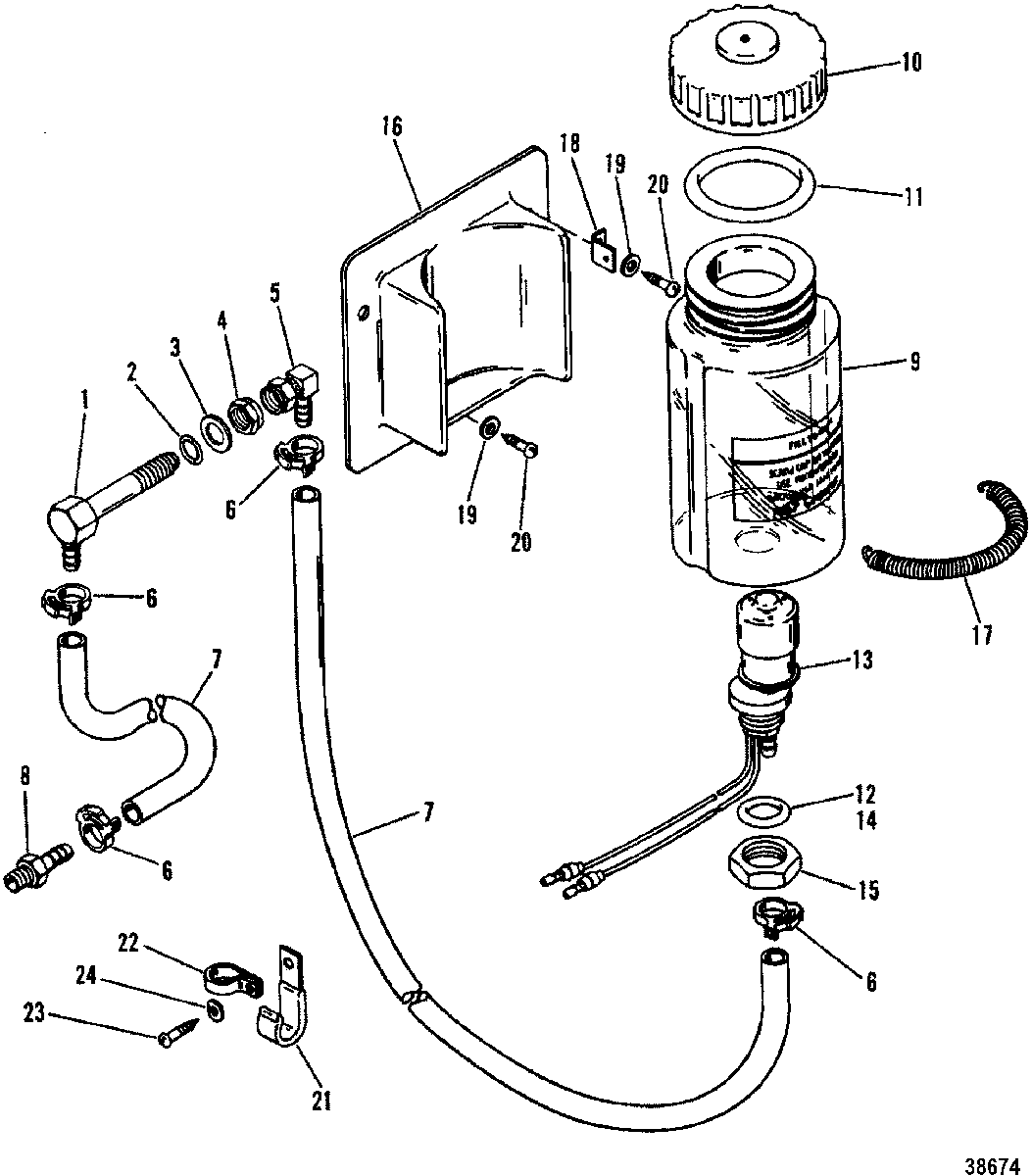

OIL RESERVOIR COMPONENTS(ROUND OIL BOTTLE) для Mercruiser - BRAVO ONE 0B664190 THRU 0F729999
-
№АртикулНазвание
-
122-18922 CONNECTORCONNECTOR
-
225-201951 O-RINGO-RING
-
312-861854 WASHERWASHER
-
411-35053 NUT, (.437-20)NUT, (.437-20)
-
522-18923 FITTINGFITTING
-
654-415825 CLAMP, NylonCLAMP, Nylon
-
732-8M0040618 HOSE, (54.00 Inches Bulk)HOSE, (54.00 Inches Bulk)
-
822-16739 CONNECTORCONNECTOR
-
9806193A48 BOTTLE ASSEMBLYBOTTLE ASSEMBLY
-
1036-19741A1 CAP ASSEMBLYCAP ASSEMBLY
-
1125-19737 O-RINGO-RING
-
1225-30613 O-RINGO-RING
-
13806193A48 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
1425-30613 O-RINGO-RING
-
1511-19740 NUTNUT
-
1667896 BRACKETBRACKET
-
1724-67908 SPRINGSPRING
-
1867905 RETAINERRETAINER
-
1912-58198 WASHER, (.188 x .438 x .050)WASHER, (.188 x .438 x .050)
-
2010-60605 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
2154-642351 J CLIPJ CLIP
-
2254-23567 CLIPCLIP
-
2310-60605 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
248M0084613 C WASHERC WASHER
