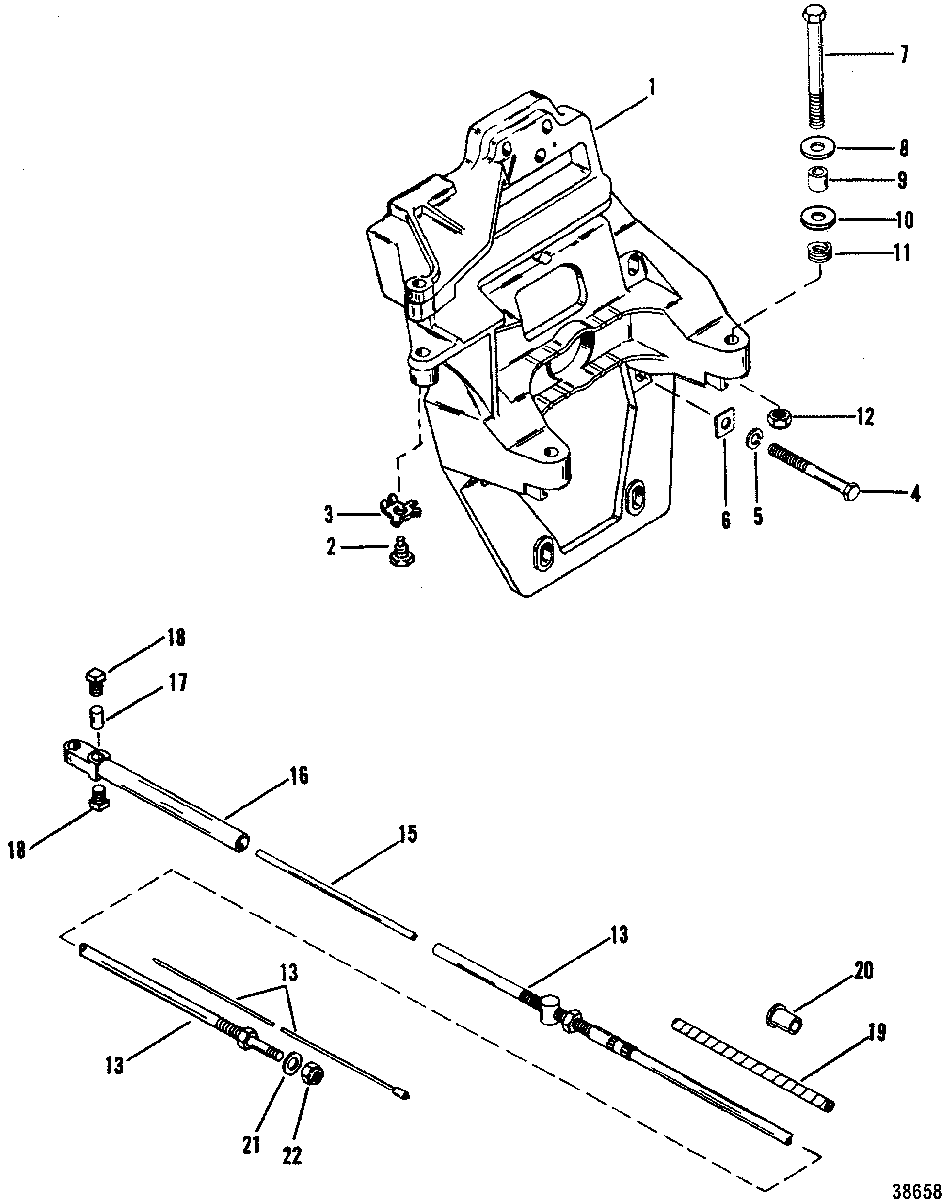

TRANSOM PLATE AND SHIFT CABLE для Mercruiser - BRAVO ONE 0B664190 THRU 0F729999
-
№АртикулНазвание
-
18M0138839 PLATE ASSEMBLY, TransomPLATE ASSEMBLY, Transom
-
210-8M0113173 BOLTBOLT
-
314-42254 WASHERWASHER
-
410-37268 SCREW, (.437-14 x 4.250)
(OLD DESIGN)SCREW, (.437-14 x 4.250)
(OLD DESIGN) -
513-32993 LOCKWASHER
(OLD DESIGN)LOCKWASHER
(OLD DESIGN) -
612-37271 WASHER
(OLD DESIGN)WASHER
(OLD DESIGN) -
710-97934 SCREW, (.500-20 x 5.370) SpecialSCREW, (.500-20 x 5.370) Special
-
812-35777 WASHER, (.5156 x 1.375 x .125) AluminumWASHER, (.5156 x 1.375 x .125) Aluminum
-
923-99299 SPACER, (.520 x .870 x .630)SPACER, (.520 x .870 x .630)
-
1012-32834 WASHER, (.9375 x 1.750 x .172)WASHER, (.9375 x 1.750 x .172)
-
1113-33734 LOCKWASHERLOCKWASHER
-
1211-863332 NUT, (.500-20)NUT, (.500-20)
-
13865437A02 CABLE ASSEMBLYCABLE ASSEMBLY
-
1532-17994 TUBE
(OLD DESIGN)TUBE
(OLD DESIGN) -
-43433A01 GUIDE KITGUIDE KIT
-
1643433 GUIDEGUIDE
-
1743436 ANCHORANCHOR
-
1810-20518 SET SCREW, (#8-32)SET SCREW, (#8-32)
-
1990412 WRAPPING, (1.16 Feet Bulk)WRAPPING, (1.16 Feet Bulk)
-
2014705 INSERTINSERT
-
2112-815472 WASHERWASHER
-
2211-54947 NUT, (.312-24)NUT, (.312-24)
-
2211-49910 NUT, (.375-24)NUT, (.375-24)
Все узлы модели:
- BELL HOUSING
- CONTINUITY KIT
- DRIVE UNIT CHART
- DRIVESHAFT HOUSING AND DRIVE GEARS
- GEAR HOUSING(BRAVO I)
- GEAR HOUSING(BRAVO II)
- GEAR HOUSING(BRAVO III)
- GIMBAL HOUSING
- GIMBAL HOUSING COVER
- GIMBAL RING AND STEERING LEVER
- HYDRAULIC PUMP
- HYDRAULIC PUMP AND BRACKET
- MERCATHODE KIT
- OIL RESERVOIR COMPONENTS(ROUND OIL BOTTLE)
- OIL RESERVOIR COMPONENTS(SQUARE OIL BOTTLE)
- POWER STEERING COMPONENTS(OLD DESIGN)
- POWER TRIM CYLINDER REPAIR KITS
- SERVICE AND SUPPORT MATERIAL
- • TRANSOM PLATE AND SHIFT CABLE
- TRIM CYLINDERS AND HYDRAULIC HOSES
- UNIVERSAL JOINT/SHIFTER COMPONENTS
