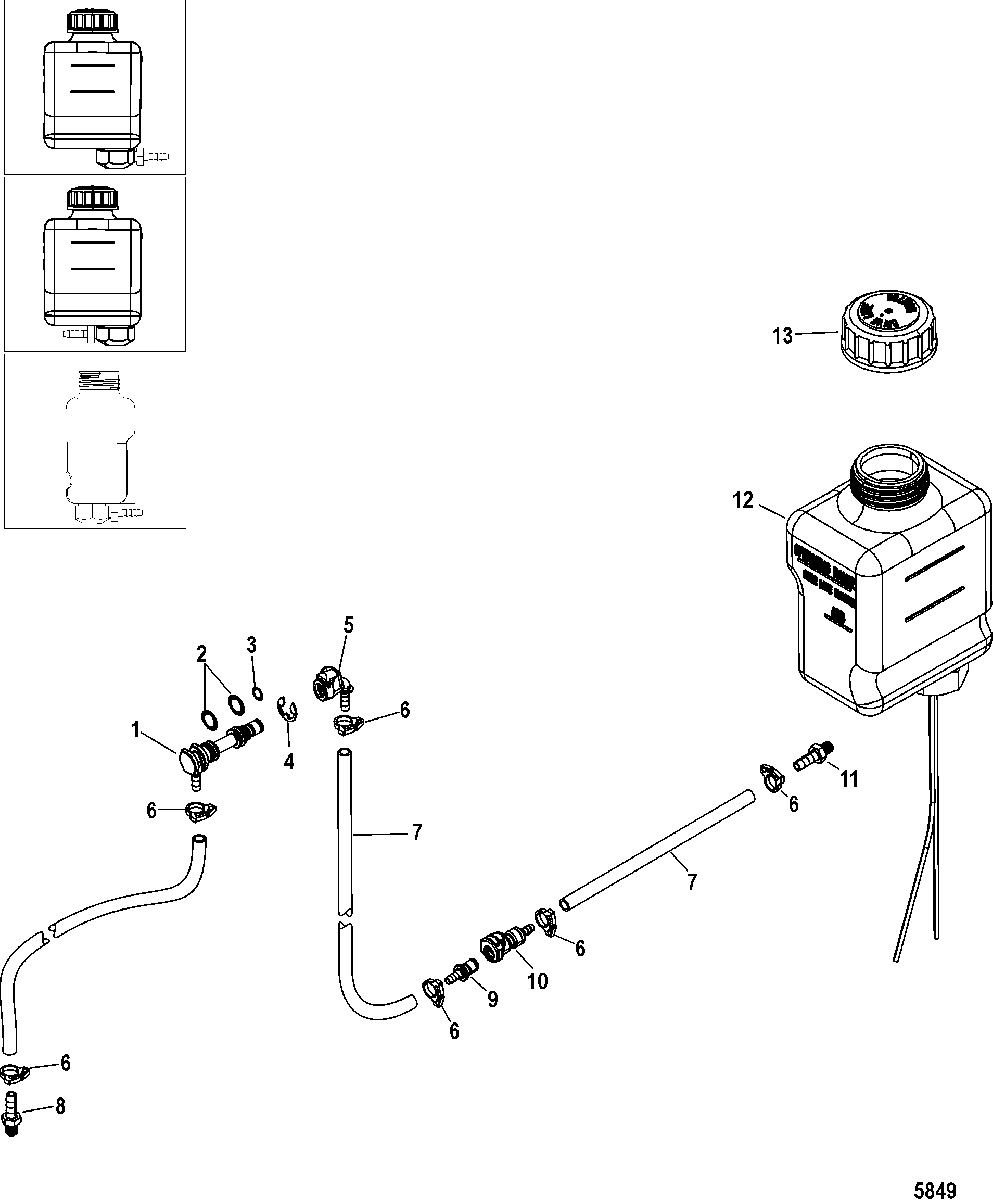

Gear Lube Monitor Components для Mercruiser - BRAVO THREE 0W250000 & Up
-
№АртикулНазвание
-
122-861150T02 FITTING ASSEMBLYFITTING ASSEMBLY
-
225-201951 O-RING, (.487 x .103)O-RING, (.487 x .103)
-
325-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
453-87843 E RINGE RING
-
522-861163 QUICK CONNECTOR, (90 Degree)QUICK CONNECTOR, (90 Degree)
-
654-415825 CLAMP, NylonCLAMP, Nylon
-
732-8M0040618 HOSE, (54.00 Inches Bulk), Cut to LengthHOSE, (54.00 Inches Bulk), Cut to Length
-
822-16739 CONNECTORCONNECTOR
-
922-865191 FITTING, Male, Male Quick ConnectFITTING, Male, Male Quick Connect
-
1022-865379 CONNECTOR, Female, Female Quick ConnectCONNECTOR, Female, Female Quick Connect
-
1122-808624 CONNECTORCONNECTOR
-
128M0075708 MONITOR ASSEMBLY, Oil
(Fitting Pointing Toward Right Side Viewed From Front)MONITOR ASSEMBLY, Oil
(Fitting Pointing Toward Right Side Viewed From Front) -
128M0075709 RESERVOIR
(Fitting Pointing Toward Left Side Viewed From Front)RESERVOIR
(Fitting Pointing Toward Left Side Viewed From Front) -
128M0075710 RESERVOIR
(Fitting Pointing Toward Front Side Viewed From Side)RESERVOIR
(Fitting Pointing Toward Front Side Viewed From Side) -
1336-8067271 CAP, Drive Lube MonitorCAP, Drive Lube Monitor
