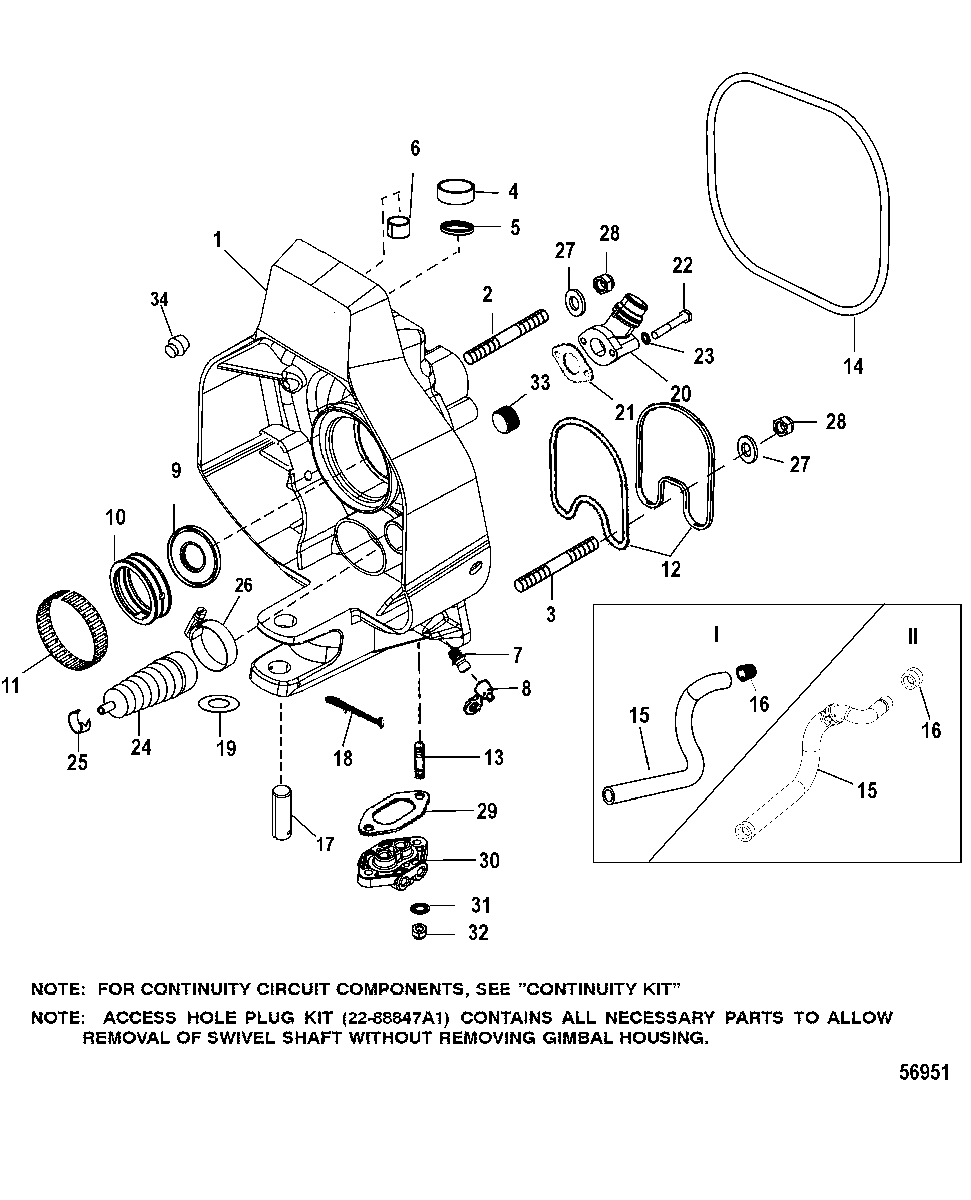

Gimbal Housing для Mercruiser - BRAVO THREE 0W250000 & Up
-
№АртикулНазвание
-
18M0096216 GIMBAL HOUSING ASSEMBLYGIMBAL HOUSING ASSEMBLY
-
18M0096217 GIMBAL HOUSING ASSEMBLY
(SEACORE)GIMBAL HOUSING ASSEMBLY
(SEACORE) -
216-56296 STUD, (.437-20 x 4.750)STUD, (.437-20 x 4.750)
-
216-866562 STUD, (.437-20 x 4.750) Stainless Steel
(SEACORE)STUD, (.437-20 x 4.750) Stainless Steel
(SEACORE) -
316-818834 STUD, (.437-20 x 4.250)STUD, (.437-20 x 4.250)
-
316-866563 STUD, (.437-20 x 4.250) Stainless Steel
(SEACORE)STUD, (.437-20 x 4.250) Stainless Steel
(SEACORE) -
423-983571 BUSHING, LowerBUSHING, Lower
-
526-8M2005029 SEAL, OilSEAL, Oil
-
512-866451 SEALSEAL
-
623-98356 BUSHING, UpperBUSHING, Upper
-
722-74036 FITTING, Grease
(Use with greased bearing)FITTING, Grease
(Use with greased bearing) -
710-8M2015913 PLUG, (.250-28 x .320)
(Use with non-greased bearing)PLUG, (.250-28 x .320)
(Use with non-greased bearing) -
819-77633Q LUBRICAPLUBRICAP
-
926-88416 SEAL, OilSEAL, Oil
-
1030-879194A01 BEARING ASSEMBLYBEARING ASSEMBLY
-
1161075 TOLERANCE RINGTOLERANCE RING
-
1241802 SEAL, Rubber, Without TabsSEAL, Rubber, Without Tabs
-
12NSS NOT SOLD SEPARATE, Seal With TabsNOT SOLD SEPARATE, Seal With Tabs
-
1316-56766 STUD, (.250-20/.250-28 x 1.380)STUD, (.250-20/.250-28 x 1.380)
-
1443713 SEALSEAL
-
1532-8M0090859 HOSE, Water
Design IHOSE, Water
Design I -
158M0062102 HOSE, Water
Design IIHOSE, Water
Design II -
1641674T INSERT
Design IINSERT
Design I -
1623-8M0057042 INSERT
Design IIINSERT
Design II -
1717-8M0073409 SWIVEL PIN, LowerSWIVEL PIN, Lower
-
1818-54929 COTTER PINCOTTER PIN
-
1912-32518 WASHERWASHER
-
20865470 HOUSING, Inlet, Male Quick ConnectHOUSING, Inlet, Male Quick Connect
-
2127-8M0109475 GASKETGASKET
-
2210-78038 SCREW, (.250-20 x 1.75)SCREW, (.250-20 x 1.75)
-
2210-73015 SCREW, (.250-20 x 1.75)SCREW, (.250-20 x 1.75)
-
2313-21272 LOCKWASHER, (.250)LOCKWASHER, (.250)
-
2313-78968 LOCKWASHER, Internal (.250)LOCKWASHER, Internal (.250)
-
2474639A2 BELLOWS ASSEMBLY, Shift CableBELLOWS ASSEMBLY, Shift Cable
-
2554-8M0090424 CLAMPCLAMP
-
2654-815504320 CLAMP, Worm GearCLAMP, Worm Gear
-
2712-34567 WASHERWASHER
-
2712-35935 WASHER, (.435 x .875 x .105) Stainless SteelWASHER, (.435 x .875 x .105) Stainless Steel
-
2811-82670815 NUT, (.437-20)NUT, (.437-20)
-
2927-988231 GASKETGASKET
-
308M0137703 MANIFOLD ASSEMBLYMANIFOLD ASSEMBLY
-
3113-78968 LOCKWASHER, Internal (.250)LOCKWASHER, Internal (.250)
-
3211-8267119 NUT, (.250-28)NUT, (.250-28)
-
3322-428611 FITTING, Pipe - Brass (.750-14)FITTING, Pipe - Brass (.750-14)
-
3419-861492 PLUG, Trim Switch WiresPLUG, Trim Switch Wires
-
-22-88847A1 PLUG KIT, Access Hole
(Access Hole Plug Kit contains all necessary parts to allow removal of swivel shaft without removing Gimbal Housing)PLUG KIT, Access Hole
(Access Hole Plug Kit contains all necessary parts to allow removal of swivel shaft without removing Gimbal Housing)
