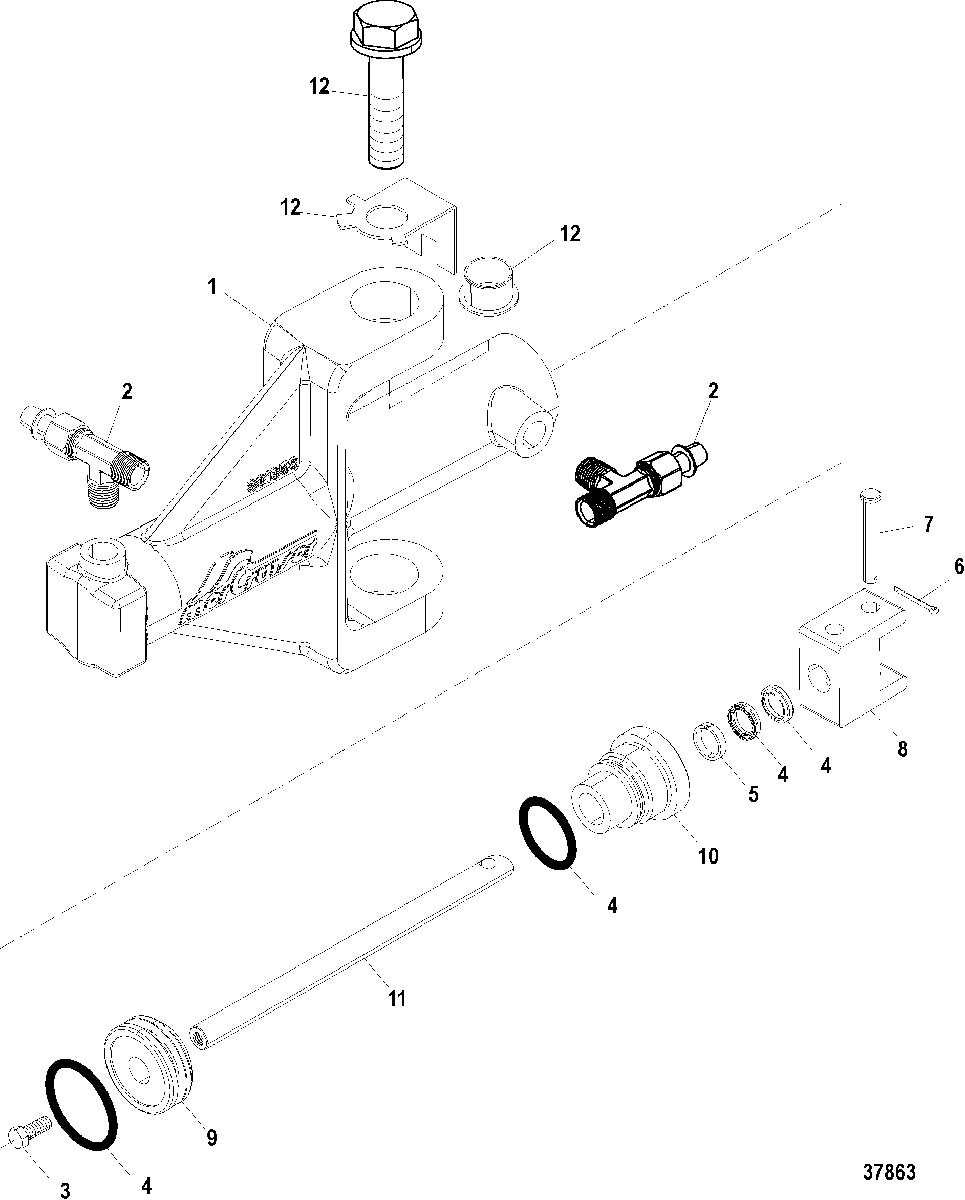

Compact Hydralic Steering Actuator для Mercruiser - BRAVO TWO 0M100001 THRU 0W249999
-
№АртикулНазвание
-
1861659A1 CYLINDER ASSEMBLY, Compact Hydraulic SteeringCYLINDER ASSEMBLY, Compact Hydraulic Steering
-
222-861971A2 FITTING ASSEMBLY, Bleeder ValveFITTING ASSEMBLY, Bleeder Valve
-
310-808027 SCREWSCREW
-
425-861965A1 SEAL KITSEAL KIT
-
5NSS NOT SOLD SEPARATE, BushingNOT SOLD SEPARATE, Bushing
-
618-46950 COTTER PINCOTTER PIN
-
717-15878 PIN, ClevisPIN, Clevis
-
88616601 CLEVISCLEVIS
-
9NSS NOT SOLD SEPARATE, PistonNOT SOLD SEPARATE, Piston
-
10NSS NOT SOLD SEPARATE, End CapNOT SOLD SEPARATE, End Cap
-
11NSS NOT SOLD SEPARATE, Clevis RodNOT SOLD SEPARATE, Clevis Rod
-
12862018A1 BUSHING KIT, PivotBUSHING KIT, Pivot
