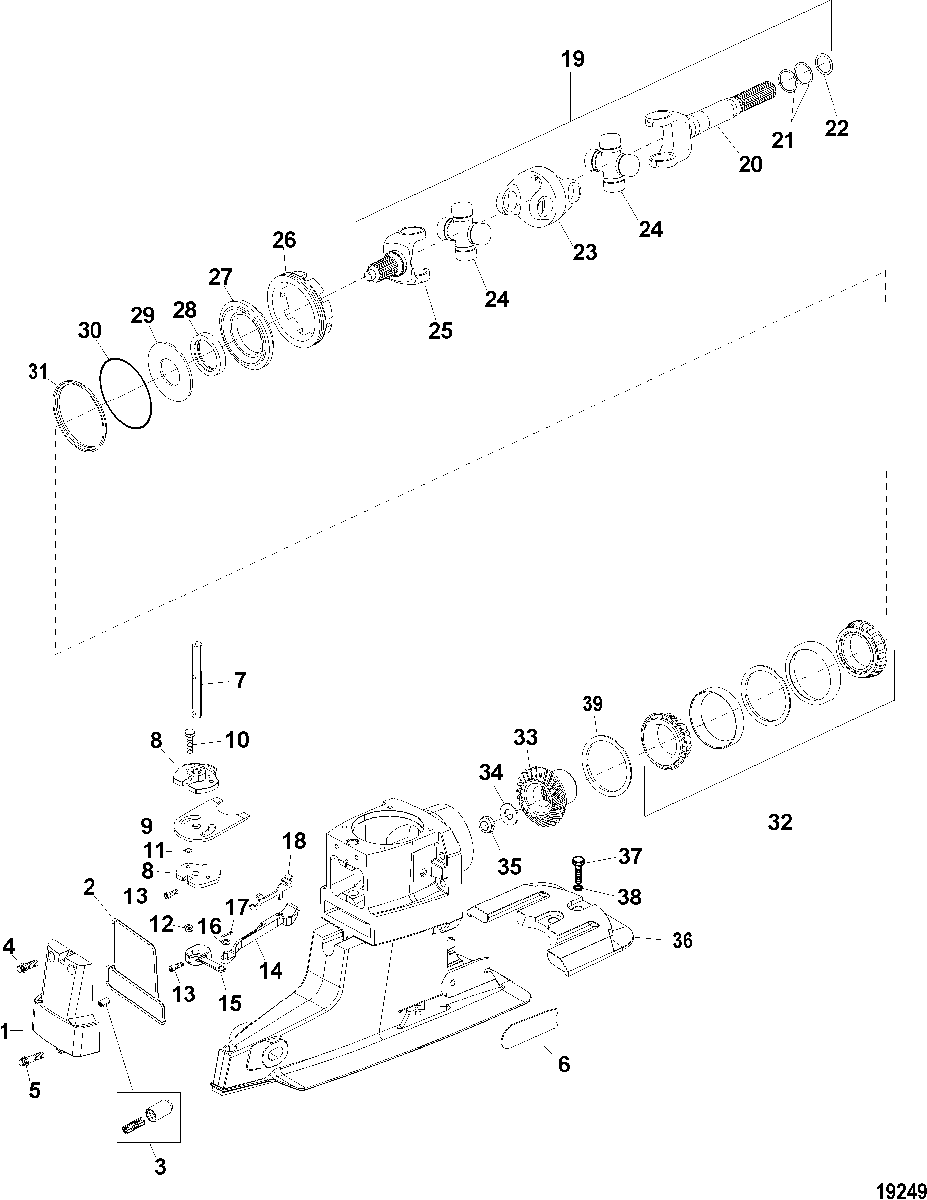

UNIVERSAL JOINT AND SHIFTER COMPONENTS(STANDARD) для Mercruiser - BRAVO TWO 0M100001 THRU 0W249999
-
№АртикулНазвание
-
112717A1 COVER ASSEMBLYCOVER ASSEMBLY
-
212708 SEALSEAL
-
3865711A02 DETENT ASSEMBLYDETENT ASSEMBLY
-
410-8M0113180 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
510-87158 SCREW, (.375-16 x 1.875)SCREW, (.375-16 x 1.875)
-
6805261A1 WEAR PAD KITWEAR PAD KIT
-
712711 SHAFTSHAFT
-
8806552A1 YOKE AND CAM ASSEMBLYYOKE AND CAM ASSEMBLY
-
9806552 YOKE, ShifterYOKE, Shifter
-
1010-805733 SCREW, (.250-28 x 1.00)SCREW, (.250-28 x 1.00)
-
1123-12706 SPACER, (.194 x .375)SPACER, (.194 x .375)
-
1211-8267139 NUT, (.250-28)NUT, (.250-28)
-
1310-38615 SCREW, (.250-28 x .750)SCREW, (.250-28 x .750)
-
14861175A2 SHIFT LINKAGE ASSEMBLY, High Bump Shift LeverSHIFT LINKAGE ASSEMBLY, High Bump Shift Lever
-
15NSS NOT SOLD SEPARATE, LEVER-ShiftNOT SOLD SEPARATE, LEVER-Shift
-
1612-20583 WASHERWASHER
-
1718-26953 COTTER PINCOTTER PIN
-
1886776 LATCHLATCH
-
19864244A2 UNIVERSAL JOINT ASSEMBLY, Gray
(Meritor Assembly) SN# 0M111207 & BelowUNIVERSAL JOINT ASSEMBLY, Gray
(Meritor Assembly) SN# 0M111207 & Below -
19864244A2 UNIVERSAL JOINT ASSEMBLY, Black
(GKN Assembly) SN# 0M111208 & UpUNIVERSAL JOINT ASSEMBLY, Black
(GKN Assembly) SN# 0M111208 & Up -
2059830A7 YOKE ASSEMBLY (COUPLER END)
SN# 0M111207 & BelowYOKE ASSEMBLY (COUPLER END)
SN# 0M111207 & Below -
20864244A01 YOKE ASSEMBLY (COUPLER END)
SN# 0M111208 & UpYOKE ASSEMBLY (COUPLER END)
SN# 0M111208 & Up -
2125-29845 O-RING, (.924 x .103)O-RING, (.924 x .103)
-
2225-35027 O-RING, (1.046)O-RING, (1.046)
-
23393831 SOCKET, Center
SN# 0M111207 & BelowSOCKET, Center
SN# 0M111207 & Below -
23865503T SOCKET
SN# 0M111208 & UpSOCKET
SN# 0M111208 & Up -
2475832T1 CROSS AND BEARING
SN# 0M111207 & BelowCROSS AND BEARING
SN# 0M111207 & Below -
24865496A02 CROSS AND BEARING
SN# 0M111208 & UpCROSS AND BEARING
SN# 0M111208 & Up -
2512784 YOKE (GEAR END)
SN# 0M111207 & BelowYOKE (GEAR END)
SN# 0M111207 & Below -
25864245T YOKE (GEAR END)
SN# 0M111208 & UpYOKE (GEAR END)
SN# 0M111208 & Up -
2611-92004 RING NUTRING NUT
-
2786779A1 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
2826-807006 SEAL, OilSEAL, Oil
-
2912-41613 WASHERWASHER
-
3025-861844 O-RINGO-RING
-
3186780 RINGRING
-
3231-8M0103472 BEARING ASSEMBLY, Tapered Roller
SN# 0M198372 & BelowBEARING ASSEMBLY, Tapered Roller
SN# 0M198372 & Below -
3231-8M0104358 BEARING ASSEMBLY, Tapered Roller
SN# 0M198373 & UpBEARING ASSEMBLY, Tapered Roller
SN# 0M198373 & Up -
3343-883473A2 GEAR SET, (32/27)
(SEE STERNDRIVE UNIT CHART FOR APPLICATION)GEAR SET, (32/27)
(SEE STERNDRIVE UNIT CHART FOR APPLICATION) -
3343-883476A2 GEAR SET, (29/27)
(SEE STERNDRIVE UNIT CHART FOR APPLICATION)GEAR SET, (29/27)
(SEE STERNDRIVE UNIT CHART FOR APPLICATION) -
3343-883479A2 GEAR SET, (30/23)
(SEE STERNDRIVE UNIT CHART FOR APPLICATION)GEAR SET, (30/23)
(SEE STERNDRIVE UNIT CHART FOR APPLICATION) -
3412-44539 WASHERWASHER
-
3511-22339 NUT, (.625-18)NUT, (.625-18)
-
3697-821630Q1 ANODE ASSEMBLYANODE ASSEMBLY
-
3710-65210 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
3813-35479 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3915-888927028 SHIM, (.028)
SN# 0M198373 & UpSHIM, (.028)
SN# 0M198373 & Up -
3915-888927029 SHIM, (.029)
SN# 0M198373 & UpSHIM, (.029)
SN# 0M198373 & Up -
3915-888927030 SHIM, (.030)
SN# 0M198373 & UpSHIM, (.030)
SN# 0M198373 & Up -
3915-888927031 SHIM, (.031)
SN# 0M198373 & UpSHIM, (.031)
SN# 0M198373 & Up -
3915-888927032 SHIM, (.032)
SN# 0M198373 & UpSHIM, (.032)
SN# 0M198373 & Up -
3915-888927033 SHIM, (.033)
SN# 0M198373 & UpSHIM, (.033)
SN# 0M198373 & Up -
3915-888927034 SHIM, (.034)
SN# 0M198373 & UpSHIM, (.034)
SN# 0M198373 & Up -
3915-888927035 SHIM, (.035)
SN# 0M198373 & UpSHIM, (.035)
SN# 0M198373 & Up -
3915-888927036 SHIM, (.036)
SN# 0M198373 & UpSHIM, (.036)
SN# 0M198373 & Up -
3915-888927037 SHIM, (.037)
SN# 0M198373 & UpSHIM, (.037)
SN# 0M198373 & Up -
3915-888927038 SHIM, (.038)
SN# 0M198373 & UpSHIM, (.038)
SN# 0M198373 & Up -
3915-888927039 SHIM, (.039)
SN# 0M198373 & UpSHIM, (.039)
SN# 0M198373 & Up -
3915-888927040 SHIM, (.040)
SN# 0M198373 & UpSHIM, (.040)
SN# 0M198373 & Up -
-26-16709A2 SEAL KITSEAL KIT
