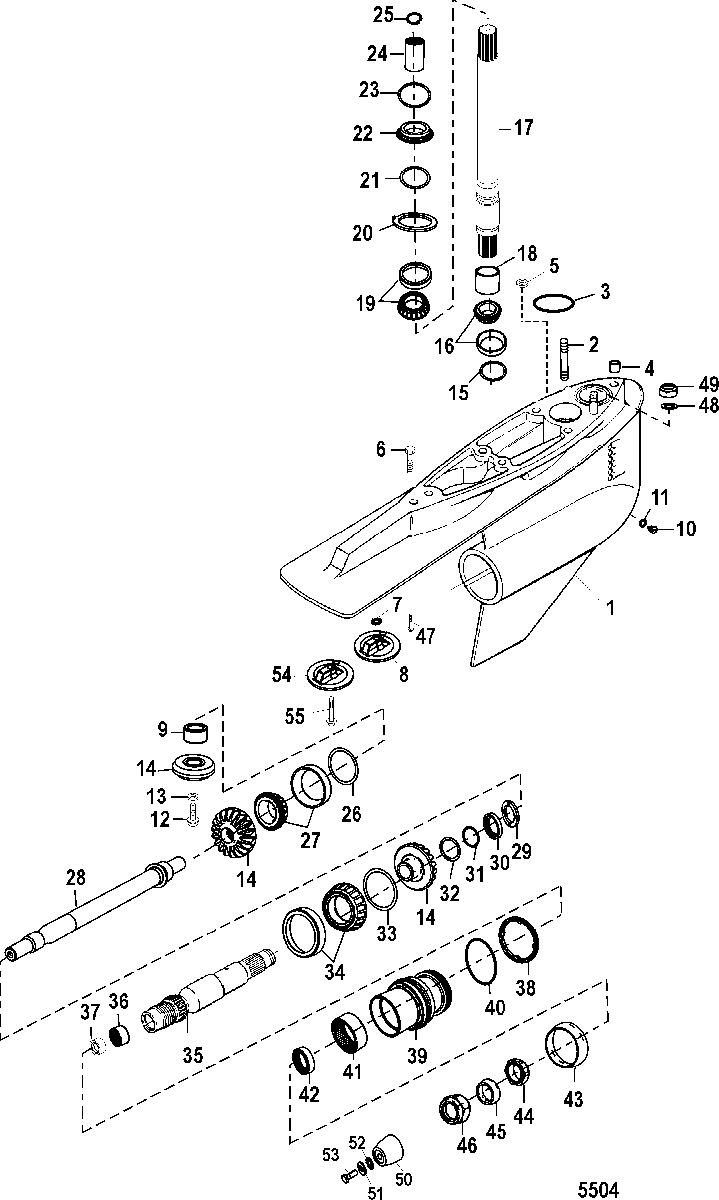

Gear Housing(Bravo Three) для Mercruiser - BRAVO X ONE 0W250000 & Up
-
№АртикулНазвание
-
-1656-8M0046733 GEAR HOUSING ASSEMBLY, Complete (15/19)
(1.36:1 and 1.50:1 Ratio)GEAR HOUSING ASSEMBLY, Complete (15/19)
(1.36:1 and 1.50:1 Ratio) -
-1656-8M0046733 GEAR HOUSING ASSEMBLY, Complete (15/19) Dual Water Pickup
(1.36:1 and 1.50:1 Ratio)GEAR HOUSING ASSEMBLY, Complete (15/19) Dual Water Pickup
(1.36:1 and 1.50:1 Ratio) -
-1656-8M0046733 GEAR HOUSING ASSEMBLY, Complete (15/19)
(1.36:1 and 1.50:1 Ratio) (Axius)GEAR HOUSING ASSEMBLY, Complete (15/19)
(1.36:1 and 1.50:1 Ratio) (Axius) -
-1656-8M0046735 GEAR HOUSING ASSEMBLY, Complete (18/25)
(1.65:1 Ratio)GEAR HOUSING ASSEMBLY, Complete (18/25)
(1.65:1 Ratio) -
-1656-8M0046735 GEAR HOUSING ASSEMBLY, Complete (18/25) Dual Water Pickup
(1.65:1 Ratio)GEAR HOUSING ASSEMBLY, Complete (18/25) Dual Water Pickup
(1.65:1 Ratio) -
-1656-8M0046735 GEAR HOUSING ASSEMBLY, Complete (18/25)
(1.65:1 Ratio) (Axius)GEAR HOUSING ASSEMBLY, Complete (18/25)
(1.65:1 Ratio) (Axius) -
-1656-8866J24 GEAR HOUSING ASSEMBLY, (18/25) Complete
(SEACORE)(1.65:1 Ratio)GEAR HOUSING ASSEMBLY, (18/25) Complete
(SEACORE)(1.65:1 Ratio) -
-1656-8866J24 GEAR HOUSING ASSEMBLY, (18/25) Complete
(SEACORE)(1.65:1 Ratio)(Axius)GEAR HOUSING ASSEMBLY, (18/25) Complete
(SEACORE)(1.65:1 Ratio)(Axius) -
-1656-8M0046738 GEAR HOUSING ASSEMBLY, Complete (16/27)
(1.81:1 - 2.00:1 and 2.20:1 Ratio)GEAR HOUSING ASSEMBLY, Complete (16/27)
(1.81:1 - 2.00:1 and 2.20:1 Ratio) -
-1656-8M0046738 GEAR HOUSING ASSEMBLY, Complete (16/27) Dual Water Pickup
(1.81:1 - 2.00:1 and 2.20:1 Ratio)GEAR HOUSING ASSEMBLY, Complete (16/27) Dual Water Pickup
(1.81:1 - 2.00:1 and 2.20:1 Ratio) -
-1656-8M0046738 GEAR HOUSING ASSEMBLY, Complete (16/27)
(1.81:1 - 2.00:1 and 2.20:1 Ratio)(Axius)GEAR HOUSING ASSEMBLY, Complete (16/27)
(1.81:1 - 2.00:1 and 2.20:1 Ratio)(Axius) -
-1656-8866J09 GEAR HOUSING ASSEMBLY, Complete (16/27)
(SEACORE)(1.81:1 - 2.00:1 and 2.20:1 Ratio)GEAR HOUSING ASSEMBLY, Complete (16/27)
(SEACORE)(1.81:1 - 2.00:1 and 2.20:1 Ratio) -
-1656-8866J09 GEAR HOUSING ASSEMBLY, Complete (16/27)
(SEACORE)(1.81:1 - 2.00:1 and 2.20:1 Ratio)(Axius)GEAR HOUSING ASSEMBLY, Complete (16/27)
(SEACORE)(1.81:1 - 2.00:1 and 2.20:1 Ratio)(Axius) -
-1656-8M0046682 GEAR HOUSING ASSEMBLY, (13/24), Complete
(2.43:1 Ratio)GEAR HOUSING ASSEMBLY, (13/24), Complete
(2.43:1 Ratio) -
-1656-8M0046682 GEAR HOUSING ASSEMBLY, Complete (13/24) Dual Water Pickup
(2.43:1 Ratio)GEAR HOUSING ASSEMBLY, Complete (13/24) Dual Water Pickup
(2.43:1 Ratio) -
-1656-8M0046682 GEAR HOUSING ASSEMBLY, (13/24) Complete
(2.43:1 Ratio)(Axius)GEAR HOUSING ASSEMBLY, (13/24) Complete
(2.43:1 Ratio)(Axius) -
-1656-8866J25 GEAR HOUSING ASSEMBLY, (13/24) Complete
(SEACORE)(2.43:1 Ratio)GEAR HOUSING ASSEMBLY, (13/24) Complete
(SEACORE)(2.43:1 Ratio) -
-1656-8866J25 GEAR HOUSING ASSEMBLY, (13/24) Complete
(SEACORE)(2.43:1 Ratio)(Axius)GEAR HOUSING ASSEMBLY, (13/24) Complete
(SEACORE)(2.43:1 Ratio)(Axius) -
11656-8M0046683 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
11656-8M0046683 GEAR HOUSING ASSEMBLY, Basic, Dual Water PickupGEAR HOUSING ASSEMBLY, Basic, Dual Water Pickup
-
11656-8866J30 GEAR HOUSING ASSEMBLY, Basic
(SEACORE)GEAR HOUSING ASSEMBLY, Basic
(SEACORE) -
216-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
325-33465 O-RINGO-RING
-
426-805344 SEAL, (.625 Outside Diameter)SEAL, (.625 Outside Diameter)
-
526-455771 SEALSEAL
-
610-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
713-806210 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
897-76214Q5 ANODE KITANODE KIT
-
931-86754T BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1022-8M0058389 PLUG KIT, Drain - Magnetic, MagneticPLUG KIT, Drain - Magnetic, Magnetic
-
1126-830749 SEALSEAL
-
1210-808027 SCREWSCREW
-
1312-805068 WASHERWASHER
-
1443-805448A1 GEAR SET, (15/19)
(1.36:1 and 1.50:1 Ratio)GEAR SET, (15/19)
(1.36:1 and 1.50:1 Ratio) -
1443-824517A1 GEAR SET, (18/25)
(1.65:1 Ratio)GEAR SET, (18/25)
(1.65:1 Ratio) -
1443-822535A1 GEAR SET, (16/27)
(1.81:1 - 2.00:1 and 2.20:1 Ratio)GEAR SET, (16/27)
(1.81:1 - 2.00:1 and 2.20:1 Ratio) -
1443-828336A1 GEAR SET, (13/24)
(2.43:1 Ratio)GEAR SET, (13/24)
(2.43:1 Ratio) -
1515-92914A1 SHIM KITSHIM KIT
-
1631-8M0103470 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
1745-858517A3 DRIVESHAFT ASSEMBLY, (16.085 Long)DRIVESHAFT ASSEMBLY, (16.085 Long)
-
1831-815901 RACE, BearingRACE, Bearing
-
1931-8M0103473 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
2014-86739 TAB WASHERTAB WASHER
-
2115-86749A1 SHIM KITSHIM KIT
-
2223-8M0046302 SPACERSPACER
-
2325-20826 O-RING, (2.230 x .139)O-RING, (2.230 x .139)
-
2488243A3 COUPLING ASSEMBLYCOUPLING ASSEMBLY
-
2553-88242 RING, RetainingRING, Retaining
-
2615-87157A1 SHIM KITSHIM KIT
-
2731-8M0103471 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
2844-865322T PROPELLER SHAFT, InnerPROPELLER SHAFT, Inner
-
2931-805322 BEARING, Caged Roller
SN# 0W217056 & BelowBEARING, Caged Roller
SN# 0W217056 & Below -
2931-865260 BEARING, Thrust
SN# 0W217057 & UpBEARING, Thrust
SN# 0W217057 & Up -
3023-8050721 BUSHINGBUSHING
-
3115-805627A1 SHIM ASSEMBLYSHIM ASSEMBLY
-
3253-8M2012170 RING, RetainingRING, Retaining
-
3253-8M2012170 RING, Retaining
(Axius)RING, Retaining
(Axius) -
3315-805078A1 SHIM ASSEMBLYSHIM ASSEMBLY
-
3431-8M0103477 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
3544-865315A02 PROPELLER SHAFT, Outer
SN# 0W217056 & BelowPROPELLER SHAFT, Outer
SN# 0W217056 & Below -
3544-865315A02 PROPELLER SHAFT, Outer
SN# 0W217057 & UpPROPELLER SHAFT, Outer
SN# 0W217057 & Up -
3631-57410 BEARING, RollerBEARING, Roller
-
3726-8M0033407 SEAL, OilSEAL, Oil
-
388M2013382 RETAINERRETAINER
-
39865876A01 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
39865876A03 CARRIER ASSEMBLY, Bearing
(SEACORE)CARRIER ASSEMBLY, Bearing
(SEACORE) -
4025-805331 O-RINGO-RING
-
4131-805079T BEARING, RollerBEARING, Roller
-
4226-861694 SEAL, Oil, OilSEAL, Oil, Oil
-
43805100 THRUST HUB, FrontTHRUST HUB, Front
-
4411-8M0105210 PROP NUT, FrontPROP NUT, Front
-
45805101T THRUST HUB, RearTHRUST HUB, Rear
-
4611-862907 PROP NUT, RearPROP NUT, Rear
-
4710-90084 SCREW, (.437-14 x 1.500)SCREW, (.437-14 x 1.500)
-
4812-861854 WASHER, (.453 x .750 x .032) Stainless SteelWASHER, (.453 x .750 x .032) Stainless Steel
-
4911-35053 NUT, (.437-20)NUT, (.437-20)
-
5097-865182Q01 ANODE KIT, Aluminum, Propeller ShaftANODE KIT, Aluminum, Propeller Shaft
-
5097-865182A02 ANODE KIT, Magnesium, Propeller ShaftANODE KIT, Magnesium, Propeller Shaft
-
5112-814806 WASHER, FlatWASHER, Flat
-
5213-72521 LOCKWASHER, Internal ToothLOCKWASHER, Internal Tooth
-
5310-865323 SCREWSCREW
-
5497-762144 ANODEANODE
-
5510-865321 SCREW, (.437-14 x 1.250)SCREW, (.437-14 x 1.250)
-
-26-76868A04 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-97-888761Q04 ANODE KIT, Aluminum
(Bravo III)ANODE KIT, Aluminum
(Bravo III) -
-97-888760Q04 ANODE KIT, Magnesium
(Bravo III)ANODE KIT, Magnesium
(Bravo III)
