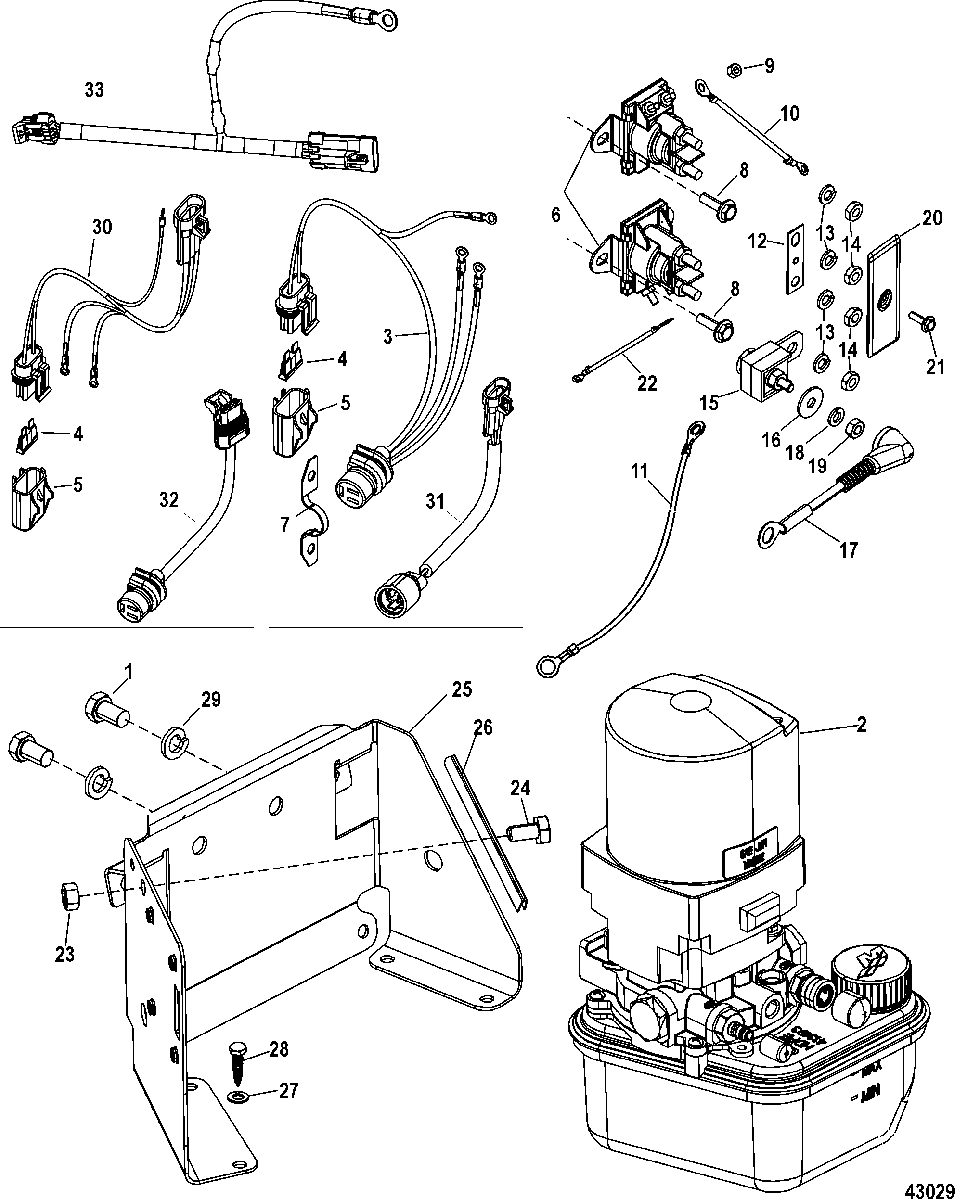

Trim Pump Assembly(Complete) для Mercruiser - BRAVO X ONE 0W250000 & Up
-
№АртикулНазвание
-
-865380A25 PUMP ASSEMBLY, Trim - CompletePUMP ASSEMBLY, Trim - Complete
-
-807378A2 PUMP ASSEMBLY, Trim - 24 Volt - Complete
(Used In Special Diesel Applications Only)PUMP ASSEMBLY, Trim - 24 Volt - Complete
(Used In Special Diesel Applications Only) -
110-98260 SCREW, (.375-16 x .620)SCREW, (.375-16 x .620)
-
2865380A13 PUMP/MOTOR ASSEMBLY, Trim - 12 VoltPUMP/MOTOR ASSEMBLY, Trim - 12 Volt
-
2807378T PUMP/MOTOR ASSEMBLY, 24 Volt
(Used In Special Diesel Applications Only)PUMP/MOTOR ASSEMBLY, 24 Volt
(Used In Special Diesel Applications Only) -
384-79147A08 HARNESS ASSEMBLY, With Molded ConnectorHARNESS ASSEMBLY, With Molded Connector
-
488-812619 FUSE, Yellow - 20 AmpereFUSE, Yellow - 20 Ampere
-
5828054 COVER, FuseCOVER, Fuse
-
689-96158T SOLENOID, 12 VoltSOLENOID, 12 Volt
-
689-807377T SOLENOID, 24 Volt
(Used In Special Diesel Applications Only)SOLENOID, 24 Volt
(Used In Special Diesel Applications Only) -
788075 RETAINERRETAINER
-
810-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
911-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
1084-86322A24 CABLE ASSEMBLY, (4.00 Inches)CABLE ASSEMBLY, (4.00 Inches)
-
1184-79138A9 CABLE ASSEMBLY, (6.00 Feet) Black-Negative, NegativeCABLE ASSEMBLY, (6.00 Feet) Black-Negative, Negative
-
1294275 LINK, ConnectorLINK, Connector
-
1313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1411-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
1588-79023T10 FUSE ASSEMBLY, 110 AmpereFUSE ASSEMBLY, 110 Ampere
-
1612-25908 WASHER, (.265 x .812 x .0625)WASHER, (.265 x .812 x .0625)
-
1784-79139A12 CABLE ASSEMBLY, Red-Positive, Battery - PositiveCABLE ASSEMBLY, Red-Positive, Battery - Positive
-
1813-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1911-21825 NUT, (.250-28)NUT, (.250-28)
-
2085-861680 INSULATORINSULATOR
-
2110-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
2284-86322A15 CABLE ASSEMBLY, (5.50 Inches) BlackCABLE ASSEMBLY, (5.50 Inches) Black
-
2311-68292 NUT, (.312-18)NUT, (.312-18)
-
2410-90285 SCREW, (.312-18 x .625)SCREW, (.312-18 x .625)
-
25862548A1 BRACKET KIT, Floor or Transom MountedBRACKET KIT, Floor or Transom Mounted
-
2658491 CHANNEL, Rubber (4.00 Inches)CHANNEL, Rubber (4.00 Inches)
-
2712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2810-59784 SCREW, (.250-10 x 1.00)SCREW, (.250-10 x 1.00)
-
2913-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3084-79147A09 HARNESS ASSEMBLY, With Packard Connector
(Includes Fuse and Cover)HARNESS ASSEMBLY, With Packard Connector
(Includes Fuse and Cover) -
3184-865770A02 HARNESS ASSEMBLY, Adaptor - Molded 3 Pin Female To Packard 3 Pin FemaleHARNESS ASSEMBLY, Adaptor - Molded 3 Pin Female To Packard 3 Pin Female
-
3284-865771A02 HARNESS ASSEMBLY, Adaptor - Molded 3 Pin Male To Packard 3 Pin MaleHARNESS ASSEMBLY, Adaptor - Molded 3 Pin Male To Packard 3 Pin Male
-
338M8025133 ADAPTOR KIT, Transient Voltage SuppressorADAPTOR KIT, Transient Voltage Suppressor
