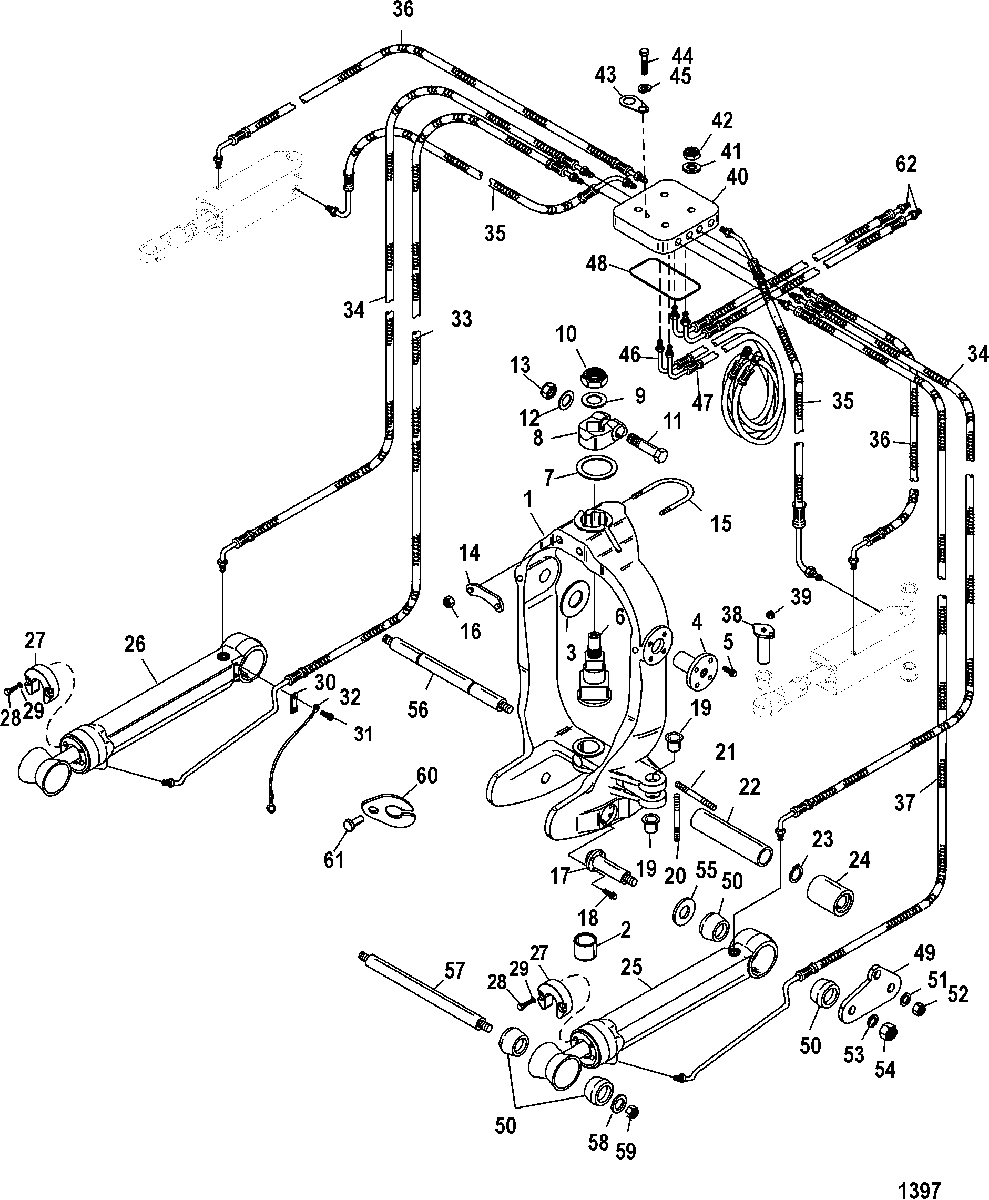

Gimbal Ring(Integrated Transom) для Mercruiser - BRAVO XZ ONE 0L914990 THRU 0M999999
-
№АртикулНазвание
-
1840532A02 GIMBAL RING ASSEMBLYGIMBAL RING ASSEMBLY
-
223-847638 BUSHINGBUSHING
-
312-41721 WASHERWASHER
-
48219971 PIN, Hinge, 4 BoltPIN, Hinge, 4 Bolt
-
510-840907 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
698230A1 SHAFT ASSEMBLYSHAFT ASSEMBLY
-
712-98548 WASHER, (1.125 )WASHER, (1.125 )
-
8866322T01 CLAMP, Top PinCLAMP, Top Pin
-
912-85344 WASHER, (.750 Inside Diameter)WASHER, (.750 Inside Diameter)
-
1011-8M2014641 NUT, (.750-16)NUT, (.750-16)
-
1110-807204 SCREW, (.437-20 x 2.00)SCREW, (.437-20 x 2.00)
-
1212-861854 WASHER, (.453 x .750 x .032) Stainless SteelWASHER, (.453 x .750 x .032) Stainless Steel
-
1311-8M2008293 NUT, (.437-20)NUT, (.437-20)
-
14816510T BRACKETBRACKET
-
1510-805164 U BOLTU BOLT
-
1611-862903 NUT, (.375-24)NUT, (.375-24)
-
17840728 PIN, MountingPIN, Mounting
-
1810-840907 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
1923-8159501 BUSHINGBUSHING
-
2016-8M0034435 STUD, (#10-32 x 1.00)STUD, (#10-32 x 1.00)
-
2116-8M0041668 STUD, (.437-14/.437-20 x 1.875)STUD, (.437-14/.437-20 x 1.875)
-
2223-840803 SPACERSPACER
-
2353-805272 RING, RetainingRING, Retaining
-
2423-840802 SPACERSPACER
-
258M0108286 TRIM CYLINDER ASSEMBLY, Starboard
(See Power Trim Cylinder Repair Kits for Breakdown)TRIM CYLINDER ASSEMBLY, Starboard
(See Power Trim Cylinder Repair Kits for Breakdown) -
268M0108285 TRIM CYLINDER ASSEMBLY, Port
(See Power Trim Cylinder Repair Kits for Breakdown)TRIM CYLINDER ASSEMBLY, Port
(See Power Trim Cylinder Repair Kits for Breakdown) -
2797-806189T1 ANODE ASSEMBLYANODE ASSEMBLY
-
2810-806290 SCREW, (#10-32 x .625)SCREW, (#10-32 x .625)
-
2913-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
NS87399A2 OVERHAUL KITOVERHAUL KIT
-
NS25-87400A2 SEAL KITSEAL KIT
-
3085060 PLATEPLATE
-
3110-85486 SCREW, (.250-20 x .380) Stainless SteelSCREW, (.250-20 x .380) Stainless Steel
-
3288238A13 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
3332-840557 HOSE, Trim Cylinder, PortHOSE, Trim Cylinder, Port
-
3432-840555 HOSE, HydraulicHOSE, Hydraulic
-
3532-840552 HOSE, HydraulicHOSE, Hydraulic
-
3632-840554 HOSE, HydraulicHOSE, Hydraulic
-
3732-840556 HOSE, Trim Cylinder, StarboardHOSE, Trim Cylinder, Starboard
-
38840832 PINPIN
-
3911-8267096 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
40840691 BLOCKBLOCK
-
4112-846673 WASHERWASHER
-
4211-826709109 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
43847022 PLATEPLATE
-
4410-68513 SCREW, (#10-32 x .375) Stainless SteelSCREW, (#10-32 x .375) Stainless Steel
-
4513-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
4632-840657 HOSE, Black, HydraulicHOSE, Black, Hydraulic
-
4732-840692 HOSE, Gray, HydraulicHOSE, Gray, Hydraulic
-
4825-805732 O-RING, (2.612 x .103)O-RING, (2.612 x .103)
-
49840744 PLATEPLATE
-
5023-807073 BUSHINGBUSHING
-
5112-842922 WASHER, (.450 x .750 x .060) Stainless SteelWASHER, (.450 x .750 x .060) Stainless Steel
-
5211-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
5312-49339 WASHER, (.8125)
(First Run Of Engines Used .4375 Inch Washer)WASHER, (.8125)
(First Run Of Engines Used .4375 Inch Washer) -
5411-35000 NUT, (.500-20) Stainless Steel
(First Run Of Engines Used .4375 Inch Nut)NUT, (.500-20) Stainless Steel
(First Run Of Engines Used .4375 Inch Nut) -
5512-44164 WASHERWASHER
-
5617-44167A1 PINPIN
-
5717-44166 PINPIN
-
5812-44163 WASHER, (.450 x 1.75 x .12)WASHER, (.450 x 1.75 x .12)
-
5911-859116 NUT, (.437-20)NUT, (.437-20)
-
6054-12078 CLAMPCLAMP
-
6110-28635 SCREW, (.250-20 x .620) Stainless SteelSCREW, (.250-20 x .620) Stainless Steel
-
6232-840656 HOSE, HydraulicHOSE, Hydraulic
