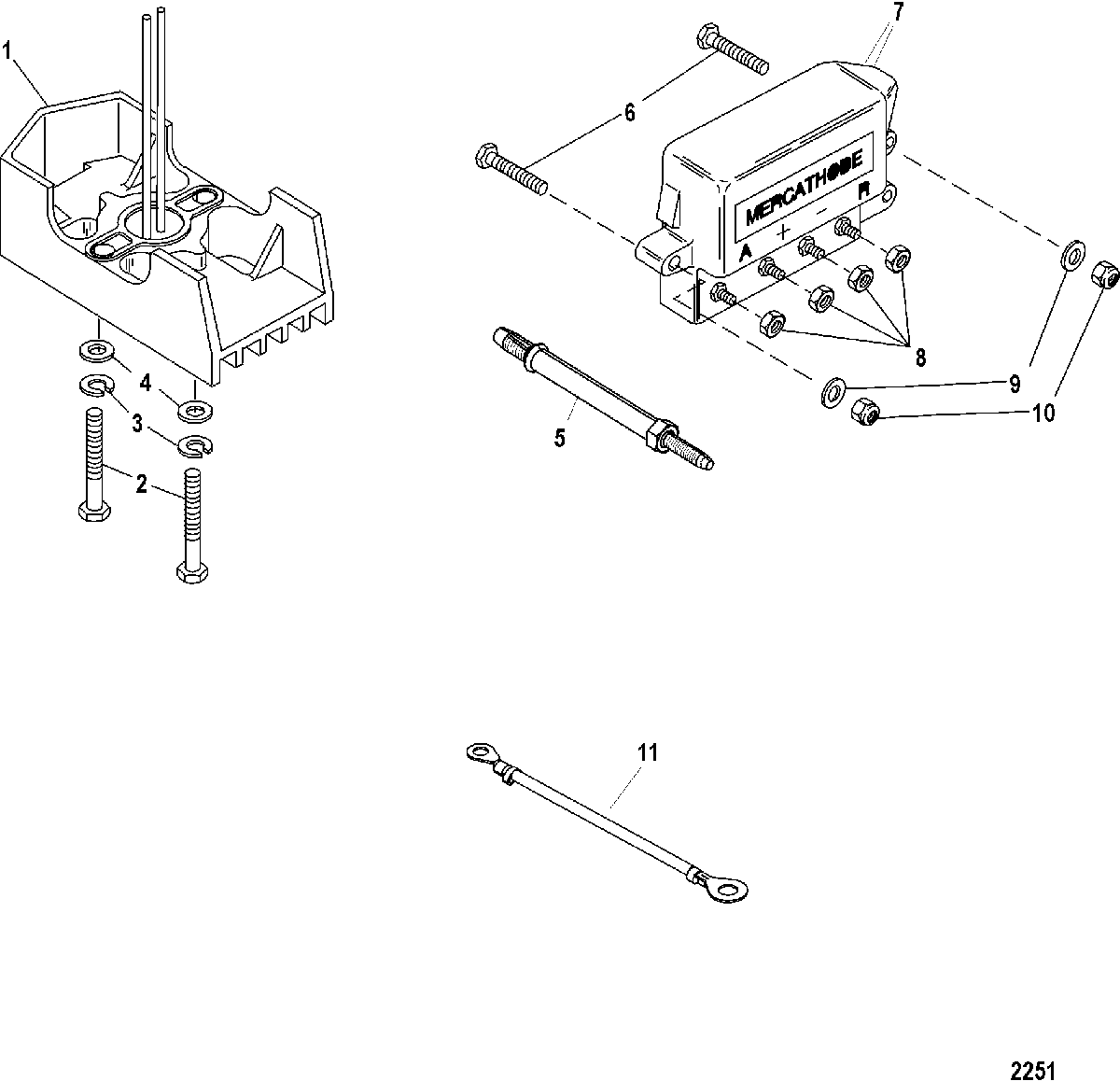

Mercathode Kit для Mercruiser - BRAVO XZ ONE 0L914990 THRU 0M999999
-
№АртикулНазвание
-
18M0085692 ELECTRODE ASSEMBLYELECTRODE ASSEMBLY
-
210-86885 SCREW, (.250-20 x 1.500) Stainless SteelSCREW, (.250-20 x 1.500) Stainless Steel
-
313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
516-805459 STUD, Mercathode MountingSTUD, Mercathode Mounting
-
610-72202 SCREW, (#10-32 x 1.25)SCREW, (#10-32 x 1.25)
-
610-45862 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
742600A09 CONTROLLER ASSEMBLYCONTROLLER ASSEMBLY
-
811-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
912-21273 WASHERWASHER
-
1011-46438 NUT, (#10-32)NUT, (#10-32)
-
1184-88543A3 CABLE ASSEMBLYCABLE ASSEMBLY
-
NS44574T CAPCAP
