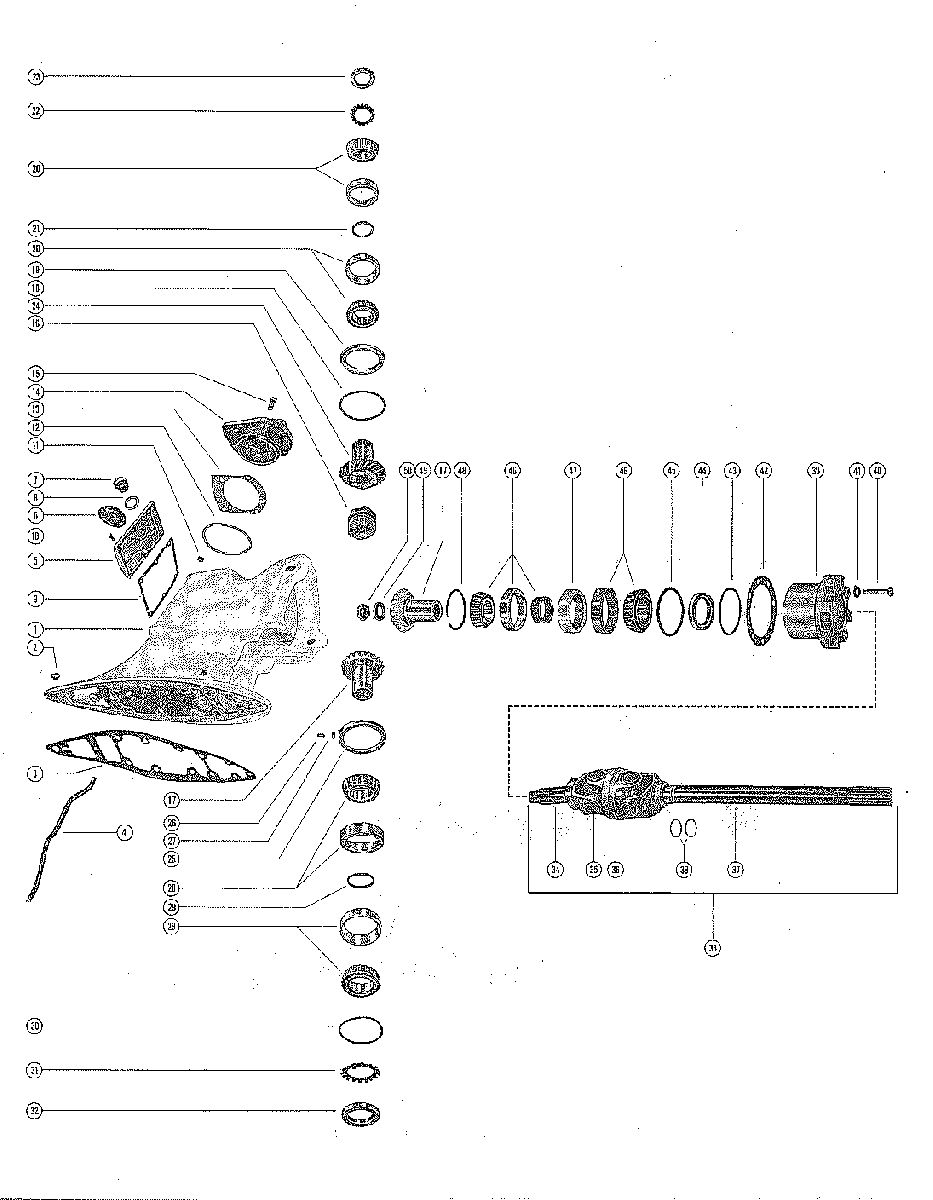

DRIVE SHAFT HOUSING ASSEMBLY AND GEAR ASSEMBLY для Mercruiser - II (1.78:1) 1968-1969 2398798 THRU 2671321
-
№АртикулНазвание
-
11544-3442A1 DRIVE SHAFT HOUSING ASSEMBLY (SEE D2 FOR BREAKDOWN)DRIVE SHAFT HOUSING ASSEMBLY (SEE D2 FOR BREAKDOWN)
-
219-47579 PLUG, TRIM TAB HOLE-DRIVE SHAFT HOUSINGPLUG, TRIM TAB HOLE-DRIVE SHAFT HOUSING
-
327-32277 GASKET, DRIVE SHAFT HOUSING TO GEAR HOUSINGGASKET, DRIVE SHAFT HOUSING TO GEAR HOUSING
-
432-35127 TUBE, OIL-DRIVE SHAFT HOUSINGTUBE, OIL-DRIVE SHAFT HOUSING
-
535231A1 COVER ASSEMBLY, SHIFT FORKCOVER ASSEMBLY, SHIFT FORK
-
626183A5 EMBLEM ASSEMBLY, SHIFT FORK COVEREMBLEM ASSEMBLY, SHIFT FORK COVER
-
722-320181 PLUG, OIL FILLER-SHIFT FORK COVERPLUG, OIL FILLER-SHIFT FORK COVER
-
825-35126 RING, OIL FILLER PLUGRING, OIL FILLER PLUG
-
927-32366 GASKET, SHIFT FORK COVERGASKET, SHIFT FORK COVER
-
1010-31716 SCREW, SHIFT FORK COVER TO DRIVE SHAFT HOUSING (5/8")SCREW, SHIFT FORK COVER TO DRIVE SHAFT HOUSING (5/8")
-
1122-73379 PLUG, PIPE-OIL CHANNEL-DRIVE SHAFT HOUSINGPLUG, PIPE-OIL CHANNEL-DRIVE SHAFT HOUSING
-
1225-32068 "O" RING, TOP COVER SEALING"O" RING, TOP COVER SEALING
-
1315-32363A1 SHIM, TOP COVER TO DRIVE SHAFT HOUSING (.002-3-3-10)SHIM, TOP COVER TO DRIVE SHAFT HOUSING (.002-3-3-10)
-
1449271 COVER, TOP-DRIVE SHAFT HOUSINGCOVER, TOP-DRIVE SHAFT HOUSING
-
1510-31985 SCREW, TOP COVER TO DRIVE SHAFT HOUSING (1 1/4")SCREW, TOP COVER TO DRIVE SHAFT HOUSING (1 1/4")
-
1652-49270 CLUTCH, SLIDING-SHIFT FORKCLUTCH, SLIDING-SHIFT FORK
-
1743-49265A2 GEAR ASSEMBLY, COMPLETE (INCLUDES FORWARD AND PINION GEAR)GEAR ASSEMBLY, COMPLETE (INCLUDES FORWARD AND PINION GEAR)
-
1815-49724A1 SHIM, WASHER TO DRIVE SHAFT HOUSING (.002-3-5-10-25)SHIM, WASHER TO DRIVE SHAFT HOUSING (.002-3-5-10-25)
-
1912-49273 WASHER, UPPER GEAR TAPERED ROLLER BEARINGWASHER, UPPER GEAR TAPERED ROLLER BEARING
-
2031-35928A2 TAPERED ROLLER BEARING ASSEMBLY, UPPER GEARTAPERED ROLLER BEARING ASSEMBLY, UPPER GEAR
-
2123-49267 SPACER, TAPERED ROLLER BEARING CUPSSPACER, TAPERED ROLLER BEARING CUPS
-
2214-32054 TAB WASHER, TAPERED ROLLER BEARING TO UPPER GEAR NUT
EARLY MODELS ONLYTAB WASHER, TAPERED ROLLER BEARING TO UPPER GEAR NUT
EARLY MODELS ONLY -
2311-32060 NUT, TAPERED ROLLER BEARING TO UPPER GEARNUT, TAPERED ROLLER BEARING TO UPPER GEAR
-
2443-49265 GEAR, REVERSEGEAR, REVERSE
-
2549268 RETAINER, LOWER GEAR TAPERED ROLLER BEARING CUPRETAINER, LOWER GEAR TAPERED ROLLER BEARING CUP
-
2610-36375 SCREW, SET-TAPERED ROLLER BEARING CUP RETAINERSCREW, SET-TAPERED ROLLER BEARING CUP RETAINER
-
2711-26484 NUT, JAM-TAPERED ROLLER BEARING CUP RETAINER SET SCREWNUT, JAM-TAPERED ROLLER BEARING CUP RETAINER SET SCREW
-
2831-35928A2 TAPERED ROLLER BEARING ASSEMBLY, LOWER GEARTAPERED ROLLER BEARING ASSEMBLY, LOWER GEAR
-
2923-49267 SPACER, TAPERED ROLLER BEARING CUPSSPACER, TAPERED ROLLER BEARING CUPS
-
3015-49264A1 SHIM, BEARING CUP TO DRIVE SHAFT HOUSING (.002-3-5-10-15)SHIM, BEARING CUP TO DRIVE SHAFT HOUSING (.002-3-5-10-15)
-
3114-32054 TAB WASHER, TAPERED ROLLER BEARING TO LOWER GEAR NUT
EARLY MODELS ONLYTAB WASHER, TAPERED ROLLER BEARING TO LOWER GEAR NUT
EARLY MODELS ONLY -
3211-32060 NUT, TAPERED ROLLER BEARING TO LOWER GEARNUT, TAPERED ROLLER BEARING TO LOWER GEAR
-
3336013A1 UNIVERSAL JOINT ASSEMBLY, PINION GEAR
15 1/2" "U" JOINT COUPLING YOKEUNIVERSAL JOINT ASSEMBLY, PINION GEAR
15 1/2" "U" JOINT COUPLING YOKE -
3352722A1 UNIVERSAL JOINT ASSEMBLY, PINION GEAR
11 1/2" "U" JOINT COUPLING YOKEUNIVERSAL JOINT ASSEMBLY, PINION GEAR
11 1/2" "U" JOINT COUPLING YOKE -
3439495 YOKE, UNIVERSAL JOINT (GEAR END)YOKE, UNIVERSAL JOINT (GEAR END)
-
3575832T1 CROSS AND BEARING ASSEMBLY, UNIVERSAL JOINTCROSS AND BEARING ASSEMBLY, UNIVERSAL JOINT
-
36393831 SOCKET, CENTER-UNIVERSAL JOINTSOCKET, CENTER-UNIVERSAL JOINT
-
3739496 YOKE, UNIVERSAL JOINT (COUPLING END)-15 1/2"YOKE, UNIVERSAL JOINT (COUPLING END)-15 1/2"
-
3752721 YOKE, UNIVERSAL JOINT (COUPLING END)-11 1/2"YOKE, UNIVERSAL JOINT (COUPLING END)-11 1/2"
-
3825-25439 "O" RING, UNIVERSAL JOINT"O" RING, UNIVERSAL JOINT
-
3949397 RETAINER, PINION GEAR ROLLER BEARINGRETAINER, PINION GEAR ROLLER BEARING
-
4010-32132 SCREW, RETAINER TO DRIVE SHAFT HOUSING (1 3/4")SCREW, RETAINER TO DRIVE SHAFT HOUSING (1 3/4")
-
4114-43589 TAB WASHER, RETAINER SCREWTAB WASHER, RETAINER SCREW
-
4215-32062A1 SHIM, RETAINER TO DRIVE SHAFT HOUSING (.002-3-5-10-25)SHIM, RETAINER TO DRIVE SHAFT HOUSING (.002-3-5-10-25)
-
4325-32069 "O" RING, ROLLER BEARING RETAINER"O" RING, ROLLER BEARING RETAINER
-
4426-823894 OIL SEAL, ROLLER BEARING RETAINEROIL SEAL, ROLLER BEARING RETAINER
-
4515-49412A1 SHIM, ROLLER BEARING CUP TO RETAINER (.002-3-5-10-25)SHIM, ROLLER BEARING CUP TO RETAINER (.002-3-5-10-25)
-
4631-49398A2 TAPERED ROLLER BEARING ASSEMBLY, PINION GEARTAPERED ROLLER BEARING ASSEMBLY, PINION GEAR
-
4723-49401 SPACER, PINION GEAR ROLLER BEARING CUPSSPACER, PINION GEAR ROLLER BEARING CUPS
-
4853-49900 RING, RETAINING-PINION GEAR ROLLER BEARING CUP TO RETAINERRING, RETAINING-PINION GEAR ROLLER BEARING CUP TO RETAINER
-
4912-32073 WASHER, PINION GEAR TO UNIVERSAL JOINT NUTWASHER, PINION GEAR TO UNIVERSAL JOINT NUT
-
5011-858869 NUT, PINION GEAR TO UNIVERSAL JOINTNUT, PINION GEAR TO UNIVERSAL JOINT
-
--92-271091 ADHESIVE COMPOUND (3 1/2 OUNCE KIT), EMBLEM FASTENINGADHESIVE COMPOUND (3 1/2 OUNCE KIT), EMBLEM FASTENING
