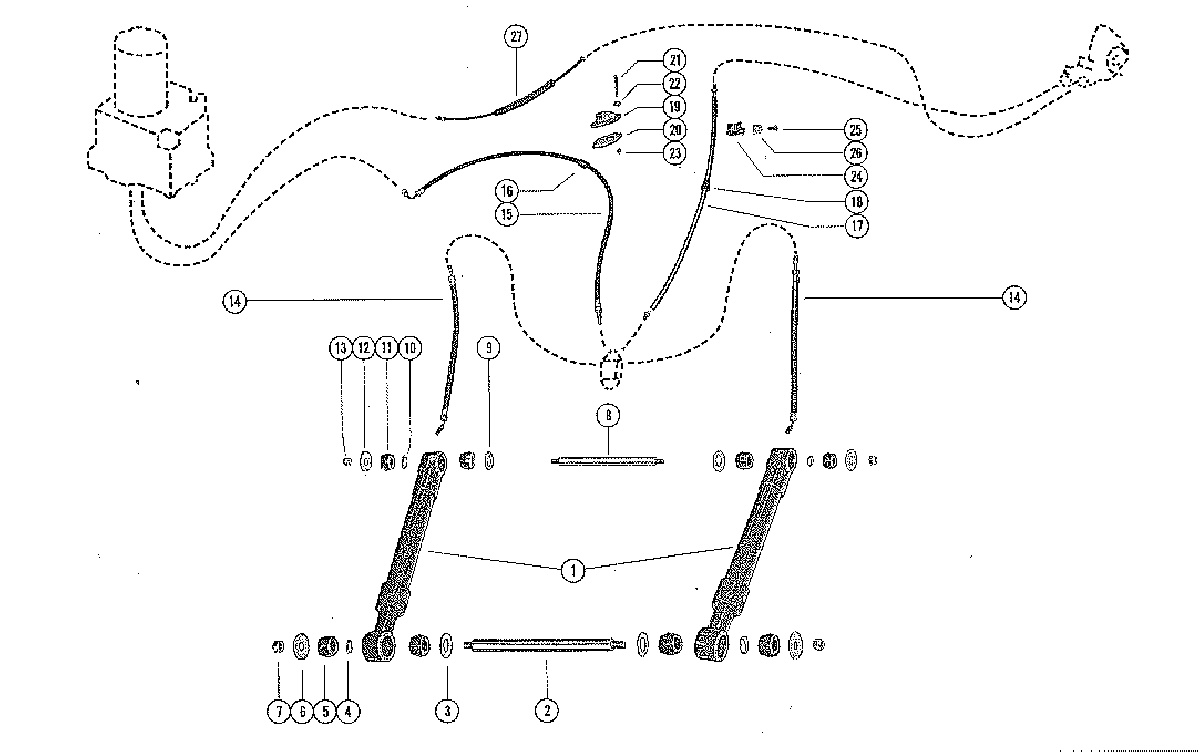

TRIM CYLINDER AND HYDRAULIC HOSES для Mercruiser - II (1.78:1) 1968-1969 2398798 THRU 2671321
-
№АртикулНазвание
-
147342A26 TRIM CYLINDER ASSEMBLY, COMPLETETRIM CYLINDER ASSEMBLY, COMPLETE
-
217-14874A1 PIN, ANCHOR-DRIVE SHAFT HOUSING (10 3/4")PIN, ANCHOR-DRIVE SHAFT HOUSING (10 3/4")
-
312-89664 WASHER, DRIVE SHAFT HOUSING ANCHOR PIN 959/64" I.D.)WASHER, DRIVE SHAFT HOUSING ANCHOR PIN 959/64" I.D.)
-
424-49593 SPRING, DRIVE SHAFT HOUSING ANCHOR PINSPRING, DRIVE SHAFT HOUSING ANCHOR PIN
-
523-90203 BUSHING, RUBBER-DRIVE SHAFT HOUSING ANCHOR PINBUSHING, RUBBER-DRIVE SHAFT HOUSING ANCHOR PIN
-
612-89665 WASHER, DRIVE SHAFT HOUSING ANCHOR PIN (33/64" I.D.)WASHER, DRIVE SHAFT HOUSING ANCHOR PIN (33/64" I.D.)
-
711-35000 NUT, DRIVE SHAFT HOUSING ANCHOR PINNUT, DRIVE SHAFT HOUSING ANCHOR PIN
-
817-49278 PIN, ANCHOR-TRIM CYLINDER TO GIMBAL RING (12 1/4")PIN, ANCHOR-TRIM CYLINDER TO GIMBAL RING (12 1/4")
-
912-89664 WASHER, GIMBAL RING ANCHOR PIN (59/64" I.D.)WASHER, GIMBAL RING ANCHOR PIN (59/64" I.D.)
-
1024-49593 SPRING, GIMBAL RING ANCHOR PINSPRING, GIMBAL RING ANCHOR PIN
-
1123-90203 BUSHING, RUBBER-GIMBAL RING ANCHOR PINBUSHING, RUBBER-GIMBAL RING ANCHOR PIN
-
1212-89665 WASHER, GIMBAL RING ANCHOR PIN (33/64" I.D.)WASHER, GIMBAL RING ANCHOR PIN (33/64" I.D.)
-
1311-35000 NUT, GIMBAL RING ANCHOR PINNUT, GIMBAL RING ANCHOR PIN
-
1432-86036Q HOSE, HYDRAULIC-CONNECTOR TO TRIM CYLINDER (12 1/2")HOSE, HYDRAULIC-CONNECTOR TO TRIM CYLINDER (12 1/2")
-
1532-49433 HOSE, HYDRAULIC-CONNECTOR TO HYDRAULIC PUMP (42")HOSE, HYDRAULIC-CONNECTOR TO HYDRAULIC PUMP (42")
-
1623-35977 GROMMET, RUBBER-HYDRAULIC HOSEGROMMET, RUBBER-HYDRAULIC HOSE
-
1732-49433 HOSE, HYDRAULIC-CONNECTOR TO REVERSE LOCK VALVE (42")-
NON TRANSOM MOUNTED ENGINEHOSE, HYDRAULIC-CONNECTOR TO REVERSE LOCK VALVE (42")-
NON TRANSOM MOUNTED ENGINE -
1732-53861 HOSE, HYDRAULIC-CONNECTOR TO REVERSE LOCK VALVE (49")
TRANSOM MOUNTED ENGINEHOSE, HYDRAULIC-CONNECTOR TO REVERSE LOCK VALVE (49")
TRANSOM MOUNTED ENGINE -
1823-35977 GROMMET, RUBBER-HYDRAULIC HOSEGROMMET, RUBBER-HYDRAULIC HOSE
-
1936135 COVER, INLET-TRANSOMCOVER, INLET-TRANSOM
-
2027-36079 GASKET, INLET COVERGASKET, INLET COVER
-
2110-33684 SCREW, INLET COVER TO TRANSOM (3")SCREW, INLET COVER TO TRANSOM (3")
-
2212-30971 WASHER, INLET COVER SCREWWASHER, INLET COVER SCREW
-
2311-826709109 NUT, INLET COVER SCREWNUT, INLET COVER SCREW
-
2454-22740 CLIP HYDRAULIC HOSE TO TRANSOM PLATE (3/8")CLIP HYDRAULIC HOSE TO TRANSOM PLATE (3/8")
-
2510-62568 SCREW, HYDRAULIC HOSE CLIPSCREW, HYDRAULIC HOSE CLIP
-
268M0084613 "D" WASHER, HYDRAULIC HOSE CLIP SCREW"D" WASHER, HYDRAULIC HOSE CLIP SCREW
-
2732-52951A1 TUBE ASS'Y, PUMP TO REVERSE LOCK VALVE (31 1/4") (#32-52951A1)TUBE ASS'Y, PUMP TO REVERSE LOCK VALVE (31 1/4") (#32-52951A1)
