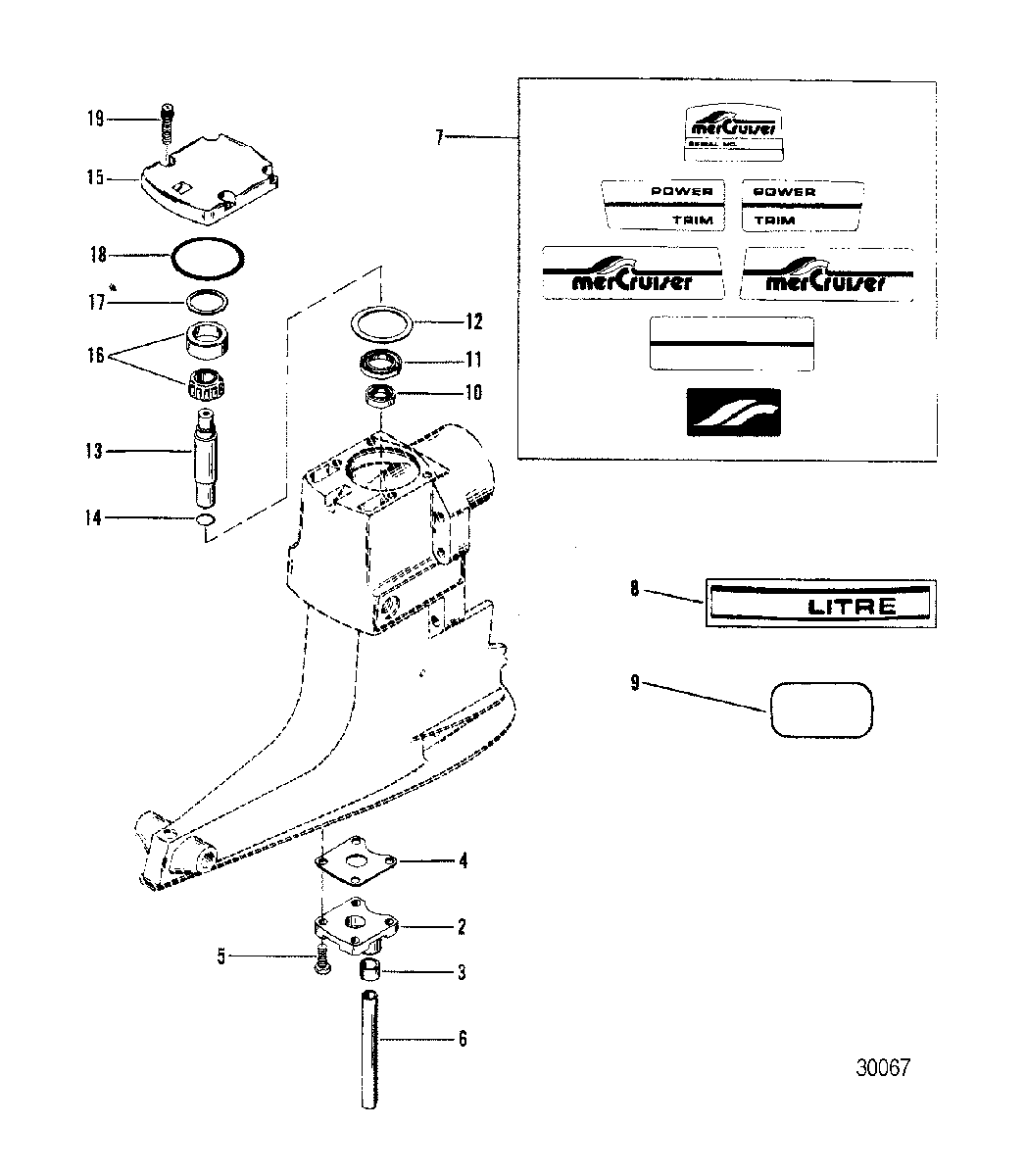

DRIVESHAFT HOUSING AND DRIVESHAFT для Mercruiser - R/MR/ALPHA ONE (Sterndrive) 1983-1990 6225577 THRU 0D469858
-
№АртикулНазвание
-
242724A3 COVER, ASSEMBLY, WATER POCKET COVERCOVER, ASSEMBLY, WATER POCKET COVER
-
326-36557 SEAL, RUBBER - WATER POCKET COVER
(Component of Gear Repair Kits No. 1-5)SEAL, RUBBER - WATER POCKET COVER
(Component of Gear Repair Kits No. 1-5) -
427-558101 GASKET, WATER POCKET COVER
(Component of Gear Repair Kits No. 1-5)GASKET, WATER POCKET COVER
(Component of Gear Repair Kits No. 1-5) -
510-28668 SCREW, (.250-20 x .875) Stainless Steel, WATER POCKET COVER TO DRIVE SHAFT HOUSINGSCREW, (.250-20 x .875) Stainless Steel, WATER POCKET COVER TO DRIVE SHAFT HOUSING
-
632-54236 TUBE, WATER POCKET COVERTUBE, WATER POCKET COVER
-
737-13682A90 DECAL SET (BLACK)DECAL SET (BLACK)
-
737-13682A90 DECAL SET (COUNTER ROTATION)DECAL SET (COUNTER ROTATION)
-
737-17906A88 DECAL SET (OYSTER)DECAL SET (OYSTER)
-
837-43699 DECAL, DRIVE SHAFT HOUSING (3.8LITRE)DECAL, DRIVE SHAFT HOUSING (3.8LITRE)
-
937-13722A10 DECAL SET (350/454 MAGNUM)DECAL SET (350/454 MAGNUM)
-
937-13722A11 DECAL SET, Engine Model (120/2.5L/140/3.0L/165/170/180/190)DECAL SET, Engine Model (120/2.5L/140/3.0L/165/170/180/190)
-
937-13722A12 DECAL SET (175/185/205/200/230/260)DECAL SET (175/185/205/200/230/260)
-
937-16416A87 DECAL (320/320 EFI)DECAL (320/320 EFI)
-
937-13722A13 DECAL SET, Engine Model (3.7L/3.7L-LX/4.3L/4.3L-LX/5.0L/5.0L-LX/5.7L)DECAL SET, Engine Model (3.7L/3.7L-LX/4.3L/4.3L-LX/5.0L/5.0L-LX/5.7L)
-
1026-965031 SEAL, Oil, DRIVE SHAFT HOUSING - LOWER
(Component of Gear Repair Kits No. 1-5)SEAL, Oil, DRIVE SHAFT HOUSING - LOWER
(Component of Gear Repair Kits No. 1-5) -
1126-32511 SEAL, Oil, GEAR CHAMBER - DRIVE SHAFT HOUSING
(Component of Gear Repair Kits No. 1-5)SEAL, Oil, GEAR CHAMBER - DRIVE SHAFT HOUSING
(Component of Gear Repair Kits No. 1-5) -
1215-36178A02 SHIM SET, BEARING CUP
(Component of Gear Repair Kits No. 1-5)SHIM SET, BEARING CUP
(Component of Gear Repair Kits No. 1-5) -
1345-55796 DRIVESHAFT, UPPERDRIVESHAFT, UPPER
-
1425-55801 O-RING, UPPER DRIVE SHAFT
(Component of Gear Repair Kits No. 1-5)O-RING, UPPER DRIVE SHAFT
(Component of Gear Repair Kits No. 1-5) -
1594998A4 COVER ASSEMBLY, TOP (BLACK)COVER ASSEMBLY, TOP (BLACK)
-
1631-61100A1 BEARING ASSEMBLY, DRIVE SHAFT
(CUP Dimension 1.939) (Component of Gear Repair Kits No. 1-5)BEARING ASSEMBLY, DRIVE SHAFT
(CUP Dimension 1.939) (Component of Gear Repair Kits No. 1-5) -
1631-32575T1 BEARING ASSEMBLY, DRIVE SHAFT
(CUP Dimension 1.78)BEARING ASSEMBLY, DRIVE SHAFT
(CUP Dimension 1.78) -
1715-45691A1 SHIM, BEARING CUP TO TOP COVER
(CUP Dimension 1.939) (Component of Gear Repair Kits No. 1-5)SHIM, BEARING CUP TO TOP COVER
(CUP Dimension 1.939) (Component of Gear Repair Kits No. 1-5) -
1715-32563A1 SHIM SET, BEARING CUP TO TOP COVER
(CUP Dimension 1.78)SHIM SET, BEARING CUP TO TOP COVER
(CUP Dimension 1.78) -
1825-32546 O-RING, TOP COVER SEALING
(Component of Gear Repair Kits No. 1-5)O-RING, TOP COVER SEALING
(Component of Gear Repair Kits No. 1-5) -
1910-8M0113180 SCREW, (.375-16 x 1.00), TOP COVERSCREW, (.375-16 x 1.00), TOP COVER
-
-26-32511A1 SEAL KITSEAL KIT
-
-43-803101T1 REPAIR KIT, Gear - Upper Driveshaft
(1.98 Ratio)(20/24 Gear)REPAIR KIT, Gear - Upper Driveshaft
(1.98 Ratio)(20/24 Gear) -
-43-803112T1 REPAIR KIT, Gear - Upper Driveshaft
(1.65 Ratio)(24/24 Gear)REPAIR KIT, Gear - Upper Driveshaft
(1.65 Ratio)(24/24 Gear) -
-43-803114T1 REPAIR KIT, Gear - Upper Driveshaft
(1.84 Ratio)(17/19 Gear)REPAIR KIT, Gear - Upper Driveshaft
(1.84 Ratio)(17/19 Gear) -
-43-803115T1 REPAIR KIT, Gear - Upper Driveshaft
(1.32 Ratio)(16/20 Gear)REPAIR KIT, Gear - Upper Driveshaft
(1.32 Ratio)(16/20 Gear) -
-43-803116T1 REPAIR KIT, Gear - Upper Driveshaft
(1.50 Ratio)(20/22 Gear)REPAIR KIT, Gear - Upper Driveshaft
(1.50 Ratio)(20/22 Gear)
