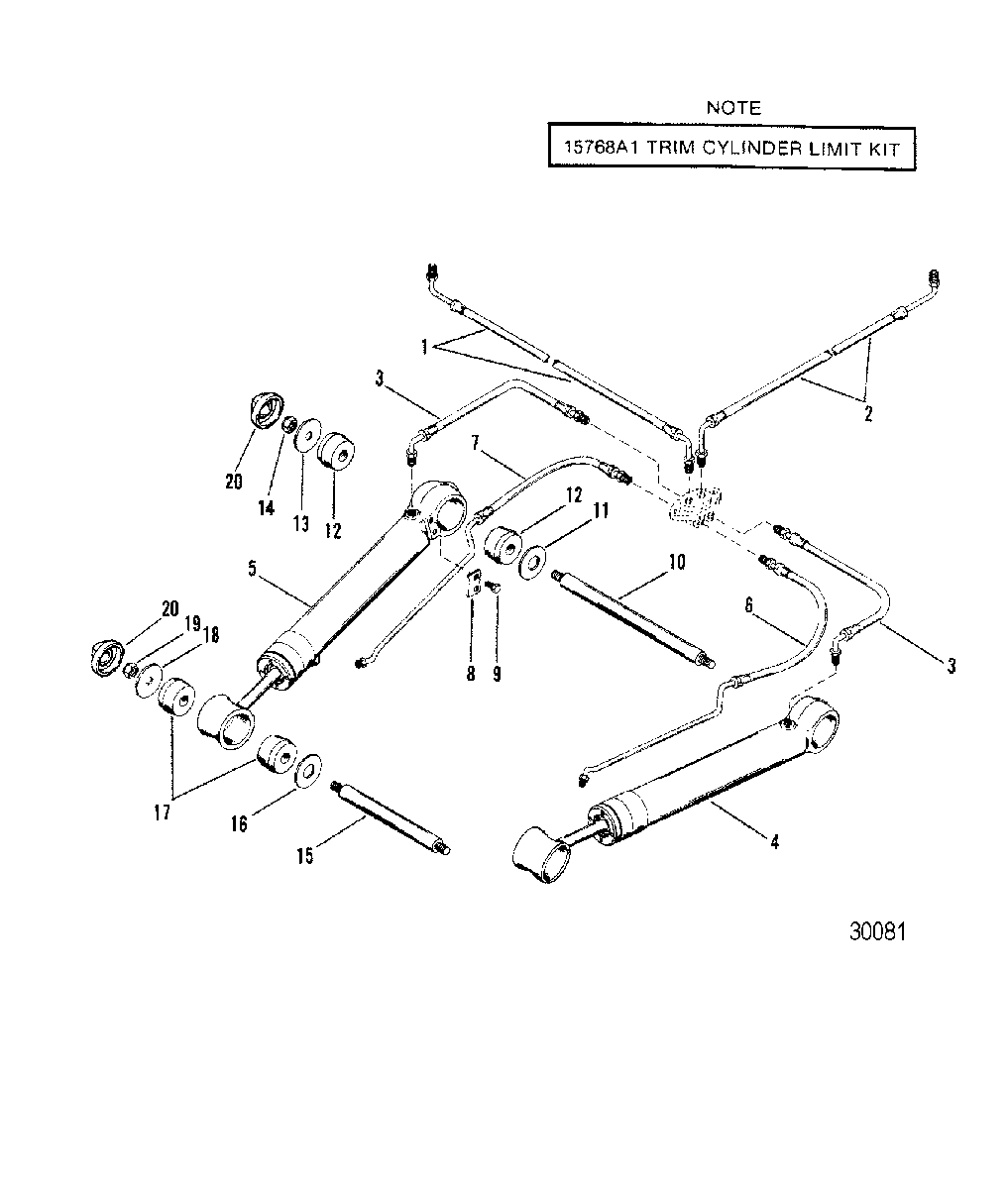

TRIM CYLINDERS AND HYDRAULIC HOSES для Mercruiser - R/MR/ALPHA ONE (Sterndrive) 1983-1990 6225577 THRU 0D469858
-
№АртикулНазвание
-
132-861127 HOSE, Black, HYDRAULIC - CONNECTOR TO PUMP (BLACK)HOSE, Black, HYDRAULIC - CONNECTOR TO PUMP (BLACK)
-
232-861128 HOSE, Gray, HYDRAULIC - CONNECTOR TO PUMP (GRAY)HOSE, Gray, HYDRAULIC - CONNECTOR TO PUMP (GRAY)
-
332-99904Q HOSE, HYDRAULIC - TRIM CYLINDER TO CONNECTORHOSE, HYDRAULIC - TRIM CYLINDER TO CONNECTOR
-
498704A3 TRIM CYLINDER ASSEMBLY (STARBOARD)
SEE DRIVE UNIT CHART REF.# 1-10TRIM CYLINDER ASSEMBLY (STARBOARD)
SEE DRIVE UNIT CHART REF.# 1-10 -
48M0118961 TRIM CYLINDER ASSEMBLY (STARBOARD) (BLACK)
SEE DRIVE UNIT CHART REF.# 1-11TRIM CYLINDER ASSEMBLY (STARBOARD) (BLACK)
SEE DRIVE UNIT CHART REF.# 1-11 -
598703A3 TRIM CYLINDER (PORT)
SEE DRIVE UNIT CHART REF.# 1-11TRIM CYLINDER (PORT)
SEE DRIVE UNIT CHART REF.# 1-11 -
58M0118960 TRIM CYLINDER ASSEMBLY (PORT) (BLACK)
SEE DRIVE UNIT CHART REF.# 1-11TRIM CYLINDER ASSEMBLY (PORT) (BLACK)
SEE DRIVE UNIT CHART REF.# 1-11 -
--87399A2 OVERHAUL KIT, TRIM CYLINDEROVERHAUL KIT, TRIM CYLINDER
-
--25-87400A2 SEAL KIT, TRIM CYLINDERSEAL KIT, TRIM CYLINDER
-
632-864589 HOSE, Trim Cylinder (STARBOARD)
SEE DRIVE UNIT CHART REF.# 1-11HOSE, Trim Cylinder (STARBOARD)
SEE DRIVE UNIT CHART REF.# 1-11 -
632-864960 HOSE, Trim Cylinder (STARBOARD)
SEE DRIVE UNIT CHART REF.# 1-11HOSE, Trim Cylinder (STARBOARD)
SEE DRIVE UNIT CHART REF.# 1-11 -
732-864588 HOSE, Trim Cylinder (PORT)
SEE DRIVE UNIT CHART REF.# 1-11HOSE, Trim Cylinder (PORT)
SEE DRIVE UNIT CHART REF.# 1-11 -
732-864959 HOSE, Trim Cylinder (PORT)
SEE DRIVE UNIT CHART REF.# 1-11HOSE, Trim Cylinder (PORT)
SEE DRIVE UNIT CHART REF.# 1-11 -
885060 PLATE, CLAMPING - TRIM CYLINER HOSEPLATE, CLAMPING - TRIM CYLINER HOSE
-
910-85486 SCREW, (.250-20 x .380) Stainless Steel, CLAMPING PLATESCREW, (.250-20 x .380) Stainless Steel, CLAMPING PLATE
-
1017-14873A1 PIN ASSEMBLY, FRONT ACNHORPIN ASSEMBLY, FRONT ACNHOR
-
1112-85058 WASHER, FRONT PINWASHER, FRONT PIN
-
1223-99291T BUSHING, RUBBERBUSHING, RUBBER
-
1312-85057 WASHER, FRONT PIN 3/8-24 THREADSWASHER, FRONT PIN 3/8-24 THREADS
-
1312-44163 WASHER, (.450 x 1.75 x .12), FRONT PINWASHER, (.450 x 1.75 x .12), FRONT PIN
-
1411-862903 NUT, (.375-24), FRONT PINNUT, (.375-24), FRONT PIN
-
1411-859116 NUT, (.437-20), FRONT PINNUT, (.437-20), FRONT PIN
-
1517-14872A1 PIN, REAR ANCHOR 3/8-24 THREADSPIN, REAR ANCHOR 3/8-24 THREADS
-
1517-14872A1 PIN ASSEMBLY, REAR ANCHOR 7/16-20 THREADSPIN ASSEMBLY, REAR ANCHOR 7/16-20 THREADS
-
1612-85058 WASHER, REAR PIN 3/8-24 THREADSWASHER, REAR PIN 3/8-24 THREADS
-
1612-85058 WASHER, REAR PIN 7/16-20 THREADSWASHER, REAR PIN 7/16-20 THREADS
-
1723-99291T BUSHING, RUBBERBUSHING, RUBBER
-
1812-85057 WASHER, REAR PIN 3/8-24 THREADSWASHER, REAR PIN 3/8-24 THREADS
-
1812-44163 WASHER, (.450 x 1.75 x .12), REAR PINWASHER, (.450 x 1.75 x .12), REAR PIN
-
1911-862903 NUT, (.375-24), REAR PINNUT, (.375-24), REAR PIN
-
1911-859116 NUT, (.437-20), REAR PINNUT, (.437-20), REAR PIN
-
2019-14842 CAP, FRONT PIN 7/16-20 THREADS (BLACK)CAP, FRONT PIN 7/16-20 THREADS (BLACK)
-
2019-14842 CAP, REAR PIN 7/16-20 THREADS (BLACK)CAP, REAR PIN 7/16-20 THREADS (BLACK)
