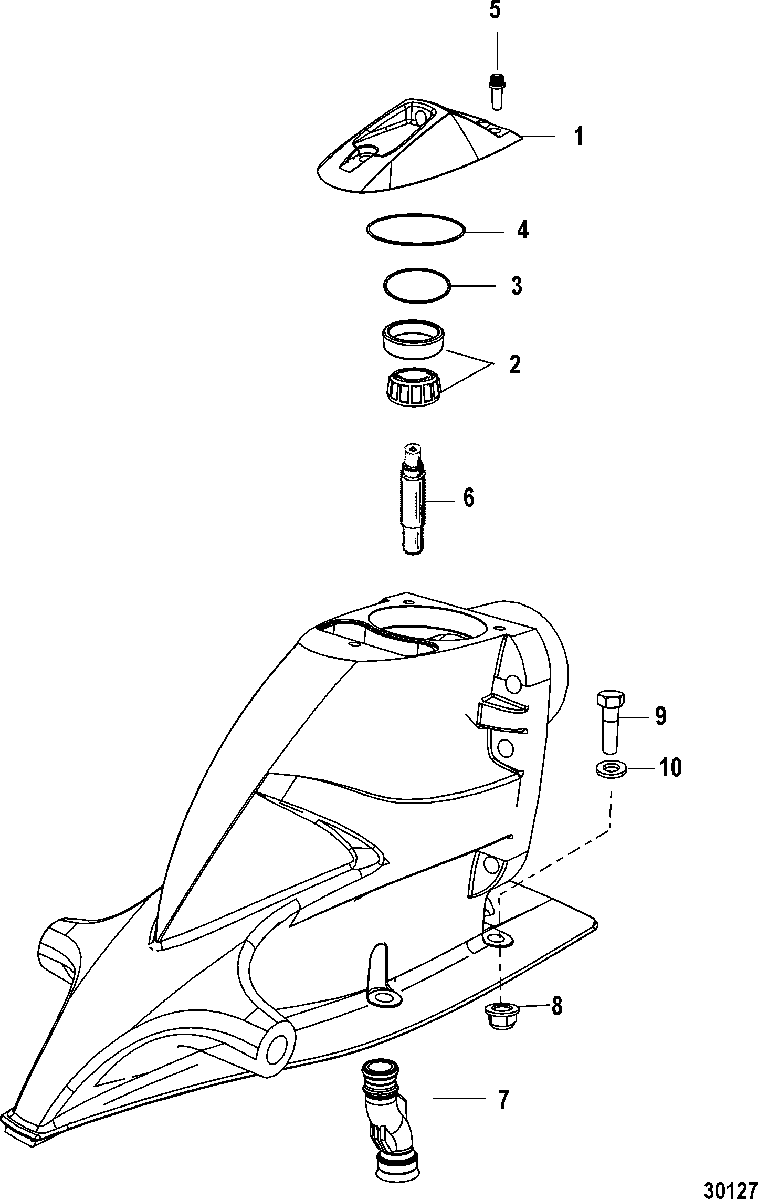

Driveshaft Housing and Driveshaft для Mercruiser - VAZER DRIVE 0W995000 & Up
-
№АртикулНазвание
-
-1500-866447A06 HOUSING ASSEMBLY, Driveshaft - Complete (2.58:1)HOUSING ASSEMBLY, Driveshaft - Complete (2.58:1)
-
-1500-866447A08 HOUSING ASSEMBLY, Driveshaft - Complete (2.77:1)HOUSING ASSEMBLY, Driveshaft - Complete (2.77:1)
-
-1500-866447A04 HOUSING, Driveshaft - BasicHOUSING, Driveshaft - Basic
-
1866765A02 COVER ASSEMBLYCOVER ASSEMBLY
-
231-32575T1 BEARING ASSEMBLYBEARING ASSEMBLY
-
315-32563A1 SHIM SETSHIM SET
-
425-32546 O-RINGO-RING
-
510-8M0113180 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
645-557961 DRIVESHAFT, UpperDRIVESHAFT, Upper
-
78M2000892 TUBE ASSEMBLY, WaterTUBE ASSEMBLY, Water
-
811-859135 NUT, (.437-20) Brass/Nickel PlatedNUT, (.437-20) Brass/Nickel Plated
-
910-816601 SCREW, (.437-20 x 1.500)SCREW, (.437-20 x 1.500)
-
1012-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
-26-88397A02 SEAL KIT, Driveshaft HousingSEAL KIT, Driveshaft Housing
-
-NSS NOT SOLD SEPARATE, Decal SetNOT SOLD SEPARATE, Decal Set
