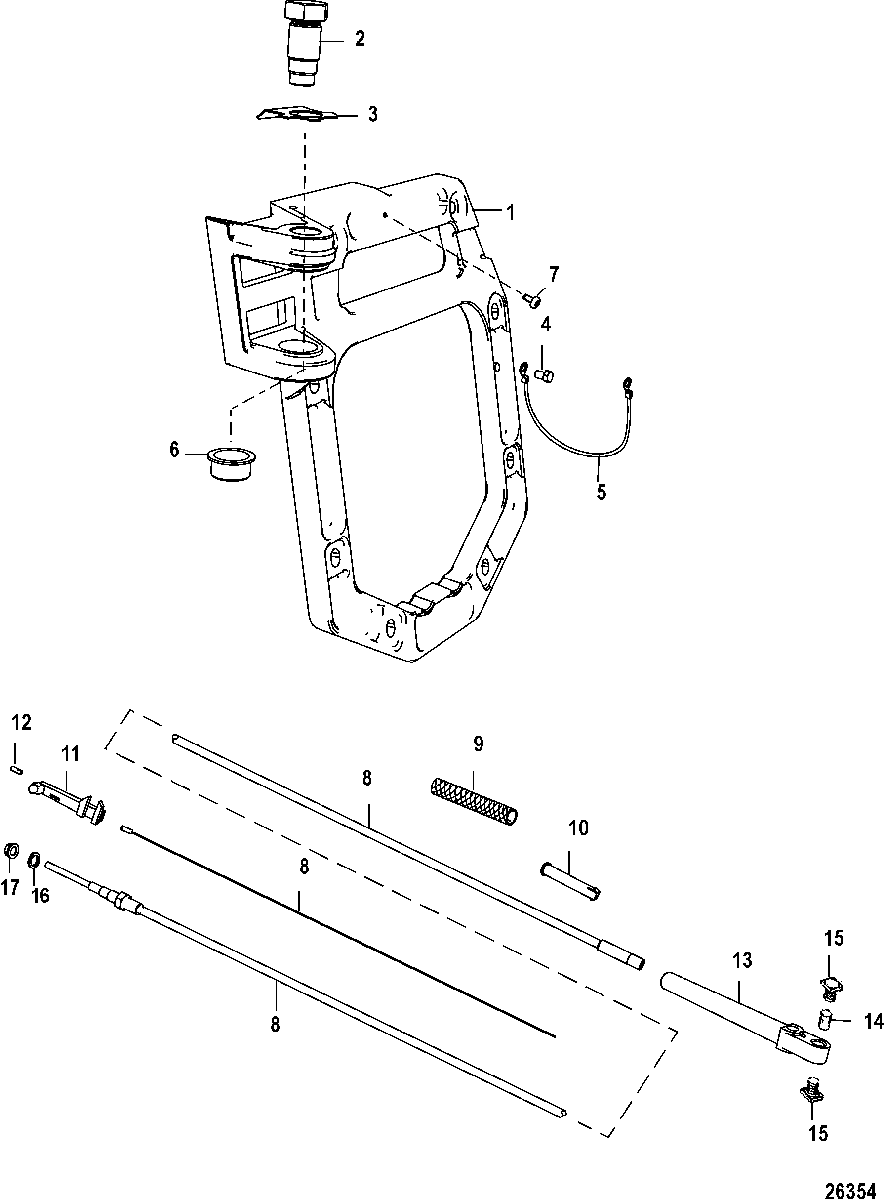

Transom Plate and Shift Cable для Mercruiser - VAZER DRIVE 0W995000 & Up
-
№АртикулНазвание
-
1866388A01 PLATE ASSEMBLY, TransomPLATE ASSEMBLY, Transom
-
210-866580 BOLT, PivotBOLT, Pivot
-
314-866581 TAB WASHERTAB WASHER
-
410-85486 SCREW, (.250-20 x .380) Stainless SteelSCREW, (.250-20 x .380) Stainless Steel
-
588238A7 CABLE ASSEMBLYCABLE ASSEMBLY
-
623-866504 BUSHINGBUSHING
-
710-8M0113176 SCREW, (#10-24 x .38)SCREW, (#10-24 x .38)
-
833981A06 SLIDE ASSEMBLY, ShiftingSLIDE ASSEMBLY, Shifting
-
938473 WRAPPING, SpiralWRAPPING, Spiral
-
10861632T INSERTINSERT
-
118M0046299 SLIDE, ShiftingSLIDE, Shifting
-
1210-31700 SCREW, (.250-28 x .750)SCREW, (.250-28 x .750)
-
-43433A01 GUIDE KITGUIDE KIT
-
1343433 GUIDEGUIDE
-
1443436 ANCHORANCHOR
-
1510-20518 SET SCREW, (#8-32)SET SCREW, (#8-32)
-
1612-815472 WASHERWASHER
-
1711-49910 NUT, (.375-24)NUT, (.375-24)
-
NS91-8M2001196 TOOL, Shift SlideTOOL, Shift Slide
