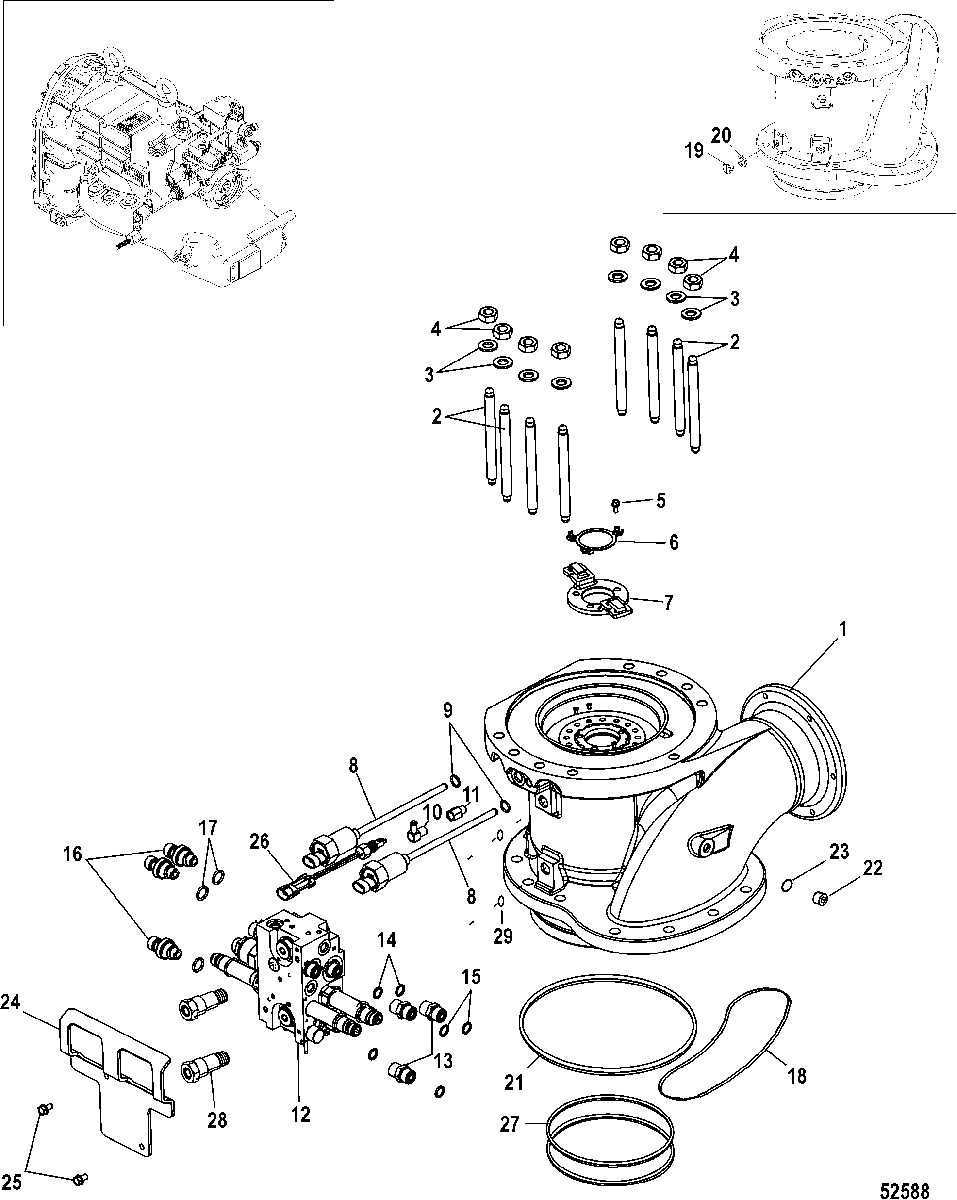

Steering System, Actuator для Mercruiser - ZEUS 3000 0M968893 THRU 0M968955
-
№АртикулНазвание
-
18M8023291 ACTUATOR
Use With 12mm Adaptor FastenersACTUATOR
Use With 12mm Adaptor Fasteners -
18M8025206 ACTUATOR
Use With 14mm Adaptor FastenersACTUATOR
Use With 14mm Adaptor Fasteners -
216-8M0090589 STUD, (M12 x 140)STUD, (M12 x 140)
-
312-4002321 WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless SteelWASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
-
411-896895 NUT, (M12)NUT, (M12)
-
510-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
68M0007700 PLATEPLATE
-
78M0007666 BRACKETBRACKET
-
88M0050825 SENSORSENSOR
-
925-831985 O-RING, (.468 x .078)O-RING, (.468 x .078)
-
1022-196881 FITTING, (90 Degree)FITTING, (90 Degree)
-
1122-28586 FITTING, AdapterFITTING, Adapter
-
12879345T50 MANIFOLDMANIFOLD
-
1322-8M0033226 FITTING, (11/16 - 16)Straight (Stainless Steel)FITTING, (11/16 - 16)Straight (Stainless Steel)
-
1425-8M0047401 O-RING, (.468 X .078)O-RING, (.468 X .078)
-
1525-8M0047399 O-RINGO-RING
-
168M6001284 TRANSDUCERTRANSDUCER
-
1725-8M0024307 O-RING, (8.92 x 1.83)O-RING, (8.92 x 1.83)
-
1825-8M0007558 O RING, (152.07 x 2.62)O RING, (152.07 x 2.62)
-
1910-79953A04 PLUG ASSEMBLY, (.375-16 x .250)PLUG ASSEMBLY, (.375-16 x .250)
-
2026-830749 SEALSEAL
-
2125-8M0007701 O-RING, (183.74 x 3.53)O-RING, (183.74 x 3.53)
-
2222-8M0042546 PLUG, (M10 x 15)PLUG, (M10 x 15)
-
2325-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
248M8025203 BRACKETBRACKET
-
2510-40011126 SCREW, (M6 x 13) Stainless SteelSCREW, (M6 x 13) Stainless Steel
-
268M0021043 SENSOR, WaterSENSOR, Water
-
2726-8M0045622 SEAL, OscillatingSEAL, Oscillating
-
288M6002550 BANJO BOLTBANJO BOLT
-
2925-8M0094507 O-RING, (17.93 x 2.46)O-RING, (17.93 x 2.46)
