Zeus Model Service Replacement Matrix для Mercruiser - ZEUS 3000 0M968893 THRU 0M968955
-
№АртикулНазвание
-
-879148T68 TRANSMISSION, (1.393:1 Gear Ratio)(No Drop Box)TRANSMISSION, (1.393:1 Gear Ratio)(No Drop Box)
-
-879148T69 TRANSMISSION, (1.393:1 Gear Ratio)(With Drop Box)TRANSMISSION, (1.393:1 Gear Ratio)(With Drop Box)
-
-879345T74 TRANSMISSION, (1.215:1 Gear Ratio)(With Drop Box)TRANSMISSION, (1.215:1 Gear Ratio)(With Drop Box)
-
-879345T75 TRANSMISSION, (.831:1 Gear Ratio)(With Drop Box)TRANSMISSION, (.831:1 Gear Ratio)(With Drop Box)
-
-8M0046594 COOLER, OilCOOLER, Oil
-
-879150A79 COOLERCOOLER
-
-897345T95 COOLERCOOLER
-
-879150A80 COOLERCOOLER
-
-879345T43 GEARCASE ASSEMBLY, 1.611 RatioGEARCASE ASSEMBLY, 1.611 Ratio
-
-879345T44 GEARCASE ASSEMBLY, 1.478 RatioGEARCASE ASSEMBLY, 1.478 Ratio
-
-5-5P4AZ54JP ZEUS POD, 2.06 PORT QSB NO D/BXZEUS POD, 2.06 PORT QSB NO D/BX
-
-5-5Q4AZ54JP ZEUS POD, 2.06 STBD QSB NO D/BXZEUS POD, 2.06 STBD QSB NO D/BX
-
-5-5P4AY54JP ZEUS POD, 2.24 PORT QSB NO D/BXZEUS POD, 2.24 PORT QSB NO D/BX
-
-5-5Q4AY54JP ZEUS POD, 2.24 STBD QSB NO D/BXZEUS POD, 2.24 STBD QSB NO D/BX
-
-5-5P4CZ64JP ZEUS POD, 2.06 PORT QSB W/DBXZEUS POD, 2.06 PORT QSB W/DBX
-
-5-5Q4CZ64JP ZEUS POD, 2.06 STB QSB W/DBZEUS POD, 2.06 STB QSB W/DB
-
-5-5P4CY64JP ZEUS POD, 2.24 PORT QSB W/DBXZEUS POD, 2.24 PORT QSB W/DBX
-
-5-5Q4CY64JP ZEUS POD, 2.24 STB QSB W/DBZEUS POD, 2.24 STB QSB W/DB
-
-5-5P4DB74JP ZEUS POD, 1.79 PORT QSC/B W/DBXZEUS POD, 1.79 PORT QSC/B W/DBX
-
-5-5Q4DB74JP ZEUS POD, 1.79 STB QSC/B W/DBZEUS POD, 1.79 STB QSC/B W/DB
-
-5-5P4DA74JP ZEUS POD, 1.95 PORT QSC/B W/DBXZEUS POD, 1.95 PORT QSC/B W/DBX
-
-5-5Q4DA74JP ZEUS POD, 1.95 PORT QSC/B W/DBXZEUS POD, 1.95 PORT QSC/B W/DBX
-
-5-5P4AG94JP ZEUS POD, 1.34 PORT QSM W/DBXZEUS POD, 1.34 PORT QSM W/DBX
-
-5-5Q4AG94JP ZEUS POD, 1.34 STB QSM W/DBXZEUS POD, 1.34 STB QSM W/DBX
-
-5-5P4AL84JP ZEUS POD, 1.5 PORT CAT 600 ZF QSC W/DBXZEUS POD, 1.5 PORT CAT 600 ZF QSC W/DBX
-
-5-5Q4AL84JP ZEUS POD, 1.5 STB CAT 600 ZF QSC W/DBXZEUS POD, 1.5 STB CAT 600 ZF QSC W/DBX
Все узлы модели:
- Cooling System(With Drop Box Cold Water cooler)
- Cooling System(With Drop Box)
- Cooling System(Without Drop Box)
- Electrical
- Gear Housing, Design-I (0M963534 and Below)
- Gear Housing, Design-II (0M963535 and Up)
- Harnesses
- Hydraulic Filter Assembly, High Pressure
- Hydraulic Pump, Primary
- Hydraulic System, Port
- Hydraulic System, Starboard
- Lube Bottle
- Midsection, Lower
- Midsection, Upper
- Propellers, H-Series
- Propellers, M-Series
- Propellers, Z-Series
- Service/Support Material
- Shroud Assembly
- Steering System, Actuator
- Steering System, Lower King Pin Adaptor (12mm Fasteners)
- Steering System, Lower King Pin Adaptor (14mm Fasteners)
- Tools
- Tools(Continued)
- Transmission Oil Lines, No Drop Box
- Transmission Oil Lines, With Drop Box
- Transmission Oil Lines, With Drop Box Cold Water Cooler
- Transmissions
- Trim Components

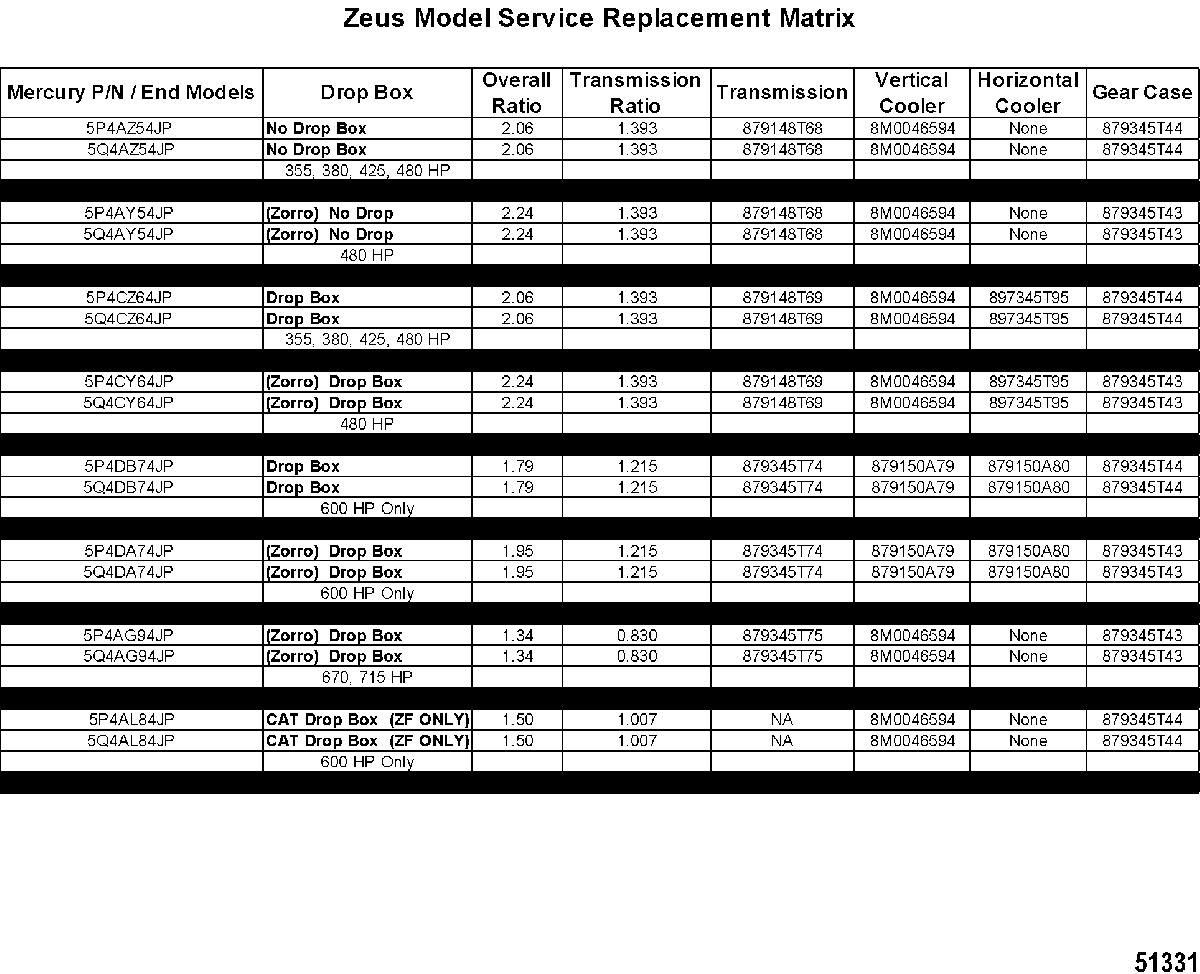

- • Zeus Model Service Replacement Matrix
- Zeus Unit Chart
