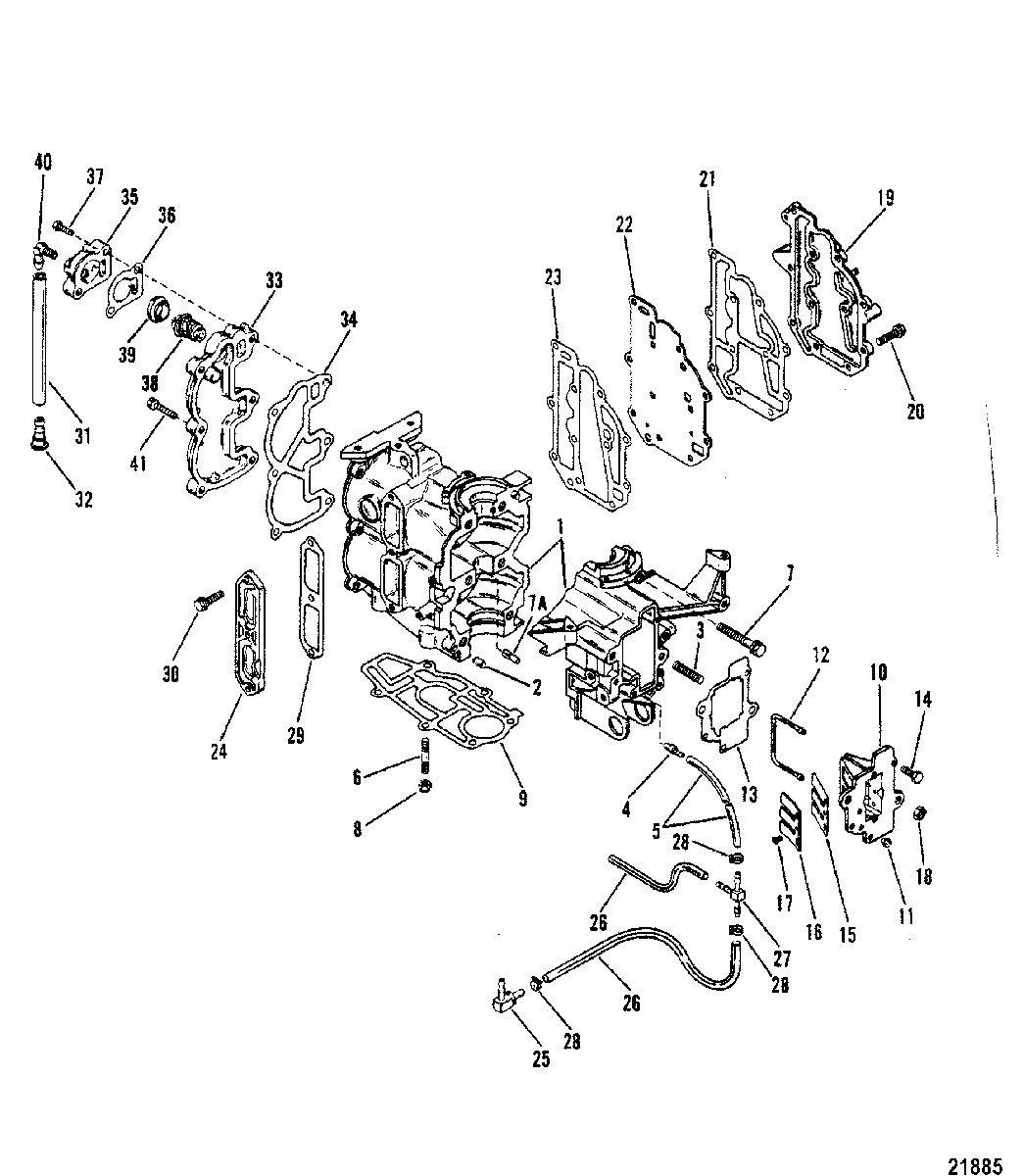

Cylinder Block and Covers для Mercury - 10 SEA PRO 9596000 THRU 9792199
-
№АртикулНазвание
-
1881-9727T2 CYLINDER BLOCKCYLINDER BLOCK
-
217-85171 PIN, Dowel, CYLINDER BLOCKPIN, Dowel, CYLINDER BLOCK
-
316-424632 STUD, CARBURETORSTUD, CARBURETOR
-
421-426982 CHECK VALVE, BLEED HOSECHECK VALVE, BLEED HOSE
-
532-99130100 HOSE, BLEEDHOSE, BLEED
-
616-8161949 STUD, CYLINDER BLOCKSTUD, CYLINDER BLOCK
-
710-421251 SCREW, (M8 x 55), CRANKCASE TO CYLINDER BLOCKSCREW, (M8 x 55), CRANKCASE TO CYLINDER BLOCK
-
7A17-17866 PIN, GroovePIN, Groove
-
811-401386 NUT, (M6), CYLINDER BLOCK STUDNUT, (M6), CYLINDER BLOCK STUD
-
927-191861 GASKET, PowerheadGASKET, Powerhead
-
10828435A3 REED BLOCK ASSEMBLYREED BLOCK ASSEMBLY
-
1121-42657A3 CHECK VALVECHECK VALVE
-
1226-42137 SEAL, REED BLOCKSEAL, REED BLOCK
-
1327-195982 GASKET, REED BLOCKGASKET, REED BLOCK
-
1410-4000171 SCREW, (M6 x 16), REED BLOCKSCREW, (M6 x 16), REED BLOCK
-
1534-825141 REEDREED
-
16828435A3 STOP, ReedSTOP, Reed
-
1710-4005764 SCREW, (M3.5 x 8), REED ATTACHINGSCREW, (M3.5 x 8), REED ATTACHING
-
1811-400213 NUT, (M8) Stainless Steel, CARBURETOR STUDNUT, (M8) Stainless Steel, CARBURETOR STUD
-
198M0048005 COVER, EXHAUSTCOVER, EXHAUST
-
2010-40062129 SCREW, (M6 x 25), EXHAUST COVER TO CYLINDER BLOCKSCREW, (M6 x 25), EXHAUST COVER TO CYLINDER BLOCK
-
2127-19185 GASKET, EXHAUST COVERGASKET, EXHAUST COVER
-
2242365 PLATE, BafflePLATE, Baffle
-
2327-19184 GASKET, BAFFLE PLATEGASKET, BAFFLE PLATE
-
2419107F1 COVER, Intake
(Fitting is Installed in Block)COVER, Intake
(Fitting is Installed in Block) -
2417863A1 COVER ASSEMBLY, Intake
(Fitting is Installed in Intake Cover)COVER ASSEMBLY, Intake
(Fitting is Installed in Intake Cover) -
2522-56759 FITTING, Barbed
(Fitting is installed in Block)FITTING, Barbed
(Fitting is installed in Block) -
2522-15133 FITTING
(Fitting is Installed in Intake Cover)FITTING
(Fitting is Installed in Intake Cover) -
2632-99130100 HOSEHOSE
-
2722-59169003 FITTINGFITTING
-
2856762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
2927-192031 GASKET, INTAKE COVERGASKET, INTAKE COVER
-
3010-40062129 SCREW, (M6 x 25), COVER TO CYLINDER BLOCKSCREW, (M6 x 25), COVER TO CYLINDER BLOCK
-
3132-8M0108355 LINE, (57.00 Inches Bulk), TELL TALELINE, (57.00 Inches Bulk), TELL TALE
-
3222-94848 FITTING, TELL TALE HOSE-BOTTON COWLFITTING, TELL TALE HOSE-BOTTON COWL
-
331033-8906A02 COVER ASSEMBLYCOVER ASSEMBLY
-
3427-19207002 GASKETGASKET
-
358M0039352 COVER, THERMOSTATCOVER, THERMOSTAT
-
3627-19205002 GASKETGASKET
-
3710-40062129 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3814586 THERMOSTAT (120 Degree)THERMOSTAT (120 Degree)
-
3927-62386001 GASKET, THERMOSTATGASKET, THERMOSTAT
-
4022-291112 CONNECTOR (STRAIGHT)CONNECTOR (STRAIGHT)
-
4110-40062129 SCREW, (M6 x 25), COVER ATTACHINGSCREW, (M6 x 25), COVER ATTACHING
-
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
-
-19072T88 POWERHEAD ASSEMBLY, CompletePOWERHEAD ASSEMBLY, Complete
