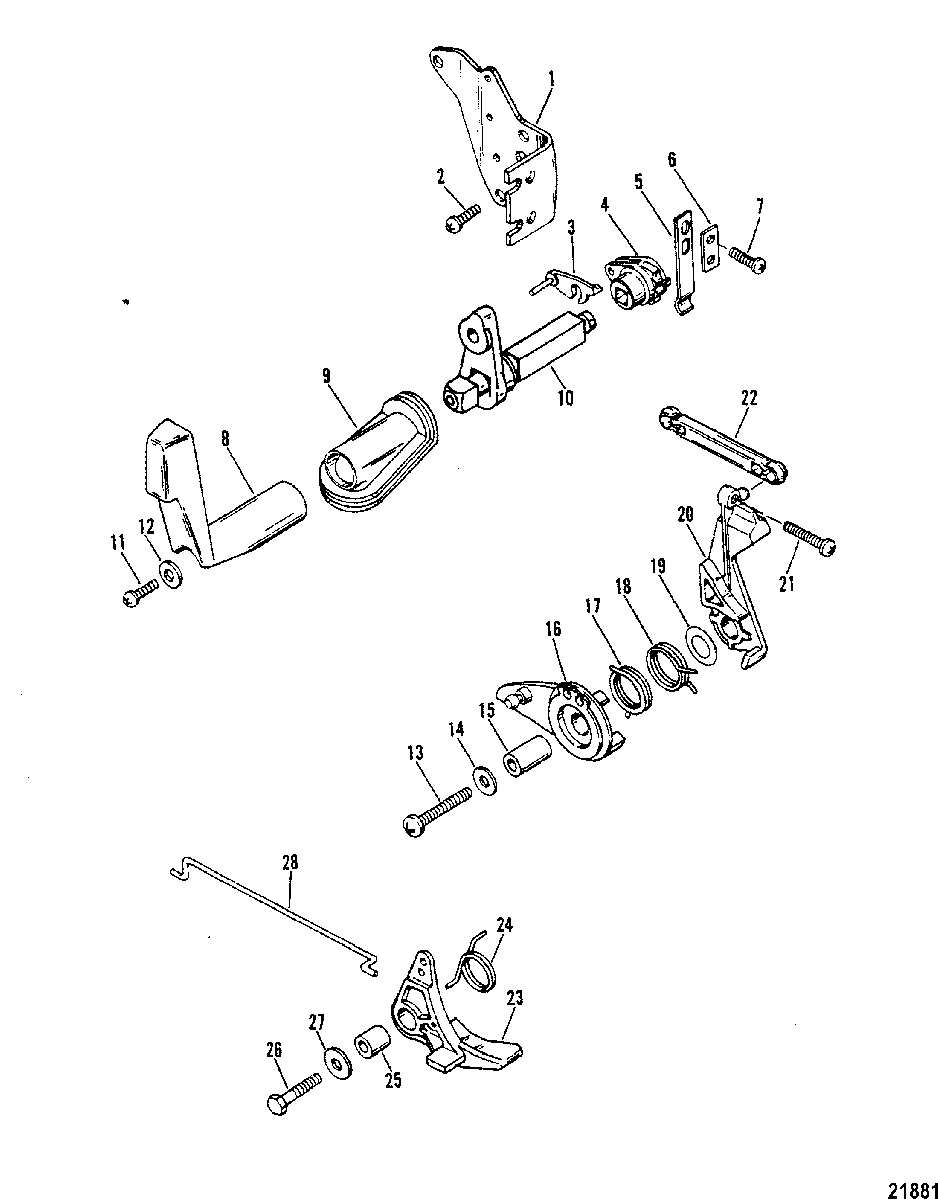

Throttle and Shift Linkage(SeaPro/Marathon 10) для Mercury - 10 SEA PRO 9596000 THRU 9792199
-
№АртикулНазвание
-
142181 BRACKET, CableBRACKET, Cable
-
210-4000171 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
342156 LEVERLEVER
-
442153 LEVERLEVER
-
539527 TUBETUBE
-
639601 PLATE (OLD DESIGN)PLATE (OLD DESIGN)
-
710-400011 SCREW, (M5 x 8)SCREW, (M5 x 8)
-
8421571 SHIFT HANDLESHIFT HANDLE
-
944459001 GROMMETGROMMET
-
108155501 SHIFT SHAFTSHIFT SHAFT
-
1110-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
1212-4002314 WASHERWASHER
-
1310-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
1412-4002316 WASHERWASHER
-
1523-421621 BUSHINGBUSHING
-
16421662 ACTUATORACTUATOR
-
1724-42164 SPRINGSPRING
-
1824-13676 SPRINGSPRING
-
1913-69708 WAVE WASHERWAVE WASHER
-
20421631 LEVER, ControlLEVER, Control
-
2110-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
22421671 TIMING LINKTIMING LINK
-
23421592 LEVERLEVER
-
2424-42160 SPRINGSPRING
-
2523-421581 BUSHINGBUSHING
-
2610-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
2712-4002316 WASHERWASHER
-
2842161 LINK INTERLOCKLINK INTERLOCK
