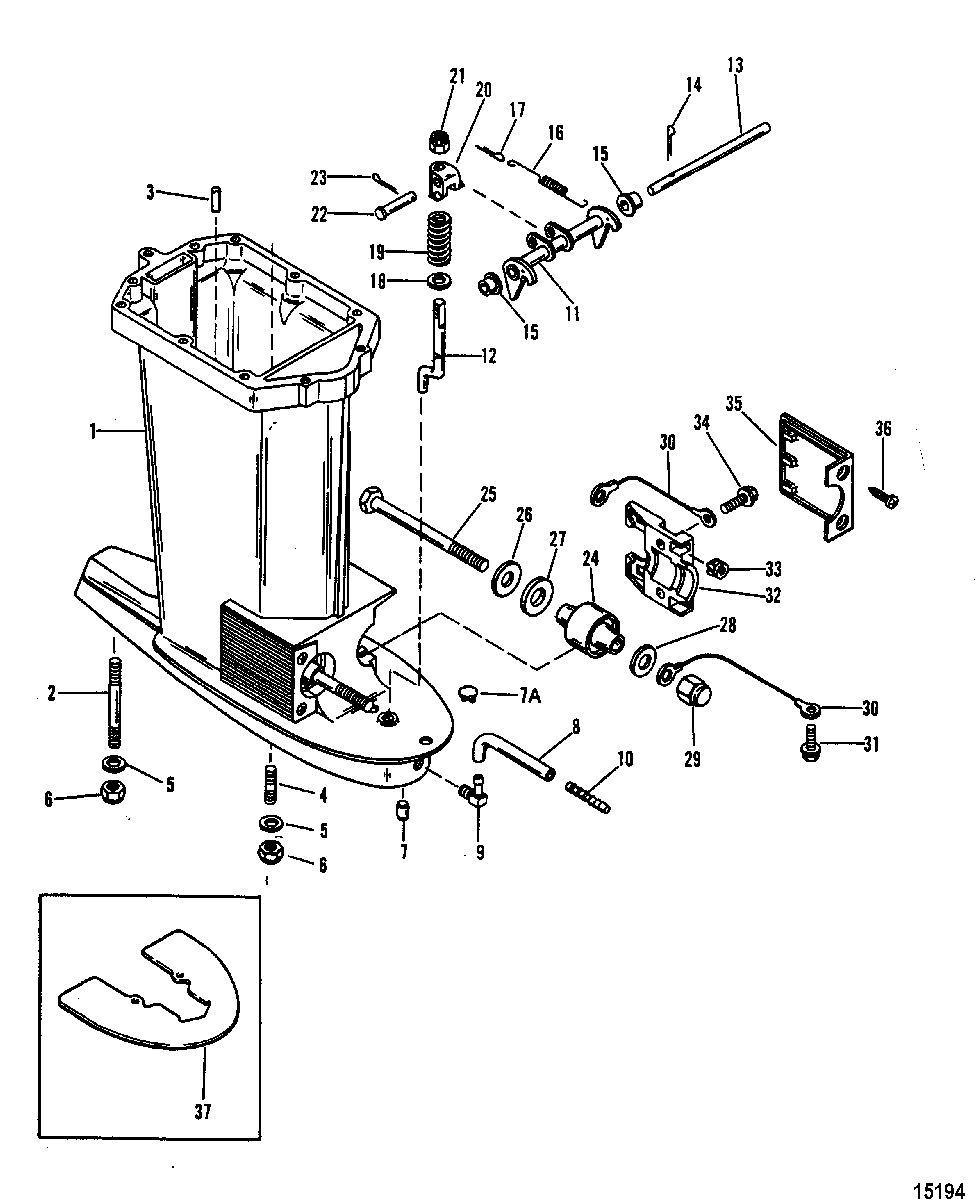

Driveshaft Housing для Mercury - 100 (4 CYL.) 9523034 THRU 9793576
-
№АртикулНазвание
-
1898289A49 HOUSING ASSEMBLY, Driveshaft, BlackHOUSING ASSEMBLY, Driveshaft, Black
-
1898289A49 HOUSING ASSEMBLY, Driveshaft, GrayHOUSING ASSEMBLY, Driveshaft, Gray
-
1898289A49 HOUSING ASSEMBLY, Driveshaft, OysterHOUSING ASSEMBLY, Driveshaft, Oyster
-
216-903501 STUD, (M10 x 100), LongSTUD, (M10 x 100), Long
-
216-903502 STUD, (M10 x 227), X-LongSTUD, (M10 x 227), X-Long
-
317-23784 PIN, DowelPIN, Dowel
-
416-9035012 STUD, LongSTUD, Long
-
416-903503 STUD, (M10 x 190), X-LongSTUD, (M10 x 190), X-Long
-
512-45176 WASHER, Quantity Of Three On OysterWASHER, Quantity Of Three On Oyster
-
611-40140 NUT, (M10)NUT, (M10)
-
7429222 GUIDE, Non Power TrimGUIDE, Non Power Trim
-
7A429221 PLUG, Power Trim, Black, GrayPLUG, Power Trim, Black, Gray
-
7A19-158641 PLUG, Power Trim, OysterPLUG, Power Trim, Oyster
-
822-85822A4 PICKUP ASSEMBLY, SpeedometerPICKUP ASSEMBLY, Speedometer
-
922-433351 CONNECTOR, 90 Degree (.125-27) NylonCONNECTOR, 90 Degree (.125-27) Nylon
-
1022-85822T CONNECTOR, StraightCONNECTOR, Straight
-
1114664A2 HOOK ASSEMBLY, Reverse, Non Power TrimHOOK ASSEMBLY, Reverse, Non Power Trim
-
1216686 PUSH ROD, Non Power TrimPUSH ROD, Non Power Trim
-
1399606 SHAFT, Non Power TrimSHAFT, Non Power Trim
-
1418-45882 COTTER PIN, Non Power TrimCOTTER PIN, Non Power Trim
-
1523-69132 BUSHING, Non Power TrimBUSHING, Non Power Trim
-
1624-996261 SPRING, Non Power TrimSPRING, Non Power Trim
-
1718-47959 COTTER PIN, Non Power TrimCOTTER PIN, Non Power Trim
-
1812-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, Non Power TrimWASHER, (.323 x .563 x .063) Stainless Steel, Non Power Trim
-
1924-16733 SPRING, Non Power TrimSPRING, Non Power Trim
-
20996361 YOKE, Non Power TrimYOKE, Non Power Trim
-
2111-82670911 NUT, (.312-24) Stainless Steel, Non Power TrimNUT, (.312-24) Stainless Steel, Non Power Trim
-
2217-99663 PIN, Clevis, Non Power TrimPIN, Clevis, Non Power Trim
-
2318-25191 COTTER PIN, Non Power TrimCOTTER PIN, Non Power Trim
-
2444343T1 MOUNTMOUNT
-
2510-898835001 BOLT, (M12 x 154)BOLT, (M12 x 154)
-
2612-28051 WASHER, Early ModelsWASHER, Early Models
-
2712-28053 WASHER, Early ModelsWASHER, Early Models
-
2812-30119 WASHER, (.875 Inch Outside Diameter)WASHER, (.875 Inch Outside Diameter)
-
2911-43528 NUT, (M12)NUT, (M12)
-
3088238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
3110-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
328M0036730 CLAMPCLAMP
-
3311-35521 NUTNUT
-
3410-40011149 SCREW, (M8 x 25) Stainless SteelSCREW, (M8 x 25) Stainless Steel
-
35100-8M4500752 COVER, Black, BlackCOVER, Black, Black
-
35100-8M4500752 COVER, GrayCOVER, Gray
-
35100-8M4500752 COVER, OysterCOVER, Oyster
-
3610-88417 SCREW, (#12-24 x .620)SCREW, (#12-24 x .620)
-
3718579T6 SPLASH PLATE, Sea Ray, OysterSPLASH PLATE, Sea Ray, Oyster
-
3718579T6 SPLASH PLATE, Sea Ray, GraySPLASH PLATE, Sea Ray, Gray
-
-12092A3 SPACER KIT, Drive Shaft Housing, X-Long, BlackSPACER KIT, Drive Shaft Housing, X-Long, Black
-
-12092A4 SPACER KIT, Drive Shaft Housing, X-Long, GraySPACER KIT, Drive Shaft Housing, X-Long, Gray
