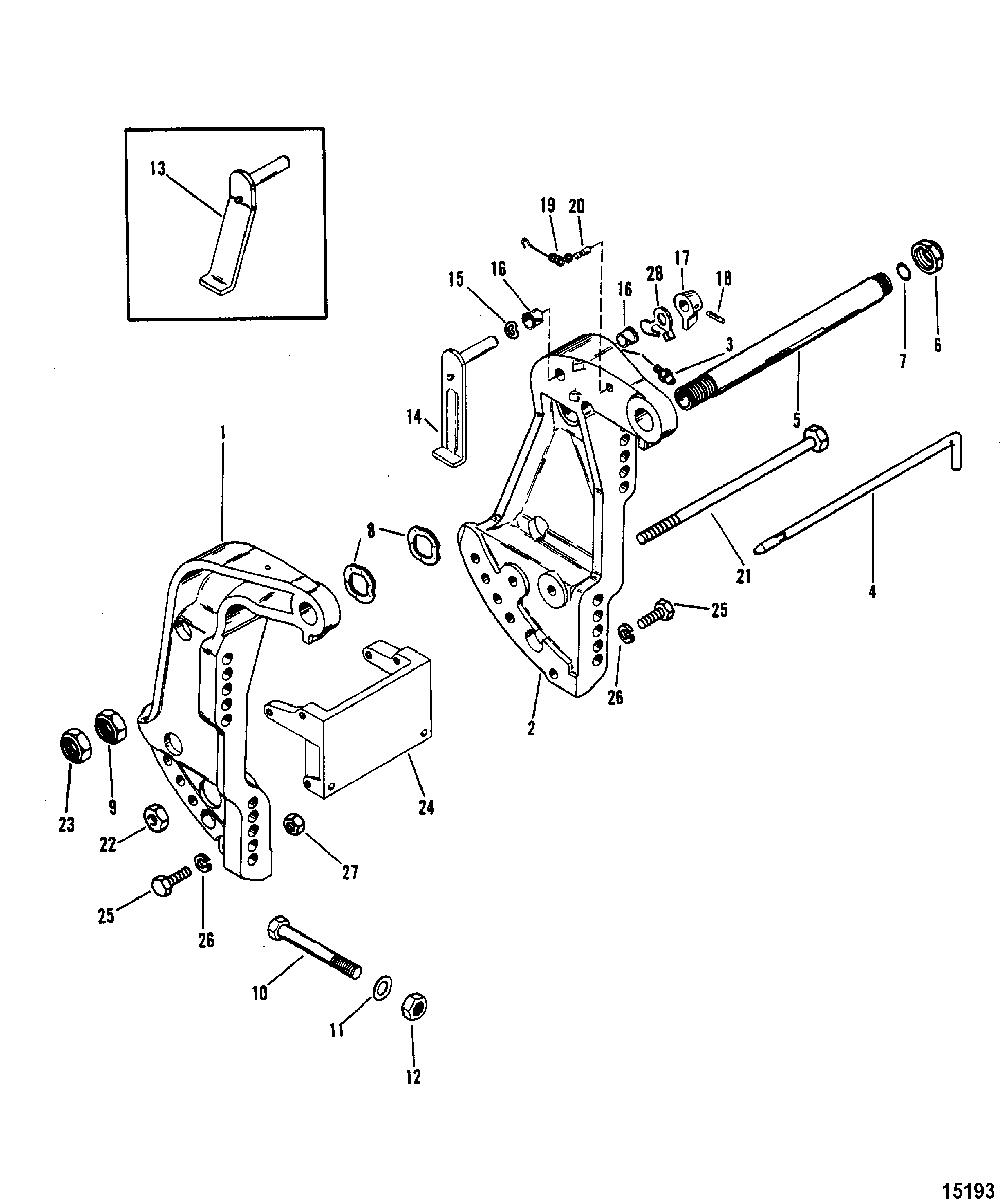

Transom Bracket для Mercury - 100 (4 CYL.) 9523034 THRU 9793576
-
№АртикулНазвание
-
13401-8718F7 BRACKET, Transom, Starboard, BlackBRACKET, Transom, Starboard, Black
-
23400-8716A8 BRACKET ASSEMBLY, Transom, Port, BlackBRACKET ASSEMBLY, Transom, Port, Black
-
13401-8718F8 BRACKET, Transom, Starboard, GrayBRACKET, Transom, Starboard, Gray
-
23400-8716A9 BRACKET ASSEMBLY, Transom, Port, GrayBRACKET ASSEMBLY, Transom, Port, Gray
-
13401-8718F8 BRACKET ASSEMBLY, Transom, Starboard, OysterBRACKET ASSEMBLY, Transom, Starboard, Oyster
-
23400-8716A9 BRACKET ASSEMBLY, Transom, Port, OysterBRACKET ASSEMBLY, Transom, Port, Oyster
-
322-98727 FITTING, Grease, PortFITTING, Grease, Port
-
417-8M0026068 PIN ASSEMBLY, Tilt Lock, Non Power TrimPIN ASSEMBLY, Tilt Lock, Non Power Trim
-
5826125A1 TILT TUBE, Power TrimTILT TUBE, Power Trim
-
611-82671327 NUT, BlackNUT, Black
-
611-82671327 NUT, (1.00-14), GrayNUT, (1.00-14), Gray
-
725-45711 O-RING, (.612 x .103)O-RING, (.612 x .103)
-
813-88750 WASHERWASHER
-
911-858869 NUT, (.875-14)NUT, (.875-14)
-
1010-814259 SCREW, (.500-20 x 4.00)SCREW, (.500-20 x 4.00)
-
1112-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
1112-24501 WASHER, Upper, Sea RayWASHER, Upper, Sea Ray
-
1211-91962 NUT, (.500-20)NUT, (.500-20)
-
138M0115104 LEVER ASSEMBLY, Non Power Trim And Three Ram Power TrimLEVER ASSEMBLY, Non Power Trim And Three Ram Power Trim
-
148M0109798 LEVER ASSEMBLY, Tilt Lock, Single Ram Power TrimLEVER ASSEMBLY, Tilt Lock, Single Ram Power Trim
-
1513-99611 WAVE WASHERWAVE WASHER
-
1623-65830 NYLINERNYLINER
-
1799633 KNOBKNOB
-
1799633 KNOB, OysterKNOB, Oyster
-
1817-99615 PIN, GroovePIN, Groove
-
1924-99622 SPRINGSPRING
-
2017-99604 PIN, GroovePIN, Groove
-
2110-96930A1 BOLT ASSEMBLY, Power TrimBOLT ASSEMBLY, Power Trim
-
2211-23161 NUT, (.375-24), Power TrimNUT, (.375-24), Power Trim
-
2311-8M0041651 NUT, (.875-14), Power TrimNUT, (.875-14), Power Trim
-
248M0086406 BRACKET, Anchor, Black
(Single Ram Power Trim)BRACKET, Anchor, Black
(Single Ram Power Trim) -
248M0086406 BRACKET, Anchor, Gray
(Single Ram Power Trim)BRACKET, Anchor, Gray
(Single Ram Power Trim) -
2510-4000377 SCREW, (M10 x 30), Single Ram PowerTrimSCREW, (M10 x 30), Single Ram PowerTrim
-
2613-400258 LOCKWASHER, (M10) Stainless Steel, Single Ram Power TrimLOCKWASHER, (M10) Stainless Steel, Single Ram Power Trim
-
2711-40114 NUT, (M10 x 1.5), Single Ram Power TrimNUT, (M10 x 1.5), Single Ram Power Trim
-
28814207 STOPSTOP
