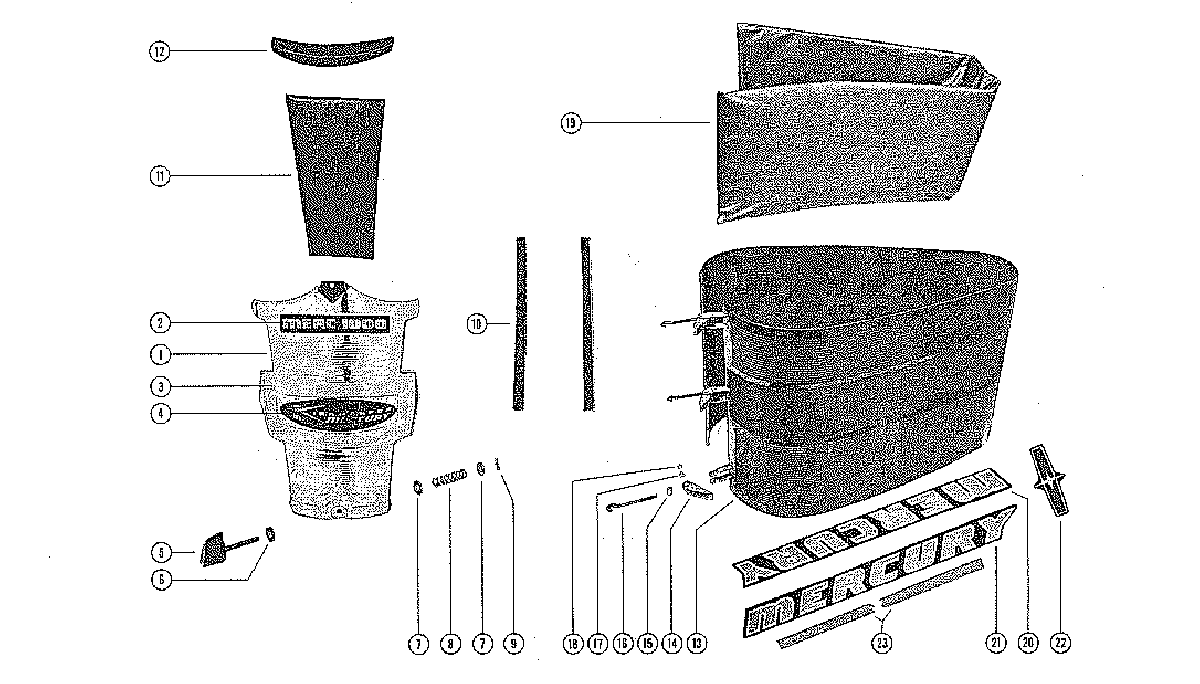

COWLING AND FRONT COVER для Mercury - 1000 1768404 THRU 2318585
-
№АртикулНазвание
-
12113-2663A7 COWL FRONT COVER ASSEMBLYCOWL FRONT COVER ASSEMBLY
-
237-37860 DECAL, FRONT COVER - "MERC 1000"DECAL, FRONT COVER - "MERC 1000"
-
337-37853 DECAL, FRONT COVER EMBLEMDECAL, FRONT COVER EMBLEM
-
437-64413 EMBLEM, FRONT COVEREMBLEM, FRONT COVER
-
556849 KNOB, WOEL FRONT COVER FASTENINGKNOB, WOEL FRONT COVER FASTENING
-
612-30771 WASHER, COVER FASTENING KNOB (RUBBER)WASHER, COVER FASTENING KNOB (RUBBER)
-
712-26825 WASHER, COVER FASTENING KNOB (STEEL)WASHER, COVER FASTENING KNOB (STEEL)
-
824-30772 SPRING, TENSION - FASTENING KNOBSPRING, TENSION - FASTENING KNOB
-
917-29077 ROLL PIN, TENSION SPRING TO KNOBROLL PIN, TENSION SPRING TO KNOB
-
1031089 STRIP, SOUND ABSORBINGSTRIP, SOUND ABSORBING
-
1138675 BLANKET, SOUND ABSORBINGBLANKET, SOUND ABSORBING
-
1235769 SEAL, SOUND ABSORBING - UPPERSEAL, SOUND ABSORBING - UPPER
-
132120-3612A3 WRAP AROUND COWL ASSEMBLYWRAP AROUND COWL ASSEMBLY
-
1446785A1 HANDLE, COWL LATCHHANDLE, COWL LATCH
-
1546785A1 SWIVEL, COWL LATCHSWIVEL, COWL LATCH
-
1630413 HOOK, COWL LATCH FASTENINGHOOK, COWL LATCH FASTENING
-
1717-21057 PIN HINGE - COWL LATCH HANDLEPIN HINGE - COWL LATCH HANDLE
-
1853-21058 "E" RING, HANDLE TO HINGE PIN"E" RING, HANDLE TO HINGE PIN
-
1930021 BLANKET, SOUND ABSORBINGBLANKET, SOUND ABSORBING
-
2037-37856 DECAL, WRAP AROUND COWL - PORTDECAL, WRAP AROUND COWL - PORT
-
2137-37855 DECAL, WRAP AROUND COWL - STARBOARDDECAL, WRAP AROUND COWL - STARBOARD
-
2237-37865 DECAL, WRAP AROUND COWL - REARDECAL, WRAP AROUND COWL - REAR
-
2337-37950 DECAL, WRAP AROUND COWL - STRIPEDECAL, WRAP AROUND COWL - STRIPE
-
--92-86166Q1 GLUE, ADHESIVE - BLANKET FASTENINGGLUE, ADHESIVE - BLANKET FASTENING
-
--92-271091 ADHESIVE COMPOUND, EMBLEM FASTENINGADHESIVE COMPOUND, EMBLEM FASTENING
