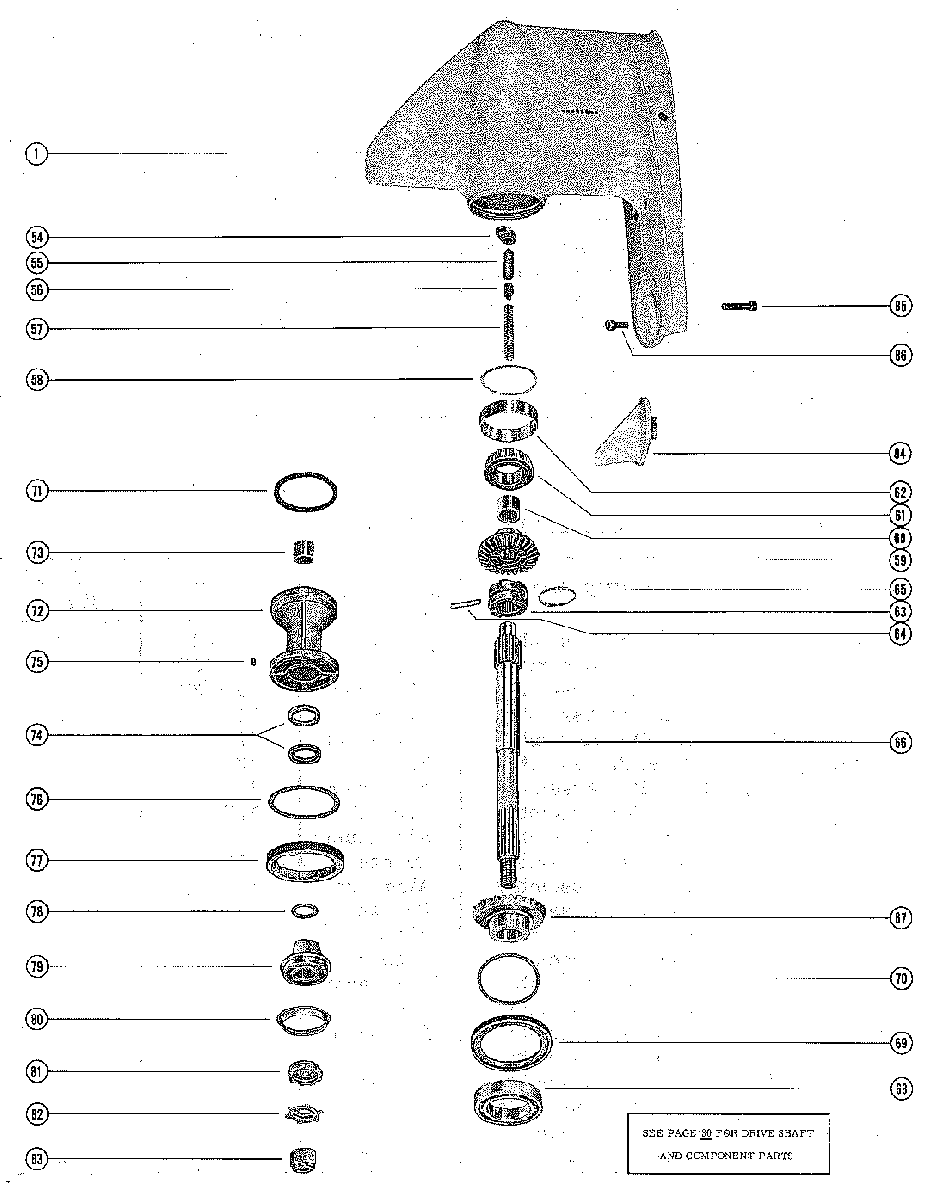

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 1000 1768404 THRU 2318585
-
№АртикулНазвание
-
-1623-3912A8 GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD)
A-1623-2460A11 GEAR HOUSING ASSEMBLY, COMPLETE INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #77 AS LISTED ON PAGES 30 AND 31GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD)
A-1623-2460A11 GEAR HOUSING ASSEMBLY, COMPLETE INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #77 AS LISTED ON PAGES 30 AND 31 -
11623-5244A14 GEAR HOUSING ASSEMBLY
SEE PAGE 30 FOR PARTS BREAKDOWNGEAR HOUSING ASSEMBLY
SEE PAGE 30 FOR PARTS BREAKDOWN -
54760394 CAM, SHIFTCAM, SHIFT
-
5530625 FOLLOWER, CAMFOLLOWER, CAM
-
5630624 SLIDE, CROSS PINSLIDE, CROSS PIN
-
5724-30622 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5815-30923A1 SHIM, BEARING OUTER RACE TO GEAR HSG.SHIM, BEARING OUTER RACE TO GEAR HSG.
-
5943-53100A3 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
6031-30895T BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
6131-30894A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
6231-31092 CUP, TAPERED ROLLER BEARINGCUP, TAPERED ROLLER BEARING
-
6352-822539T RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
6417-8M0100263 PIN, CROSS - RATCHET TO PROPELLER SHAFTPIN, CROSS - RATCHET TO PROPELLER SHAFT
-
6524-30893 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6644-47900A2 SHAFT, PROPELLERSHAFT, PROPELLER
-
6743-31887 REVERSE GEAR ASSEMBLYREVERSE GEAR ASSEMBLY
-
6830-31265 BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
6912-71143A1 WASHER, THRUST - BEARING CARRIER TO GEAR HOUSINGWASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
-
7015-29955A1 SHIM, THRUST WASHER TO GEAR HOUSINGSHIM, THRUST WASHER TO GEAR HOUSING
-
7125-29976 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
7231284T1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
7331-30956T BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
7426-76868 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
7528-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
7612-29957 WASHER, GEAR HOUSING COVERWASHER, GEAR HOUSING COVER
-
7752699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7812-31013 WASHER, THRUST - BEARING CARRIERWASHER, THRUST - BEARING CARRIER
-
7930581A1 THRUST HUB AND WASHER ASSEMBLYTHRUST HUB AND WASHER ASSEMBLY
-
8012-29590 WASHER, CUPPED - THRUST HUBWASHER, CUPPED - THRUST HUB
-
8112-31211Q03 WASHER, SPLINED - PROPELLER NUTWASHER, SPLINED - PROPELLER NUT
-
8214-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
8311-29594 NUT, PROPELLERNUT, PROPELLER
-
8497-31640Q4 TRIM TAB, GEAR HOUSINGTRIM TAB, GEAR HOUSING
-
8510-32470 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
-
8610-30206 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
