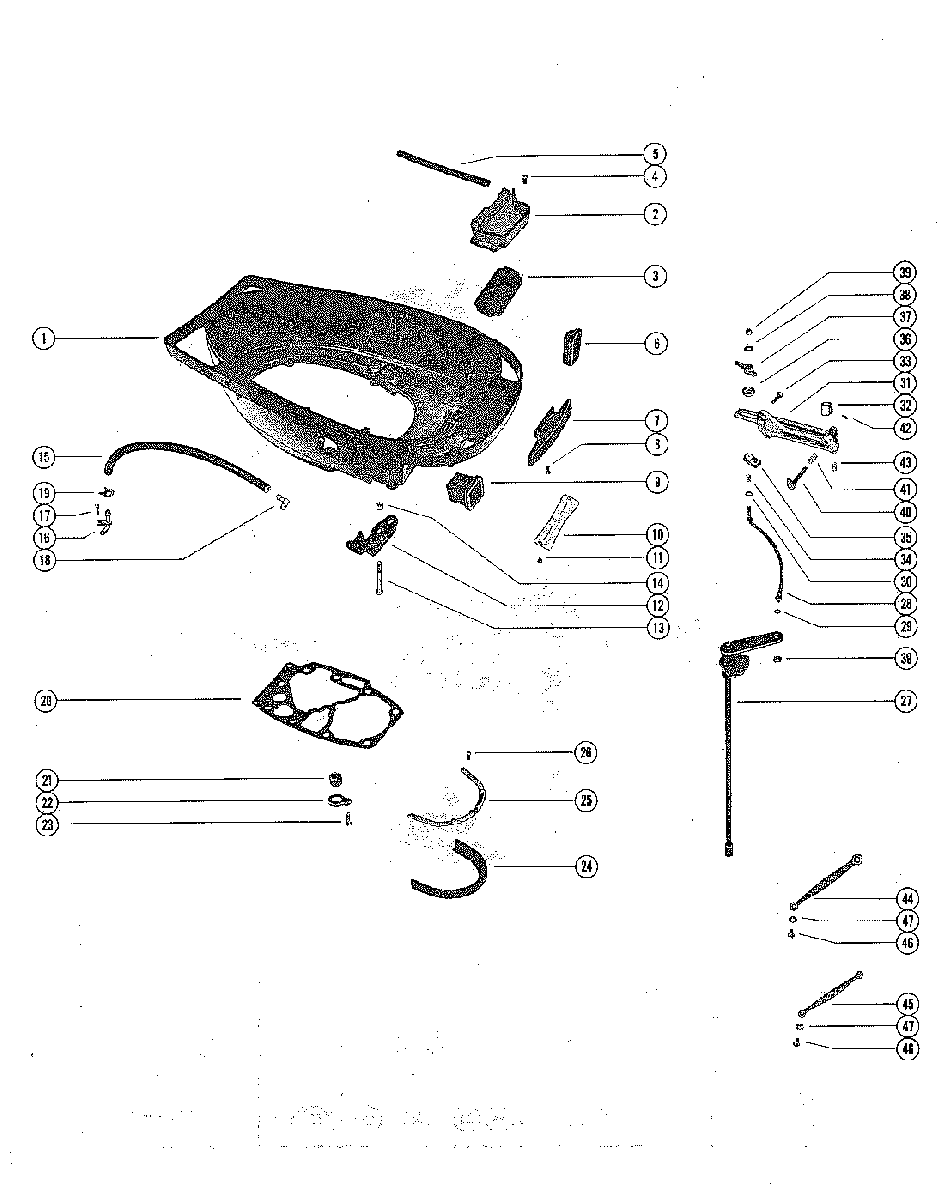

BOTTOM COWL AND SHIFT LINKAGE для Mercury - 1000BP 2641855 THRU 3253111
-
№АртикулНазвание
-
12115-3807 COWL, BOTTOM ( MERC 1000BP)COWL, BOTTOM ( MERC 1000BP)
-
12115-3807 COWL, BOTTOM (MERC 1250BP)COWL, BOTTOM (MERC 1250BP)
-
252862A2 DRIP TRAY ASSEMBLY, BOTTOM COWLDRIP TRAY ASSEMBLY, BOTTOM COWL
-
337940 PAD, SOUND - DRIP TRAYPAD, SOUND - DRIP TRAY
-
410-41228 SCREW, DRIP TRAY TO BOTTOM COWL (1/2")SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
-
532-8M0108355 HOSE, DRIP TRAY TO BOTTOM COWL (8")HOSE, DRIP TRAY TO BOTTOM COWL (8")
-
637638 BOOT, CONTROL CABLES - BOTTOM COWLBOOT, CONTROL CABLES - BOTTOM COWL
-
776369 SPACER, BOTTOM COWL (COWL FRONT COVER)SPACER, BOTTOM COWL (COWL FRONT COVER)
-
810-48591 SCREW, SPACER TO BOTTOM COWL (1/2")SCREW, SPACER TO BOTTOM COWL (1/2")
-
937637 BOOT, FUEL CONNECTOR - BOTTOM COWLBOOT, FUEL CONNECTOR - BOTTOM COWL
-
1023760 BAFFLE, BOTTOM COWLBAFFLE, BOTTOM COWL
-
1110-52867 SCREW, BAFFLE TO BOTTOM COWLSCREW, BAFFLE TO BOTTOM COWL
-
1237445 SUPPORT, WIRING HARNESS - BOTTOM COWLSUPPORT, WIRING HARNESS - BOTTOM COWL
-
1310-69029 SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (1 3/4")SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (1 3/4")
-
1411-20184 NUT, WIRING HARNESS SUPPORT SCREWNUT, WIRING HARNESS SUPPORT SCREW
-
1532-8M0108355 HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16")HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16")
-
1652889 NOZZLE, TELL TALE HOSE TO BOTTOM COWLNOZZLE, TELL TALE HOSE TO BOTTOM COWL
-
1710-41228 SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
-
1822-996642 ELBOW, TELL TALE HOSE TO EXHAUST COVERELBOW, TELL TALE HOSE TO EXHAUST COVER
-
1954-48123 CLAMP, TELL TALE HOSE TO CONNECTOR AND ELBOWCLAMP, TELL TALE HOSE TO CONNECTOR AND ELBOW
-
2010-28713 GASKET, POWERHEAD TO DRIVE SHAFT HOUSINGGASKET, POWERHEAD TO DRIVE SHAFT HOUSING
-
2126-38970 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
2238448 RETAINER, WATER TUBE SEALRETAINER, WATER TUBE SEAL
-
2310-69069 SCREW, RETAINER TO DRIVE SHAFT HOUSING (3/4")SCREW, RETAINER TO DRIVE SHAFT HOUSING (3/4")
-
2437918 SEAL, COWL - FRONTSEAL, COWL - FRONT
-
2599358 STRIP, RETAINING - COWL SEALSTRIP, RETAINING - COWL SEAL
-
2610-37571 SCREW, SEAL AND RETAINING STRIP TO COWLSCREW, SEAL AND RETAINING STRIP TO COWL
-
2748943A2 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
-
2753777A2 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
-
2848047A2 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
2912-24664 WASHER, LINK RODWASHER, LINK ROD
-
3013-29720 WASHER, WAVE - LINK RODWASHER, WAVE - LINK ROD
-
3152732A6 BRACKET ASSEMBLY, ANCHOR CONTROL CABLESBRACKET ASSEMBLY, ANCHOR CONTROL CABLES
-
3238802 CAP, BRASS BARREL TO THROTTLE CABLECAP, BRASS BARREL TO THROTTLE CABLE
-
3249935 CAP, BRASS BARREL TO THROTTLE CABLECAP, BRASS BARREL TO THROTTLE CABLE
-
3310-35386 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
-
3424-20099 SPRING, LINK ROD TO GUIDE BLOCKSPRING, LINK ROD TO GUIDE BLOCK
-
3537896 GUIDE BLOCK, LINK RODGUIDE BLOCK, LINK ROD
-
3652100 WEAR PLATE, LINK RODWEAR PLATE, LINK ROD
-
378M0036768 LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKETLATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
-
3812-69056 WASHER, PLAIN - LINK RODWASHER, PLAIN - LINK ROD
-
3911-826709109 NUT, LINK RODNUT, LINK ROD
-
4049932A1 LEVER ASSEMBLY, CONTROL CABLE LOCKING - ANCHOR BRACKETLEVER ASSEMBLY, CONTROL CABLE LOCKING - ANCHOR BRACKET
-
4124-37911 SPRING, CONTROL CABLE LOCKING LEVERSPRING, CONTROL CABLE LOCKING LEVER
-
4217-239281 PIN, ROLL - CONTROL CABLE LOCKING LEVERPIN, ROLL - CONTROL CABLE LOCKING LEVER
-
4324-38472 SPRING, CONTROL CABLE TENSION - ANCHOR BRACKETSPRING, CONTROL CABLE TENSION - ANCHOR BRACKET
-
4446933A1 GROUND STRAN ASSEMBLY CRANKCASE TO COWL (3 5/8")GROUND STRAN ASSEMBLY CRANKCASE TO COWL (3 5/8")
-
4546933A2 GROUND STRAP ASSEMBLY, DRIVE SHAFT HOUSING TO COWL (3 3/8")GROUND STRAP ASSEMBLY, DRIVE SHAFT HOUSING TO COWL (3 3/8")
-
4610-62568 SCREW, GROUND STRAP FASTENINGSCREW, GROUND STRAP FASTENING
-
4713-69432 LOCKWASHER, GROUND STRAP SCREWLOCKWASHER, GROUND STRAP SCREW
