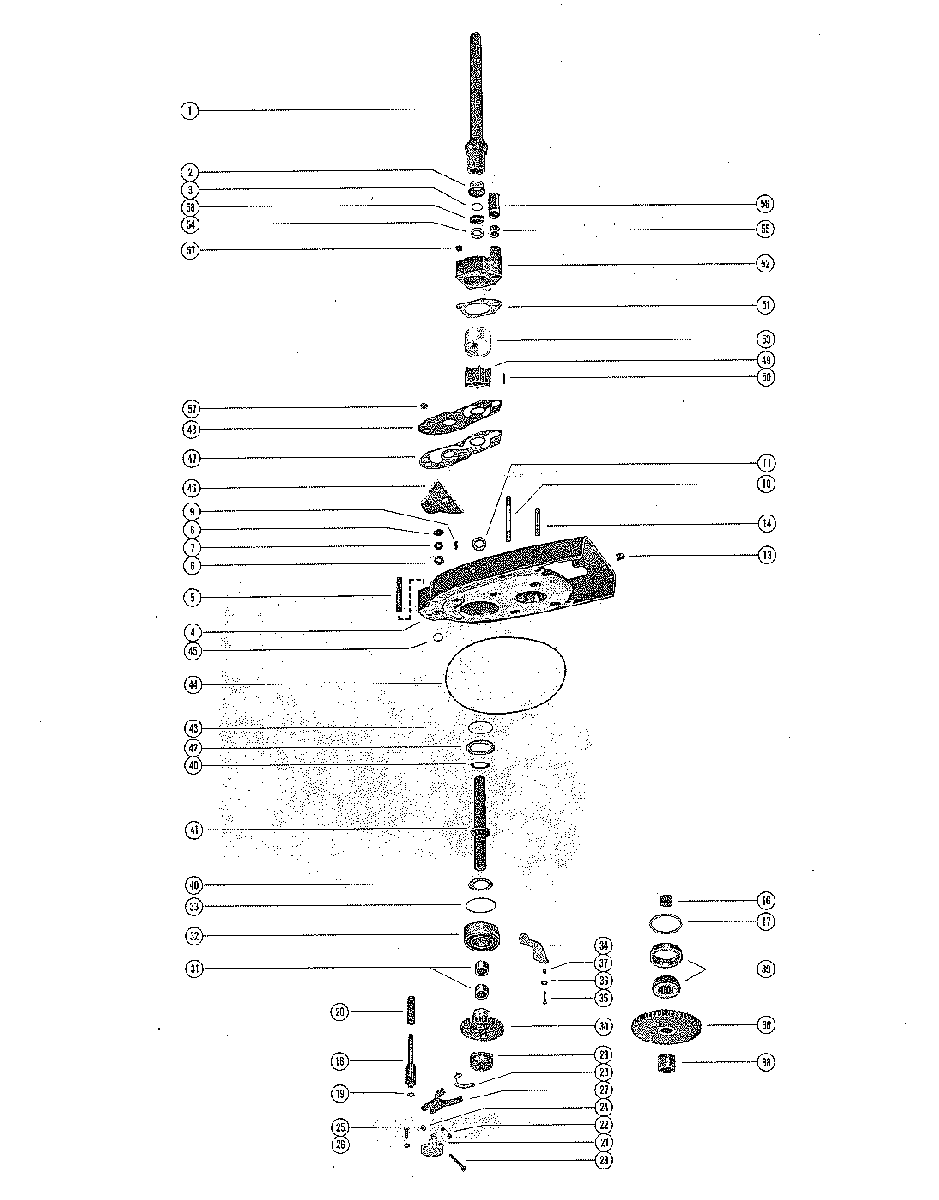

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 1000BP 2641855 THRU 3253111
-
№АртикулНазвание
-
145-56345 DRIVE SHAFT (SHORT SHAFT)DRIVE SHAFT (SHORT SHAFT)
-
145-56346 DRIVE SHAFT (LONG SHAFT)DRIVE SHAFT (LONG SHAFT)
-
254196A6 CARRIER, "O" RING-DRIVE SHAFT COUPLINGCARRIER, "O" RING-DRIVE SHAFT COUPLING
-
325-35126 "O" RING, DRIVE SHAFT COUPLING"O" RING, DRIVE SHAFT COUPLING
-
-1638-4109A3 GEAR HOUSING ASSEMBLEY, COMPLETE
RIGHT HAND ROTATION-MERC 1000BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6GEAR HOUSING ASSEMBLEY, COMPLETE
RIGHT HAND ROTATION-MERC 1000BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6 -
-1638-4108A3 GEAR HOUSING ASSEMBLY, COMPLETE
LEFT HAND ROTATION-MERC 1000BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6GEAR HOUSING ASSEMBLY, COMPLETE
LEFT HAND ROTATION-MERC 1000BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6 -
-1638-4109A4 GEAR HOUSING ASSEMBLY, COMPLETE
RIGHT HAND ROTATION-MERC 1250BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6GEAR HOUSING ASSEMBLY, COMPLETE
RIGHT HAND ROTATION-MERC 1250BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6 -
-1638-4108A4 GEAR HOUSING ASSEMBLY, COMPLETE
LEFT HAND ROTATION-MERC 1250BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6GEAR HOUSING ASSEMBLY, COMPLETE
LEFT HAND ROTATION-MERC 1250BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6 -
453864A1 SPACER ASSEMBLY, COMPLETESPACER ASSEMBLY, COMPLETE
-
516-25385 STUD, SPACER TO FACE PLATE (1 1/8")STUD, SPACER TO FACE PLATE (1 1/8")
-
626-24590 OIL SEAL, SHIFT SHAFT-SPACER (1 3/4" O.D.)OIL SEAL, SHIFT SHAFT-SPACER (1 3/4" O.D.)
-
726-892361 OIL SEAL, SHIFT SHAFT-SPACER (1 9/16" O.D.)OIL SEAL, SHIFT SHAFT-SPACER (1 9/16" O.D.)
-
812-31266 WASHER, RUBBER-SHIFT SHAFTWASHER, RUBBER-SHIFT SHAFT
-
917-8M0084627 PIN, DOWEL-SPACER TO WATER PUMPPIN, DOWEL-SPACER TO WATER PUMP
-
1016-30717 STUD, SPACER TO WATER PUMP (2 7/16")STUD, SPACER TO WATER PUMP (2 7/16")
-
1126-56788 OIL SEAL, SPACER-LOWEROIL SEAL, SPACER-LOWER
-
1322-390721 PLUG, PIPE-SPACERPLUG, PIPE-SPACER
-
1416-8M0034453 STUD, SPACER TO DRIVE SHAFT HOUSING (2 3/16")STUD, SPACER TO DRIVE SHAFT HOUSING (2 3/16")
-
1623-56358 SPACER, DRIVEN GEARSPACER, DRIVEN GEAR
-
1715-26320A1 SHIM ASSEMBLY, DRIVEN GEARSHIM ASSEMBLY, DRIVEN GEAR
-
1853276 CAM, SHIFTCAM, SHIFT
-
1912-55154A1 WASHER ASSEMBLY, SHIFT CAMWASHER ASSEMBLY, SHIFT CAM
-
2024-53277 SPRING, SHIFT CAMSPRING, SHIFT CAM
-
2148909 COVER, SHIFT PIVOTCOVER, SHIFT PIVOT
-
2224-55089 SPRING, SHIFT FORKSPRING, SHIFT FORK
-
2310-55090 SCREW, SHIFT FORKSCREW, SHIFT FORK
-
2411-826709109 NUT, SHIFT FORK SCREWNUT, SHIFT FORK SCREW
-
2510-53099 SCREW, PIVOT COVER TO GEAR HOUSINGSCREW, PIVOT COVER TO GEAR HOUSING
-
2613-26992 LOCKWASHER, SHIFT PIVOT COVER SCREWLOCKWASHER, SHIFT PIVOT COVER SCREW
-
2748908 SHIFT FORK, SLIDING CLUTCHSHIFT FORK, SLIDING CLUTCH
-
2848922 COLLAR, SHIFT-RATCHETCOLLAR, SHIFT-RATCHET
-
2952-48906 RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
3043-48896A1 GEAR ASSEMBLY, DRIVE (1:1 GEAR RATIO)GEAR ASSEMBLY, DRIVE (1:1 GEAR RATIO)
-
3043-48897A1 GEAR ASSEMBLY, DRIVE (1.25:1 GEAR RATIO)GEAR ASSEMBLY, DRIVE (1.25:1 GEAR RATIO)
-
3043-48898A1 GEAR ASSEMBLY, DRIVE (1.5:1 GEAR RATIO)
STANDARD ON MERC 1250BPGEAR ASSEMBLY, DRIVE (1.5:1 GEAR RATIO)
STANDARD ON MERC 1250BP -
3043-48900A1 GEAR ASSEMBLY, DRIVE (1.75:1 GEAR RATIO)
STANDARD ON MERC 1000BPGEAR ASSEMBLY, DRIVE (1.75:1 GEAR RATIO)
STANDARD ON MERC 1000BP -
3043-48895A1 GEAR ASSEMBLY, DRIVE (2:1 GEAR RATIO)GEAR ASSEMBLY, DRIVE (2:1 GEAR RATIO)
-
3131-21700 ROLLER BEARING, DRIVE GEARROLLER BEARING, DRIVE GEAR
-
3230-48916 BALL BEARING, DRIVE GEARBALL BEARING, DRIVE GEAR
-
3315-34810A1 SHIM ASSEMBLY, DRIVE GEAR BEARING TO SPACERSHIM ASSEMBLY, DRIVE GEAR BEARING TO SPACER
-
3448919 RETAINER, DRIVE SHAFT BEARINGRETAINER, DRIVE SHAFT BEARING
-
3510-28667 SCREW, RETAINER TO SPACER (1 1/8")SCREW, RETAINER TO SPACER (1 1/8")
-
3613-21272 LOCKWASHER, RETAINER SCREWLOCKWASHER, RETAINER SCREW
-
3752172 MAGNET, RETAINER SCREWMAGNET, RETAINER SCREW
-
3823-48927 SPACER, DRIVEN GEARSPACER, DRIVEN GEAR
-
3931-48941A1 ROLLER BEARING ASSEMBLY, TAPERED-DRIVEN GEARROLLER BEARING ASSEMBLY, TAPERED-DRIVEN GEAR
-
4031-48913 BEARING, THRUST-DRIVE SHAFTBEARING, THRUST-DRIVE SHAFT
-
4145-48877 DRIVE SHAFT, INPUTDRIVE SHAFT, INPUT
-
4212-48912 WASHER, THRUST-DRIVE SHAFTWASHER, THRUST-DRIVE SHAFT
-
4315-53325A1 SHIM ASSEMBLY, DRIVE GEAR BEARING TO SPACERSHIM ASSEMBLY, DRIVE GEAR BEARING TO SPACER
-
4425-48910 "O" RING, ADAPTOR FLANGE"O" RING, ADAPTOR FLANGE
-
4525-21836 "O" RING, WATER INLET TUBE"O" RING, WATER INLET TUBE
-
4653869 COVER, SPACER-FRONTCOVER, SPACER-FRONT
-
4727-48892 GASKET, SPACER TO FACE PLATEGASKET, SPACER TO FACE PLATE
-
4848893 PLATE, FACE-SPACER TO WATER PUMPPLATE, FACE-SPACER TO WATER PUMP
-
4947-89984T4 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
5017-8M0034466 PIN, IMPELLER DRIVINGPIN, IMPELLER DRIVING
-
5127-48923 GASKET, FACE PLATE TO WATER PUMPGASKET, FACE PLATE TO WATER PUMP
-
5246-48881A1 WATER PUMP ASSEMBLYWATER PUMP ASSEMBLY
-
5330915 INSERT, WATER PUMPINSERT, WATER PUMP
-
5426-16977 OIL SEAL, WATER PUMPOIL SEAL, WATER PUMP
-
5526-38970 SEAL, WATER PUMP INLETSEAL, WATER PUMP INLET
-
5623-29804T SLEEVE, WATER TUBE GUIDESLEEVE, WATER TUBE GUIDE
-
5711-8267089 NUT, WATER PUMP AND FACE PLATE STUDSNUT, WATER PUMP AND FACE PLATE STUDS
-
5825-30271 SLINGER, WATER PUMP-DRIVE SHAFTSLINGER, WATER PUMP-DRIVE SHAFT
