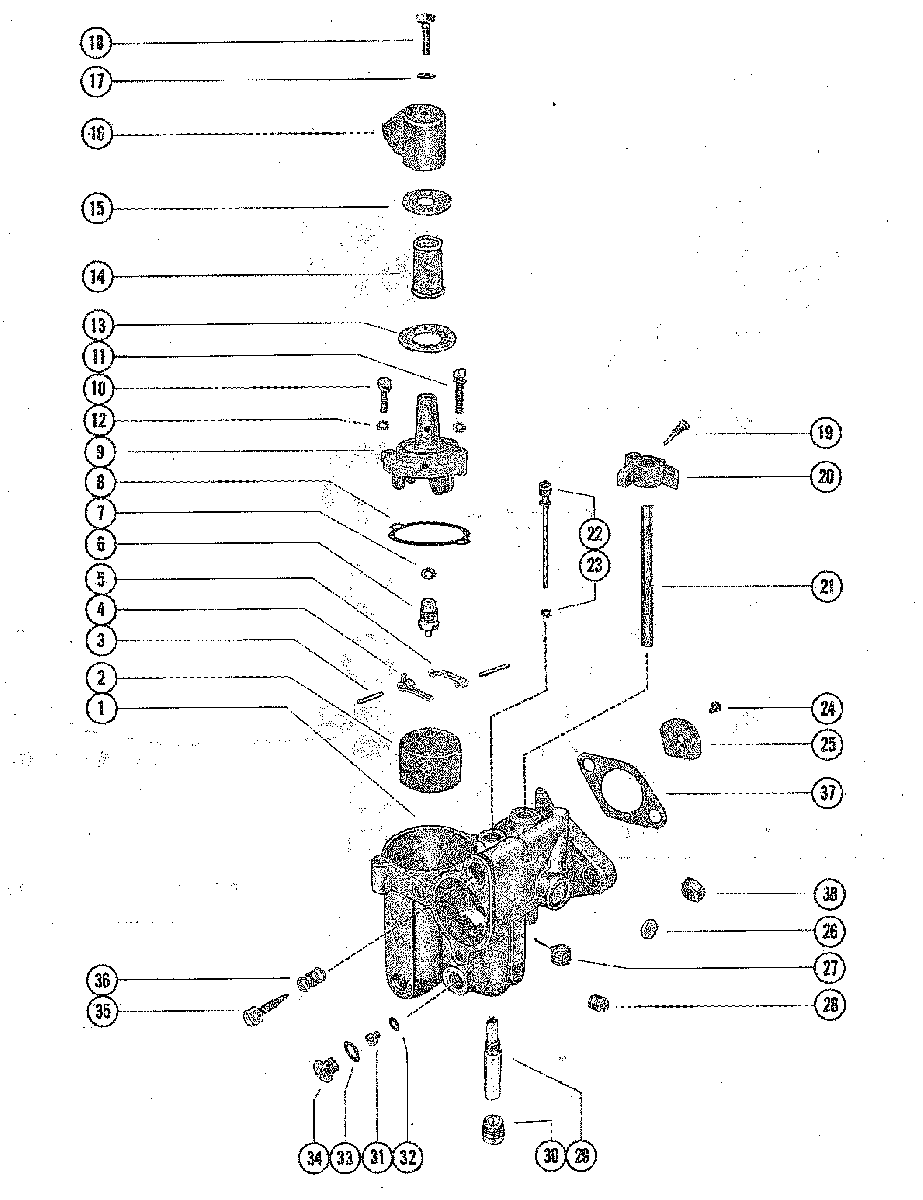

CARBURETOR ASSEMBLY для Mercury - 110 1865779 THRU 2798056
-
№АртикулНазвание
-
11334-1974 CARBURETOR ASSEMBLY, COMP. (KB-5A)CARBURETOR ASSEMBLY, COMP. (KB-5A)
-
11334-3720 CARBURETOR ASSEMBLY, COMP. (KB-8A)CARBURETOR ASSEMBLY, COMP. (KB-8A)
-
11334-4106 CARBURETOR ASSEMBLY, COMP. (KB-11A)CARBURETOR ASSEMBLY, COMP. (KB-11A)
-
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
390-8M0143356 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
490-8M0143356 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
590-8M0143356 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-92581 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
790-8M0143356 GASKET, INLET SEATGASKET, INLET SEAT
-
890-8M0143356 GASKET, FLOAT BOAL COVERGASKET, FLOAT BOAL COVER
-
91399-1133 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
1010-22625 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
1110-25850 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
1010-52195 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
1110-52196 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
1213-26995 LOCKWASHER, FLOAT BOWL COVER SCREWLOCKWASHER, FLOAT BOWL COVER SCREW
-
1390-8M0143356 GASKET, STRAINER COVER (LARGE)GASKET, STRAINER COVER (LARGE)
-
141399-3938 SCREEN, FILTERSCREEN, FILTER
-
1590-8M0143356 GASKET, STRAINGER COVER (SMALL)GASKET, STRAINGER COVER (SMALL)
-
161399-1135 COVER, STRAINERCOVER, STRAINER
-
161399-4791A1 COVER, STRAINGERCOVER, STRAINGER
-
1790-8M0143356 GASKET, STRAINER COVER SCREWGASKET, STRAINER COVER SCREW
-
1810-25822 SCREW, STRAINER COVERSCREW, STRAINER COVER
-
191395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
208146791 LEVER, THROTTLE STOPLEVER, THROTTLE STOP
-
211399-1716 SHAFT, THROTTLESHAFT, THROTTLE
-
2290-8M0143356 TUBE, IDLETUBE, IDLE
-
2390-8M0143356 GASKET, IDLE TUBEGASKET, IDLE TUBE
-
2490-8M0143356 SCREW/LOCKWASHER, THROTTLE SHUTTERSCREW/LOCKWASHER, THROTTLE SHUTTER
-
251399-1270 SHUTTER, THROTTLESHUTTER, THROTTLE
-
251399-3763 SHUTTER, THROTTLESHUTTER, THROTTLE
-
2690-8M0143356 WELCH PLUG,BODY CHANNELWELCH PLUG,BODY CHANNEL
-
2790-8M0143356 SPRING, THROTTLE SHAFT SHAFT RETURNSPRING, THROTTLE SHAFT SHAFT RETURN
-
2810-28845 SCREW, PLUG - BODY CHANNELSCREW, PLUG - BODY CHANNEL
-
2990-8M0143356 MAIN NOZZLEMAIN NOZZLE
-
3010-23178 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
311399-1649 JET, MAIN FUEL (.049) - STANDARDJET, MAIN FUEL (.049) - STANDARD
-
311399-1767 JET, MAIN FUEL (.047) - STANDARDJET, MAIN FUEL (.047) - STANDARD
-
311399-1767 JET, MAIN FUEL (.047) - STANDARDJET, MAIN FUEL (.047) - STANDARD
-
311399-1765 JET, MAIN FUEL (.045)JET, MAIN FUEL (.045)
-
311399-1864 JET, MAIN FUEL (.043)JET, MAIN FUEL (.043)
-
3290-8M0143356 GASKET, MAIN FUEL JETGASKET, MAIN FUEL JET
-
3390-8M0143356 GASKET, JET CHANNEL PLUG SCREWGASKET, JET CHANNEL PLUG SCREW
-
3410-28405 SCREW, PLUG - MAIN FUEL JET CHANNELSCREW, PLUG - MAIN FUEL JET CHANNEL
-
351399-1989 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
351399-3740 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
3690-8M0143356 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
--1399-1717 GASKET AND PACKING SETGASKET AND PACKING SET
-
--1395-92621 REPAIR PARTS KITREPAIR PARTS KIT
-
--1395-92621 REPAIR PARTS KITREPAIR PARTS KIT
-
--1399-4206 REPAIR PARTS KITREPAIR PARTS KIT
-
3727-63309 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3811-20184 NUT, CARBURETOR MOUNTING STUDSNUT, CARBURETOR MOUNTING STUDS
