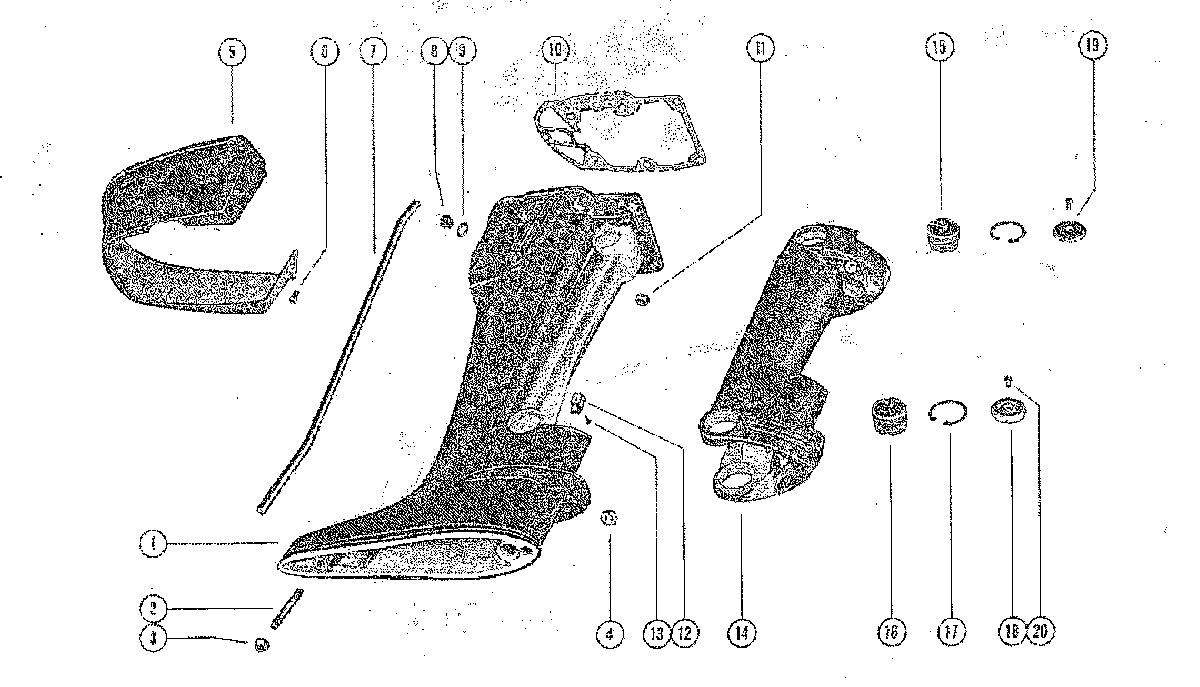

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 110 1865779 THRU 2798056
-
№АртикулНазвание
-
11556-2627A2 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
-
11558-2641A1 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
-
11556-4030A1 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
-
11558-4031A1 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
-
216-66373 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSINGSTUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
-
311-8M0042636 NUT, DRIVE SHAFT HOUSING STUDNUT, DRIVE SHAFT HOUSING STUD
-
411-82670911 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD
-
539025 COVER, TRIM-DRIVE SHAFT HOUSINGCOVER, TRIM-DRIVE SHAFT HOUSING
-
610-25764 SCREW, TRIM COVER TO BOTTOM COWL (7/16")SCREW, TRIM COVER TO BOTTOM COWL (7/16")
-
732-39061 TUBE, WATER OUTLET (SHORT SHAFT)TUBE, WATER OUTLET (SHORT SHAFT)
-
732-39062 TUBE, WATER OUTLET (LONG SHAFT)TUBE, WATER OUTLET (LONG SHAFT)
-
810-79953Q04 SCREW, FLUSH-DRIVE SHAFT HOUSINGSCREW, FLUSH-DRIVE SHAFT HOUSING
-
912-191833 WASHER, SEALING-FLUSH SCREWWASHER, SEALING-FLUSH SCREW
-
1027-39050 GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSINGGASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING
-
1111-20184 NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDSNUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS
-
1111-20184 NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDSNUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS
-
1111-24652 NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDSNUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS
-
1247259A1 BLOCK, DRIVE SHAFT (LONG SHAFT)BLOCK, DRIVE SHAFT (LONG SHAFT)
-
1247259A1 BLOCK, DRIVE SHAFT (LONG SHAFT)
SERIAL 00000000-02196388BLOCK, DRIVE SHAFT (LONG SHAFT)
SERIAL 00000000-02196388 -
1247259A1 BLOCK ASSEMBLY, DRIVE SHAFT (LONG SHAFT)
SERIAL 02196389-09999999BLOCK ASSEMBLY, DRIVE SHAFT (LONG SHAFT)
SERIAL 02196389-09999999 -
1310-47225 SCREW, BLOCK ASSEMBLY TO DRIVE SHAFT HOUSING (LONG SHAFT)
SERIAL 02196389-09999999SCREW, BLOCK ASSEMBLY TO DRIVE SHAFT HOUSING (LONG SHAFT)
SERIAL 02196389-09999999 -
141559-8448A2 SADDLESADDLE
-
1532021 BUMPER, LOWER THRUST-SADDLEBUMPER, LOWER THRUST-SADDLE
-
1679896A1 MOUNT ASSEMBLY, UPPER AND LOWER
FOR MERC 110-5, 110-6, 110-7, 110-8 AND 110-9 LONG SHAFT ENGINES, REPLACE 2 UPPER MOUNT ASSEMBLIES (A-30646A2) WITH 2 A-30646A3 MOUNT ASSEMBLIESMOUNT ASSEMBLY, UPPER AND LOWER
FOR MERC 110-5, 110-6, 110-7, 110-8 AND 110-9 LONG SHAFT ENGINES, REPLACE 2 UPPER MOUNT ASSEMBLIES (A-30646A2) WITH 2 A-30646A3 MOUNT ASSEMBLIES -
1753-26406 RING, RETAINING-UPPER AND LOWER MOUNTRING, RETAINING-UPPER AND LOWER MOUNT
-
1871490 COVER, LOWER MOUNTCOVER, LOWER MOUNT
-
1971490 COVER, UPPER MOUNTCOVER, UPPER MOUNT
-
1871490 COVER, LOWER MOUNTCOVER, LOWER MOUNT
-
1871490 COVER, LOWER MOUNTCOVER, LOWER MOUNT
-
1871490 COVER, LOWER MOUNTCOVER, LOWER MOUNT
-
1971490 COVER, UPPER MOUNTCOVER, UPPER MOUNT
-
2010-30675 SCREW, UPPER AND LOWER MOUNT COVER TO MOUNT (3/8")SCREW, UPPER AND LOWER MOUNT COVER TO MOUNT (3/8")
-
2010-30675 SCREW, UPPER AND LOWER MOUNT COVER TO MOUNT (3/8")SCREW, UPPER AND LOWER MOUNT COVER TO MOUNT (3/8")
-
2010-45817 SCREW, LOWER MOUNT COVER TO MOUNT (7/16")SCREW, LOWER MOUNT COVER TO MOUNT (7/16")
