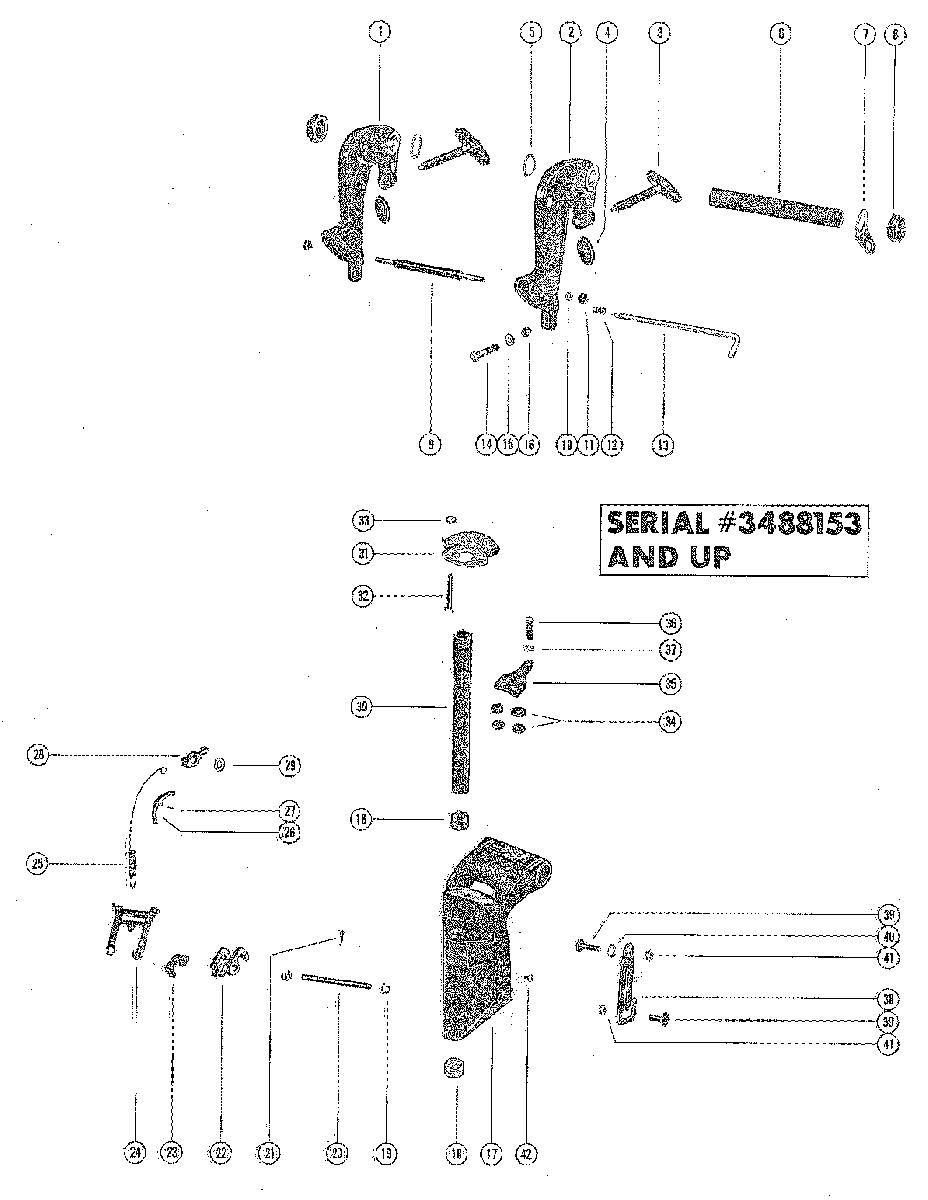

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 110 3263263 THRU 3795657
-
№АртикулНазвание
-
11468-5570A3 CLAMP BRACKET ASSEMBLY (PORT)CLAMP BRACKET ASSEMBLY (PORT)
-
21467-5571A3 CLAMP BRACKET ASSEMBLY (STARBOARD)CLAMP BRACKET ASSEMBLY (STARBOARD)
-
359170A3 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
412-26227 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
512-52864 WASHER, TILT TUBE - CLAMP TO SWIVEL BRACKETWASHER, TILT TUBE - CLAMP TO SWIVEL BRACKET
-
645757 TILT TUBE, CLAMP TO SWIVEL BRACKETTILT TUBE, CLAMP TO SWIVEL BRACKET
-
754-8M0085928 CLIP, SAFETY CHAIN - TILT TUBECLIP, SAFETY CHAIN - TILT TUBE
-
811-858869 NUT, TILT TUBE FASTENINGNUT, TILT TUBE FASTENING
-
916-59622 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
1013-26992 LOCKWASHER, CLAMP BRACKET STUDLOCKWASHER, CLAMP BRACKET STUD
-
1111-29598 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
1224-62143 SPRING, TILT LOCK PINSPRING, TILT LOCK PIN
-
1317-55952A1 TILT LOCK PIN ASSEMBLYTILT LOCK PIN ASSEMBLY
-
1410-67982 BOLT, CLAMP BRACKET TO BOATBOLT, CLAMP BRACKET TO BOAT
-
1512-67983 WASHER, CLAMP BRACKET SCREWWASHER, CLAMP BRACKET SCREW
-
1611-8267098 NUT, CLAMP BRACKET SCREWNUT, CLAMP BRACKET SCREW
-
171471-5822A1 SWIVEL BRACKETSWIVEL BRACKET
-
1823-64028 BUSHING, SWIVEL BRACKETBUSHING, SWIVEL BRACKET
-
1923-26841 BUSHING, NYLON - REVERSE LOCK LEVER RODBUSHING, NYLON - REVERSE LOCK LEVER ROD
-
2063551 ROD, REVERSE LOCK TO SWIVEL BRACKETROD, REVERSE LOCK TO SWIVEL BRACKET
-
2118-45882 COTTER PIN, REVERSE LOCK LEVER TO RODCOTTER PIN, REVERSE LOCK LEVER TO ROD
-
2263628T LEVER, REVERSE LOCKLEVER, REVERSE LOCK
-
2361007 RETAINER, ROD - REVERSE LOCKRETAINER, ROD - REVERSE LOCK
-
2463559T BRACKET, TROLLBRACKET, TROLL
-
2524-63630 SPRING, EXTENSION - TROLL BRACKETSPRING, EXTENSION - TROLL BRACKET
-
2663554 GUIDE, SPRINGGUIDE, SPRING
-
2717-25319 ROLL PIN, SPRING GUIDEROLL PIN, SPRING GUIDE
-
2879744 LEER, CONTROL - TROLL BRACKETLEER, CONTROL - TROLL BRACKET
-
2913-63631 WASHER, WAVE - TROLL BRACKET LEVERWASHER, WAVE - TROLL BRACKET LEVER
-
3066559 SWIVEL PIN, SWIVEL BRACKET TO SADDLESWIVEL PIN, SWIVEL BRACKET TO SADDLE
-
3177334 CO-PILOT DISCCO-PILOT DISC
-
3210-30679 SCREW, CO-PILOT DISC TO SADDLE (2 1/4")SCREW, CO-PILOT DISC TO SADDLE (2 1/4")
-
3311-20184 NUT, CO-PILOT DISC FASTENING SCREWNUT, CO-PILOT DISC FASTENING SCREW
-
3420203 DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKETDISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET
-
3563647 PLATE, CLAMP - CO-PILOTPLATE, CLAMP - CO-PILOT
-
3610-62506 SCREW, CLAMP PLATE ADJUSTING (1 5/8")SCREW, CLAMP PLATE ADJUSTING (1 5/8")
-
3712-35462 WASHER, CLAMP PLATE ADJUSTING SCREWWASHER, CLAMP PLATE ADJUSTING SCREW
-
3863310A1 LEVER ASSEMBLY, TILT STOPLEVER ASSEMBLY, TILT STOP
-
3910-41433 SCREW, TILT STOP LEVERSCREW, TILT STOP LEVER
-
4013-31030 WASHER, WAVE - LEVER ANCHOR SCREWWASHER, WAVE - LEVER ANCHOR SCREW
-
4111-826709109 NUT, TILT STOP LEVER SCREWNUT, TILT STOP LEVER SCREW
-
4210-36398 SCREW, SWIVEL BRACKETSCREW, SWIVEL BRACKET
