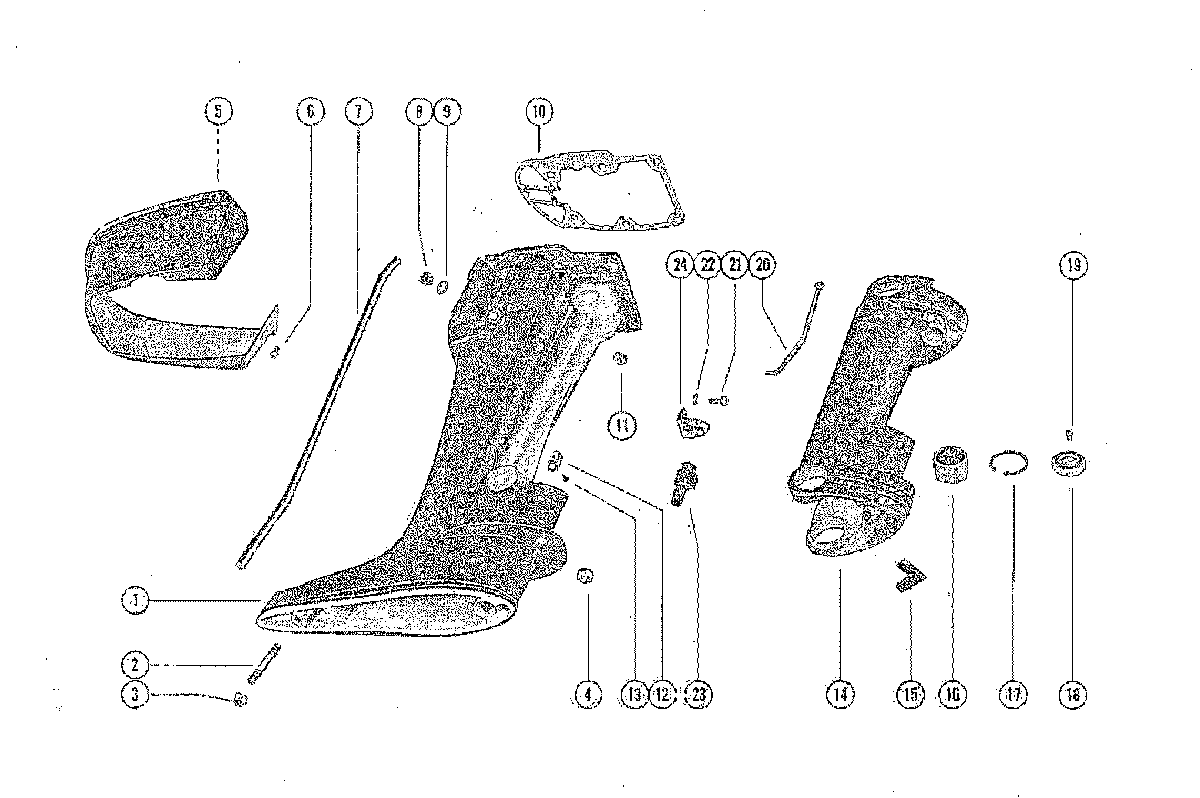

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 110 3263263 THRU 3795657
-
№АртикулНазвание
-
11556-4030A1 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
SERIAL 00000000-03482752DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
SERIAL 00000000-03482752 -
11558-4031A1 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
SERIAL 00000000-03482752DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
SERIAL 00000000-03482752 -
11556-8451A1 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
SERIAL 03482753-09999999DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
SERIAL 03482753-09999999 -
11558-4902A2 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
SERIAL 03482753-09999999DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
SERIAL 03482753-09999999 -
216-66373 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 5/16")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 5/16")
-
311-8M0042636 NUT, DRIVE SHAFT HOUSING STUD (3/8 - 24)NUT, DRIVE SHAFT HOUSING STUD (3/8 - 24)
-
411-82670911 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD (5/16 - 24)NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD (5/16 - 24)
-
539025 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
610-25764 SCREW, TRIM COVER TO BOTTOM COWL (7/16")SCREW, TRIM COVER TO BOTTOM COWL (7/16")
-
732-39061 TUBE, WATER OUTLET (SHORT SHAFT)TUBE, WATER OUTLET (SHORT SHAFT)
-
732-39062 TUBE, WATER OUTLET (LONG SHAFT)TUBE, WATER OUTLET (LONG SHAFT)
-
810-79953Q04 SCREW, FLUSH - DRIVE SHAFT HOUSINGSCREW, FLUSH - DRIVE SHAFT HOUSING
-
912-191833 WASHER, SEALING - FLUSH SCREWWASHER, SEALING - FLUSH SCREW
-
1027-39050 GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSINGGASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING
-
1111-20184 NUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDSNUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDS
-
1111-24652 NUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDSNUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDS
-
1247259A1 BLOCK ASSEMBLY, DRIVE SHAFT- LONG SHAFTBLOCK ASSEMBLY, DRIVE SHAFT- LONG SHAFT
-
1310-47225 SCREW, BLOCK TO DRIVE SHAFT HSG. (1 1/4") - LONG SHAFTSCREW, BLOCK TO DRIVE SHAFT HSG. (1 1/4") - LONG SHAFT
-
141559-8448A2 SADDLE
SERIAL 00000000-03482752SADDLE
SERIAL 00000000-03482752 -
1532021 BUMPER, THRUST - SADDLE
SERIAL 00000000-03482752BUMPER, THRUST - SADDLE
SERIAL 00000000-03482752 -
141559-8448A2 SADDLE
SERIAL 03482753-09999999SADDLE
SERIAL 03482753-09999999 -
1564076 BUMPER, THRUST - SADDLE
SERIAL 03482753-09999999BUMPER, THRUST - SADDLE
SERIAL 03482753-09999999 -
1679896A1 MOUNT ASSEMBLY (LOWER AND UPPER)
FOR MERC 110L LONG SHAFT ENGINES, REPLACE 2 LOWER MOUNT ASSEMBLIES (A-30646A2) WITH 2 A-30646A3 MOUNT ASSEMBLIESMOUNT ASSEMBLY (LOWER AND UPPER)
FOR MERC 110L LONG SHAFT ENGINES, REPLACE 2 LOWER MOUNT ASSEMBLIES (A-30646A2) WITH 2 A-30646A3 MOUNT ASSEMBLIES -
1753-26406 RING, RETAINING - UPPER AND LOWER MOUNTRING, RETAINING - UPPER AND LOWER MOUNT
-
1871490 COVER, LOWER MOUNTCOVER, LOWER MOUNT
-
1910-45817 SCREW, LOWER MOUNT COVER TO MOUNT (7/16")SCREW, LOWER MOUNT COVER TO MOUNT (7/16")
-
2071057 LINK ROD, REVERSE LOCK SERIAL # AND UP
SERIAL 03482753-09999999LINK ROD, REVERSE LOCK SERIAL # AND UP
SERIAL 03482753-09999999 -
2110-65414 SCREW, CAM RETAINER TO DRIVE SHAFT HOUSING (3/4")
SERIAL 03482753-09999999SCREW, CAM RETAINER TO DRIVE SHAFT HOUSING (3/4")
SERIAL 03482753-09999999 -
2213-26992 LOCKWASHER, CAM RETAINER SCREW
SERIAL 03482753-09999999LOCKWASHER, CAM RETAINER SCREW
SERIAL 03482753-09999999 -
2365216 CAM, REVERSE LOCK
SERIAL 03482753-09999999CAM, REVERSE LOCK
SERIAL 03482753-09999999 -
2472007 RETAINER, REVERSE LOCK CAM
SERIAL 03482753-09999999RETAINER, REVERSE LOCK CAM
SERIAL 03482753-09999999
