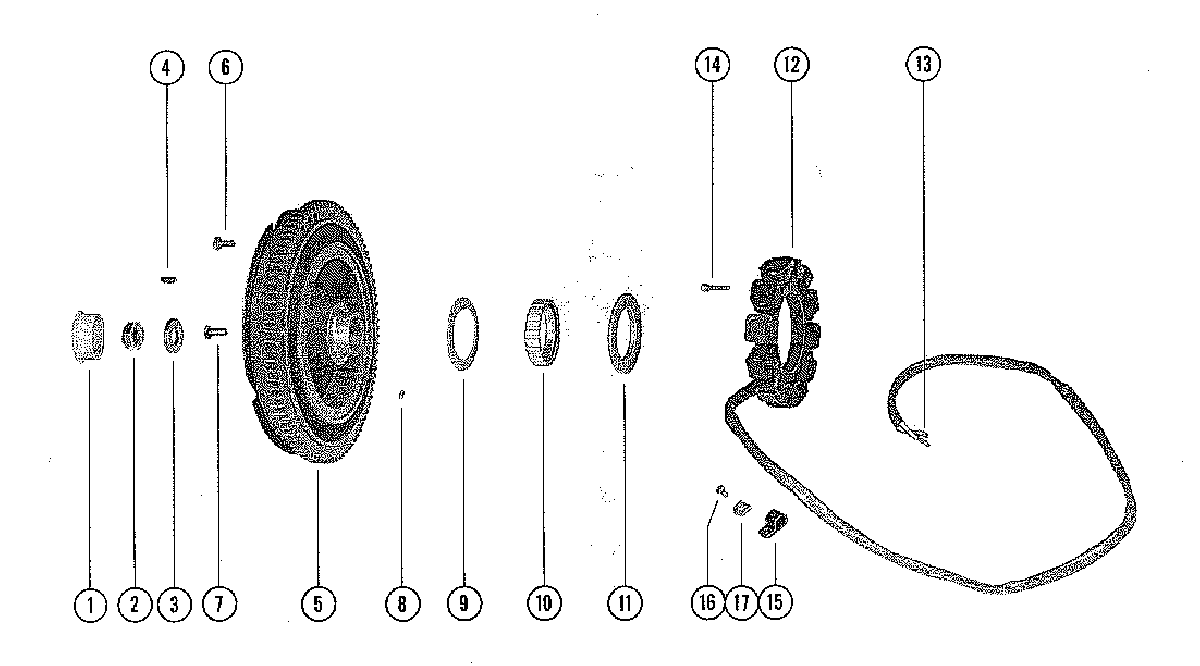

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 1100 1870204 THRU 2314955
-
№АртикулНазвание
-
119-45907 PLUG, FLYWHEEL PULLER THREADSPLUG, FLYWHEEL PULLER THREADS
-
211-22339 NUT< FLYWHEELNUT< FLYWHEEL
-
312-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
428-45554 KEY, FLYWHEEL DRIVE
SERIAL 00000000-02101742KEY, FLYWHEEL DRIVE
SERIAL 00000000-02101742 -
428-45554 KEY, FLYWHEEL DRIVE
SERIAL 02101743-09999999KEY, FLYWHEEL DRIVE
SERIAL 02101743-09999999 -
5225-2494A15 FLYWHEEL ASSEMBLY, COMPLETEFLYWHEEL ASSEMBLY, COMPLETE
-
610-32417 SCREW, FLEXIBLE PLATE TO FLYWHEELSCREW, FLEXIBLE PLATE TO FLYWHEEL
-
710-32417 SCREW, PLATE AND HUB TO FLEXIBLE PLATESCREW, PLATE AND HUB TO FLEXIBLE PLATE
-
817-26618 PIN, DOWL - PULLEY TO FLYWHEELPIN, DOWL - PULLEY TO FLYWHEEL
-
929788 FLANGE, FLYWHEEL PULLEYFLANGE, FLYWHEEL PULLEY
-
1030306 PULLEY, FLYWHEELPULLEY, FLYWHEEL
-
1129787 HUB, FLYWHEEL PULLEYHUB, FLYWHEEL PULLEY
-
12398-2188 STATOR, ALTERNATORSTATOR, ALTERNATOR
-
1330050 TERMINAL, STATOR LEAD WIRETERMINAL, STATOR LEAD WIRE
-
1410-57021 SCREW, STARTER TO UPPER END CAPSCREW, STARTER TO UPPER END CAP
-
1554-22740 CLIP, STATOR LEAD FASTENING (3/8")CLIP, STATOR LEAD FASTENING (3/8")
-
1554-22875 CLIP, STATOR LEAD FASTENING (7/16")CLIP, STATOR LEAD FASTENING (7/16")
-
1554-26550 CLIP, STATOR/WIRING HARNESS LEADS FASTENING (5/16")CLIP, STATOR/WIRING HARNESS LEADS FASTENING (5/16")
-
1554-26550 STATORWIRING HARNESS LEADS FASTENING (5/16")STATORWIRING HARNESS LEADS FASTENING (5/16")
-
1610-8M0113176 SCREW, STATOR LEAD CLIP FASTENING (10-24 X 3/8")SCREW, STATOR LEAD CLIP FASTENING (10-24 X 3/8")
-
1610-8M0113176 SCREW, STATOR LEAD CLIP FASTENING (10-24 X 3/8")SCREW, STATOR LEAD CLIP FASTENING (10-24 X 3/8")
-
1610-8M0113176 SCREW, STATOR LEAD CLIP FASTENING (10-24 X 3/8")SCREW, STATOR LEAD CLIP FASTENING (10-24 X 3/8")
-
1610-69079 SCREW, STATOR LEAD CLIP FASTENING (7/16")SCREW, STATOR LEAD CLIP FASTENING (7/16")
-
1610-69079 SCREW, STATOR LEAD CLIP FASTENING (7/16")SCREW, STATOR LEAD CLIP FASTENING (7/16")
-
178M0084613 "D" WASHER, CLIP FASTENING SCREW"D" WASHER, CLIP FASTENING SCREW
-
178M0084613 "D" WASHER, CLIP FASTENING SCREW"D" WASHER, CLIP FASTENING SCREW
