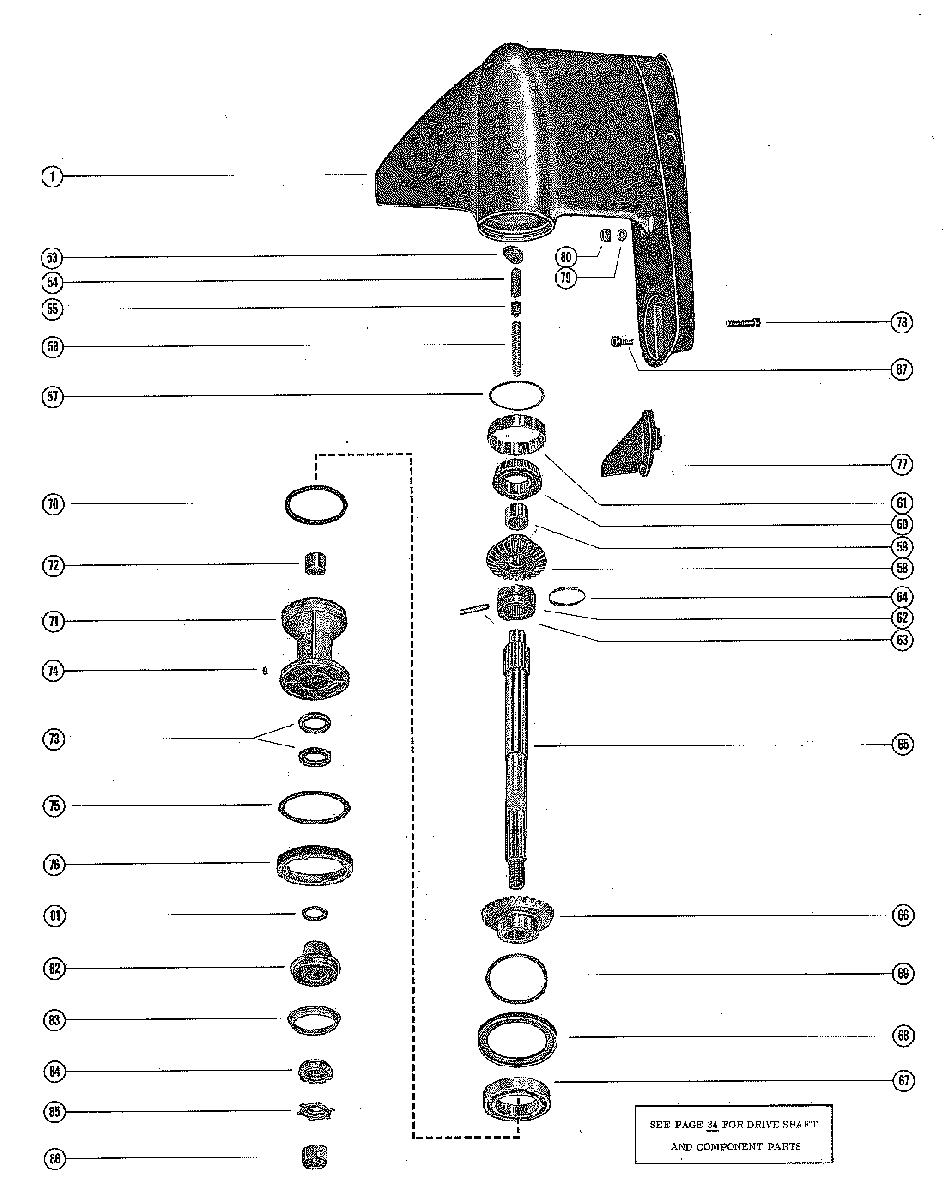

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 1100 1870204 THRU 2314955
-
№АртикулНазвание
-
-1623-3912A8 GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) SEE NOTE BELOWGEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) SEE NOTE BELOW
-
-1623-3912A9 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) SEE NOTE BELOWGEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) SEE NOTE BELOW
-
-1623-3912A8 GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) SEE NOTE BELOWGEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) SEE NOTE BELOW
-
-1623-3912A9 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) SEE NOTE BELOWGEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) SEE NOTE BELOW
-
11623-5244A14 GEAR HOUSING ASSEMBLY SEE PAGE 34 FOR PARTS BREAKDOWNGEAR HOUSING ASSEMBLY SEE PAGE 34 FOR PARTS BREAKDOWN
-
11623-5244A14 GEAR HOUSING ASSEMBLY SEE PAGE 34 FOR PARTS BREAKDOWNGEAR HOUSING ASSEMBLY SEE PAGE 34 FOR PARTS BREAKDOWN
-
53760394 CAM, SHIFTCAM, SHIFT
-
5430625 FOLLOWER, CAMFOLLOWER, CAM
-
5530624 SLIDE, CROSS PINSLIDE, CROSS PIN
-
5624-30622 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5715-30923A1 SHIM, BEARING OUTER RACE TO GEAR HOUSINGSHIM, BEARING OUTER RACE TO GEAR HOUSING
-
--43-53100A3 FORWARD GEAR ASSEMBLY, COMPLETEFORWARD GEAR ASSEMBLY, COMPLETE
-
5843-53100A3 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
5931-30895T BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
6031-30894A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
6131-31092 CUP, TAPERED ROLLER BEARINGCUP, TAPERED ROLLER BEARING
-
6252-822539T RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
6317-8M0100263 PIN, CROSS - RRATCHET TO PROPELLER SHAFTPIN, CROSS - RRATCHET TO PROPELLER SHAFT
-
6424-30893 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6544-47900A2 SHAFT, PROPELLERSHAFT, PROPELLER
-
--43-31887 REVERSE GEAR ASSEMBLY, COMPLETEREVERSE GEAR ASSEMBLY, COMPLETE
-
6643-31887 REVERSE GEAR ASSEMBLYREVERSE GEAR ASSEMBLY
-
6730-31265 BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
6812-71143A1 WASHER, TRHUST - BEARING CARRIER TO GEAR HOUSINGWASHER, TRHUST - BEARING CARRIER TO GEAR HOUSING
-
6915-29955A1 SHIM, THRUST WASHER TO GEAR HOUSINGSHIM, THRUST WASHER TO GEAR HOUSING
-
7025-29976 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
7131284T1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
7231-30956T BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
7326-76868 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
7428-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
7512-29957 WASHER, GEAR HOUSING COVERWASHER, GEAR HOUSING COVER
-
7652699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7797-31640Q4 TRIM TABE, GEAR HOUSINGTRIM TABE, GEAR HOUSING
-
7810-32470 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
-
7912-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
8011-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
8112-31013 WASHER, THRUST - BEARING CARRIERWASHER, THRUST - BEARING CARRIER
-
8230581A1 THRUST HUB AND WASHER ASSEMBLYTHRUST HUB AND WASHER ASSEMBLY
-
8312-29590 WASHER, CUPPED - THRUST HUBWASHER, CUPPED - THRUST HUB
-
8412-31211Q03 WASHER, SPLINED - PROPELLER NUTWASHER, SPLINED - PROPELLER NUT
-
8514-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
8611-29594 NUT, PROPELLERNUT, PROPELLER
-
8710-34353 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
