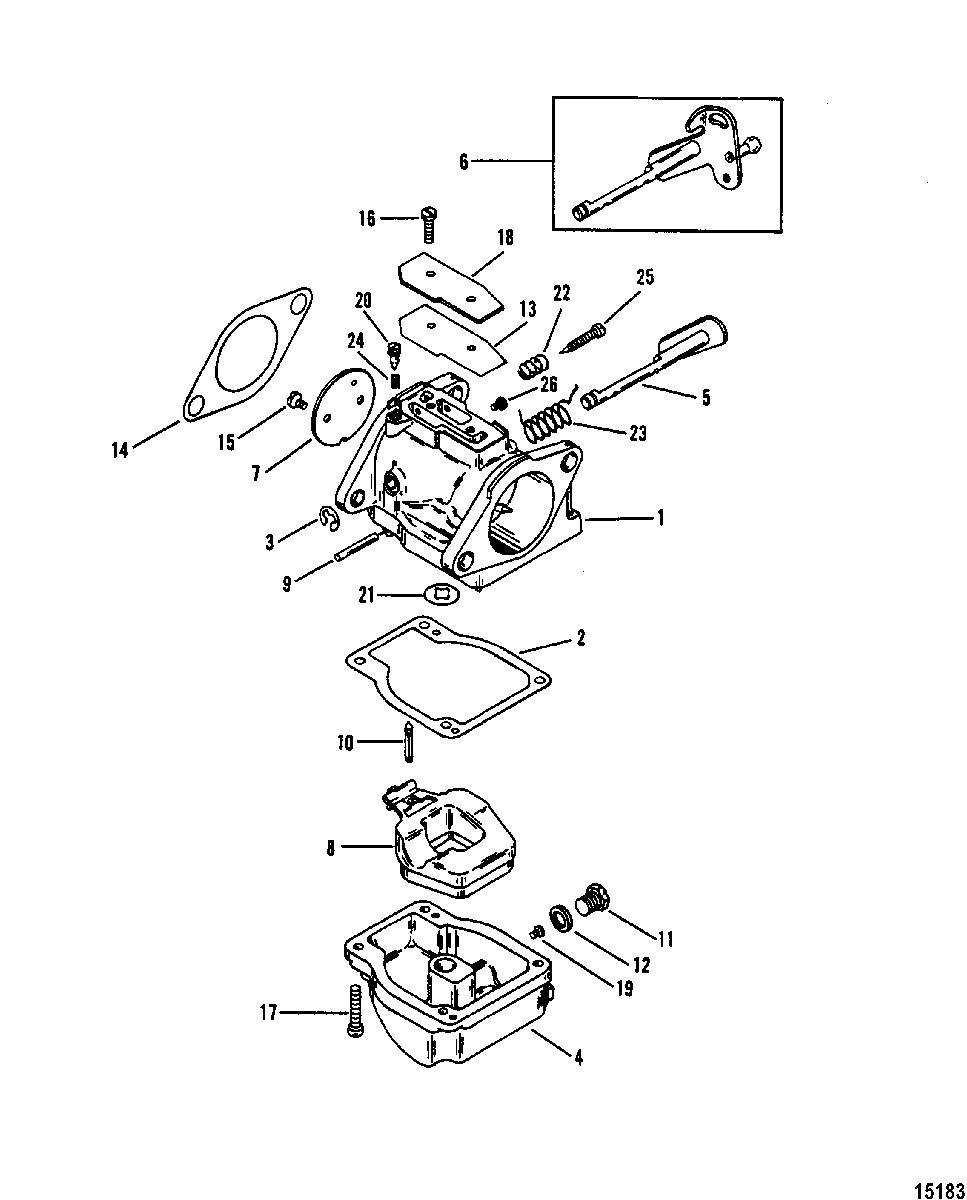

Carburetor для Mercury - 115 (4 CYL.) 0C100000 THRU 0D283221
-
№АртикулНазвание
-
13301-9532A12 CARBURETOR, 100 WME-20BCARBURETOR, 100 WME-20B
-
13301-9532A13 CARBURETOR, 100 WME-20BCARBURETOR, 100 WME-20B
-
13301-9532A14 CARBURETOR, 100 WME-20BCARBURETOR, 100 WME-20B
-
13301-9532A15 CARBURETOR, 100 WME-20BCARBURETOR, 100 WME-20B
-
13301-9012T77 CARBURETOR, 115-WME-21BCARBURETOR, 115-WME-21B
-
13301-9012T78 CARBURETOR, 115-WME-21BCARBURETOR, 115-WME-21B
-
13301-9012T79 CARBUBETOR, 115-WME-21BCARBUBETOR, 115-WME-21B
-
13301-9012T80 CARBURETOR, 115-WME-21BCARBURETOR, 115-WME-21B
-
2NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
3NSS NOT SOLD SEPARATE, Retaining RingNOT SOLD SEPARATE, Retaining Ring
-
41395-811693 BOWL, FuelBOWL, Fuel
-
41395-811693 BOWL, Fuel (WME-20A&B/21A&B)BOWL, Fuel (WME-20A&B/21A&B)
-
51395-9591 SHAFT, Throttle (WME-1/3/4)SHAFT, Throttle (WME-1/3/4)
-
619270 SHAFT, Throttle (WME-2)SHAFT, Throttle (WME-2)
-
71395-9724 VALVE, Throttle (100)VALVE, Throttle (100)
-
7813619 VALVE, Throttle (115)VALVE, Throttle (115)
-
81395-9594 FLOATFLOAT
-
9NSS NOT SOLD SEPARATE, Float ShaftNOT SOLD SEPARATE, Float Shaft
-
101395-879194011 VALVE, Inlet NeedleVALVE, Inlet Needle
-
111395-811694 PLUGPLUG
-
111395-811694 PLUG KIT (WME-20A&B/21A&B)PLUG KIT (WME-20A&B/21A&B)
-
12NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
13NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
1427-151724 GASKETGASKET
-
15NSS NOT SOLD SEPARATE, ScrewNOT SOLD SEPARATE, Screw
-
161395-9597 SCREW (WME-11/14)SCREW (WME-11/14)
-
161395-811220 SCREW, Cover Plate (WME-20/21)SCREW, Cover Plate (WME-20/21)
-
171395-808612 SCREWSCREW
-
181395-9598 COVER PLATE (WME-11/14)COVER PLATE (WME-11/14)
-
181395-811221 COVER PLATE (WME-20/21)COVER PLATE (WME-20/21)
-
191399-5225 JET, Main (.054) (100)JET, Main (.054) (100)
-
191399-5213 JET, Main (.056) (100)JET, Main (.056) (100)
-
191395-6680 JET, (.078) (WME1/2)-115 WME-14JET, (.078) (WME1/2)-115 WME-14
-
191399-3796 JET, (.076) (WME 3/4) -115 WME-14JET, (.076) (WME 3/4) -115 WME-14
-
191399-3796 JET, (.076) (115)JET, (.076) (115)
-
191395-6680 JET, (.078) (115)JET, (.078) (115)
-
20NSS NOT SOLD SEPARATE, Idle NeedleNOT SOLD SEPARATE, Idle Needle
-
21NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
22NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
23NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
24NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
25NSS NOT SOLD SEPARATE, Idle NeedleNOT SOLD SEPARATE, Idle Needle
-
26NSS NOT SOLD SEPARATE, PlugNOT SOLD SEPARATE, Plug
-
-1395-8112231 GASKET KIT (WME-11/14)GASKET KIT (WME-11/14)
-
-1395-8112231 GASKET SET, Carburetor (WME-20/21)GASKET SET, Carburetor (WME-20/21)
-
-1395-8236354 REPAIR KIT (WME-11/14) And (WME-20/21)REPAIR KIT (WME-11/14) And (WME-20/21)
-
-27-13461A99 GASKET SETGASKET SET
