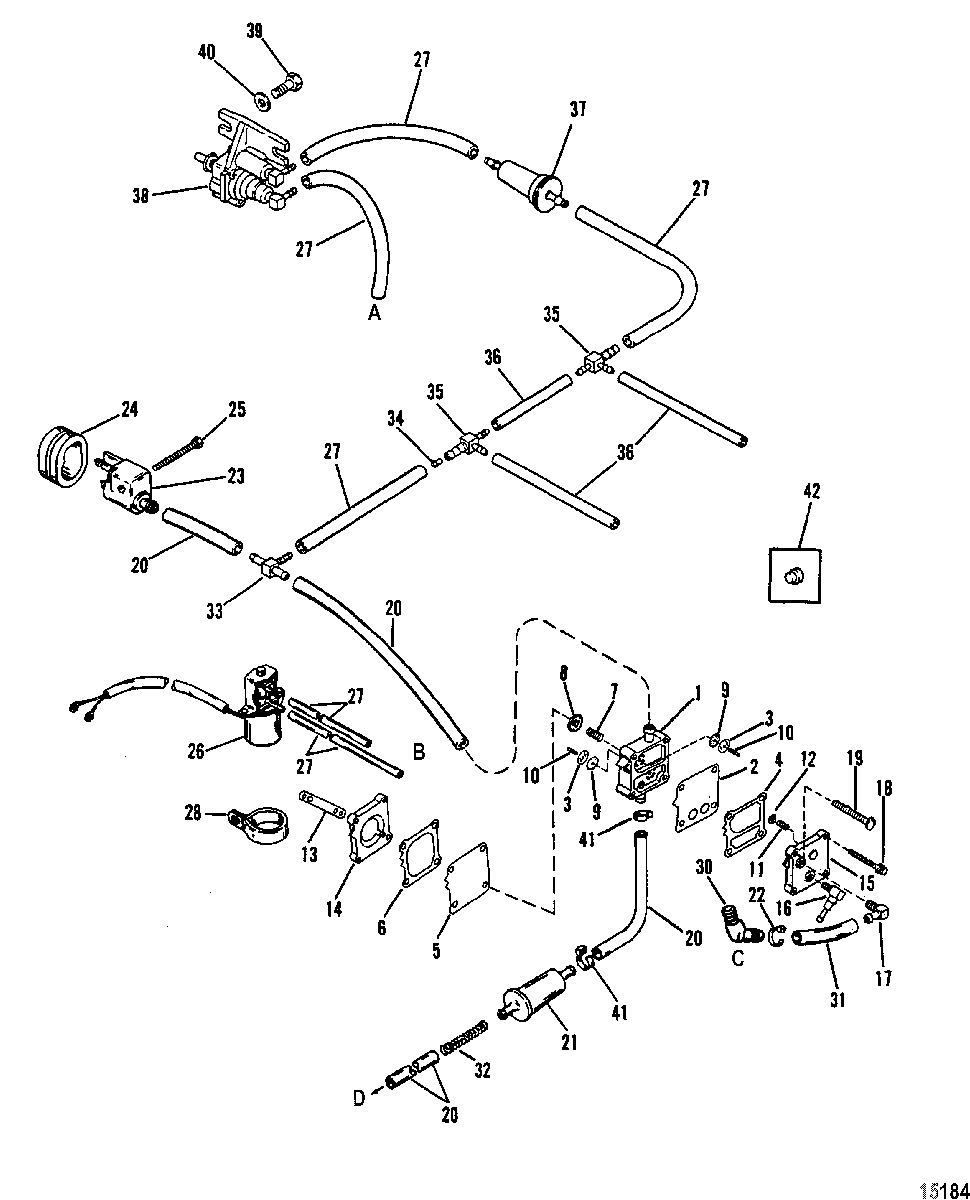

Fuel Pump(Use With 90 Degree Check Valve Reference #16) для Mercury - 115 (4 CYL.) 0C100000 THRU 0D283221
-
№АртикулНазвание
-
114360A78 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
242909A4 DIAPHRAGM KITDIAPHRAGM KIT
-
3NSS NOT SOLD SEPARATE, Check ValveNOT SOLD SEPARATE, Check Valve
-
4NSS NOT SOLD SEPARATE, Gasket, BoostNOT SOLD SEPARATE, Gasket, Boost
-
5NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
6NSS NOT SOLD SEPARATE, Gasket, PulseNOT SOLD SEPARATE, Gasket, Pulse
-
7NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
8NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
9NSS NOT SOLD SEPARATE, Check ValveNOT SOLD SEPARATE, Check Valve
-
10NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
11NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
12NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
1327-987691 GASKETGASKET
-
1498768 BASEBASE
-
1598775A1 PLATEPLATE
-
1621-424811 CHECK VALVECHECK VALVE
-
1722-19688 FITTINGFITTING
-
1810-82104540 SCREWSCREW
-
1910-40057134 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
2032-8M0108349 TUBING
(D = To Carburetor)TUBING
(D = To Carburetor) -
2135-816296Q2 FILTER, FuelFILTER, Fuel
-
2254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2269355 TIE STRAP, (5.50 Inches)TIE STRAP, (5.50 Inches)
-
2322-816856Q3 CONNECTOR ASSEMBLY, Fuel - PlasticCONNECTOR ASSEMBLY, Fuel - Plastic
-
2425-145091 GROMMETGROMMET
-
2510-4010635 SCREW, (M6 x 35) Stainless SteelSCREW, (M6 x 35) Stainless Steel
-
2689-819503A2 VALVE, EnrichnerVALVE, Enrichner
-
2732-1430165 TUBING, (38.00 Inches Bulk)
(A = To Lower Tee) (B = To Upper Tee)TUBING, (38.00 Inches Bulk)
(A = To Lower Tee) (B = To Upper Tee) -
2810-F1887 CLAMPCLAMP
-
3022-19688 FITTING
(C = To Crankcase)FITTING
(C = To Crankcase) -
3132-8M0108355 LINE, (57.00 Inches Bulk)LINE, (57.00 Inches Bulk)
-
3224-68434 SPRING, Old DesignSPRING, Old Design
-
3322-17607 TEE FITTINGTEE FITTING
-
3419-17608 FLOW RESTRICTORFLOW RESTRICTOR
-
3522-830570 TEE FITTINGTEE FITTING
-
3632-892024122 TUBING, (20.00 Feet Bulk)TUBING, (20.00 Feet Bulk)
-
3735-8M0042285 FILTER, FuelFILTER, Fuel
-
3814687A4 PUMP ASSEMBLY, Accelerator, Repair Kit, 1395-811287PUMP ASSEMBLY, Accelerator, Repair Kit, 1395-811287
-
3910-4009416 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4012-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
4154-13791 CLAMP, (15.7), Old Design, New Design Use Reference Number 22CLAMP, (15.7), Old Design, New Design Use Reference Number 22
-
4222-56800 PLUG, Pipe (.0625-27), Non Oil InjectionPLUG, Pipe (.0625-27), Non Oil Injection
-
-42909A4 DIAPHRAGM KITDIAPHRAGM KIT
-
-27-13461A99 GASKET SETGASKET SET
