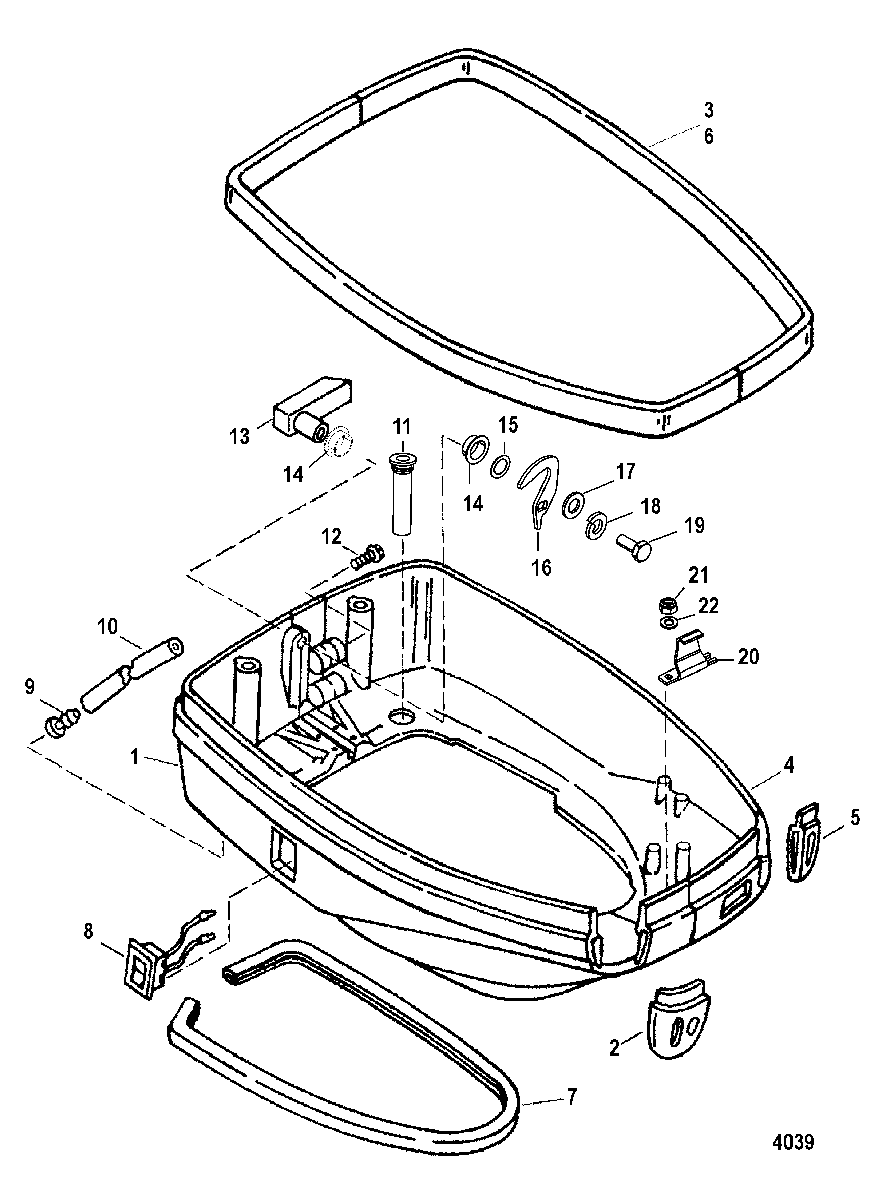

Bottom Cowl для Mercury - 115 (4 CYL.) 0T980000 THRU 0T999999
-
№АртикулНазвание
-
1100-8M0113918 BOTTOM COWL ASSEMBLY, StarboardBOTTOM COWL ASSEMBLY, Starboard
-
225-822556003 GROMMETGROMMET
-
38M0109216 SEAL, (36.00 Inches)SEAL, (36.00 Inches)
-
4100-8M0113919 BOTTOM COWL ASSEMBLY, PortBOTTOM COWL ASSEMBLY, Port
-
525-822555001 GROMMETGROMMET
-
68M0109216 SEAL, (36.00 Inches)SEAL, (36.00 Inches)
-
78560552 SEALSEAL
-
887-8M0042301 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
922-813613 FITTINGFITTING
-
1032-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 28.00 Inch Length)TUBING, (.312) (70.00 Inches Bulk) (Cut to 28.00 Inch Length)
-
1121-817519A2 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
1210-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
138M0041366 HANDLEHANDLE
-
1423-812707 BUSHINGBUSHING
-
1513-F2047 WASHER, WaveWASHER, Wave
-
168M0001081 CAMCAM
-
1712-4002316 WASHERWASHER
-
1813-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1910-28635 SCREW, (.250-20 x .620) Stainless SteelSCREW, (.250-20 x .620) Stainless Steel
-
20822363T1 RETAINERRETAINER
-
2111-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2212-4002316 WASHERWASHER
