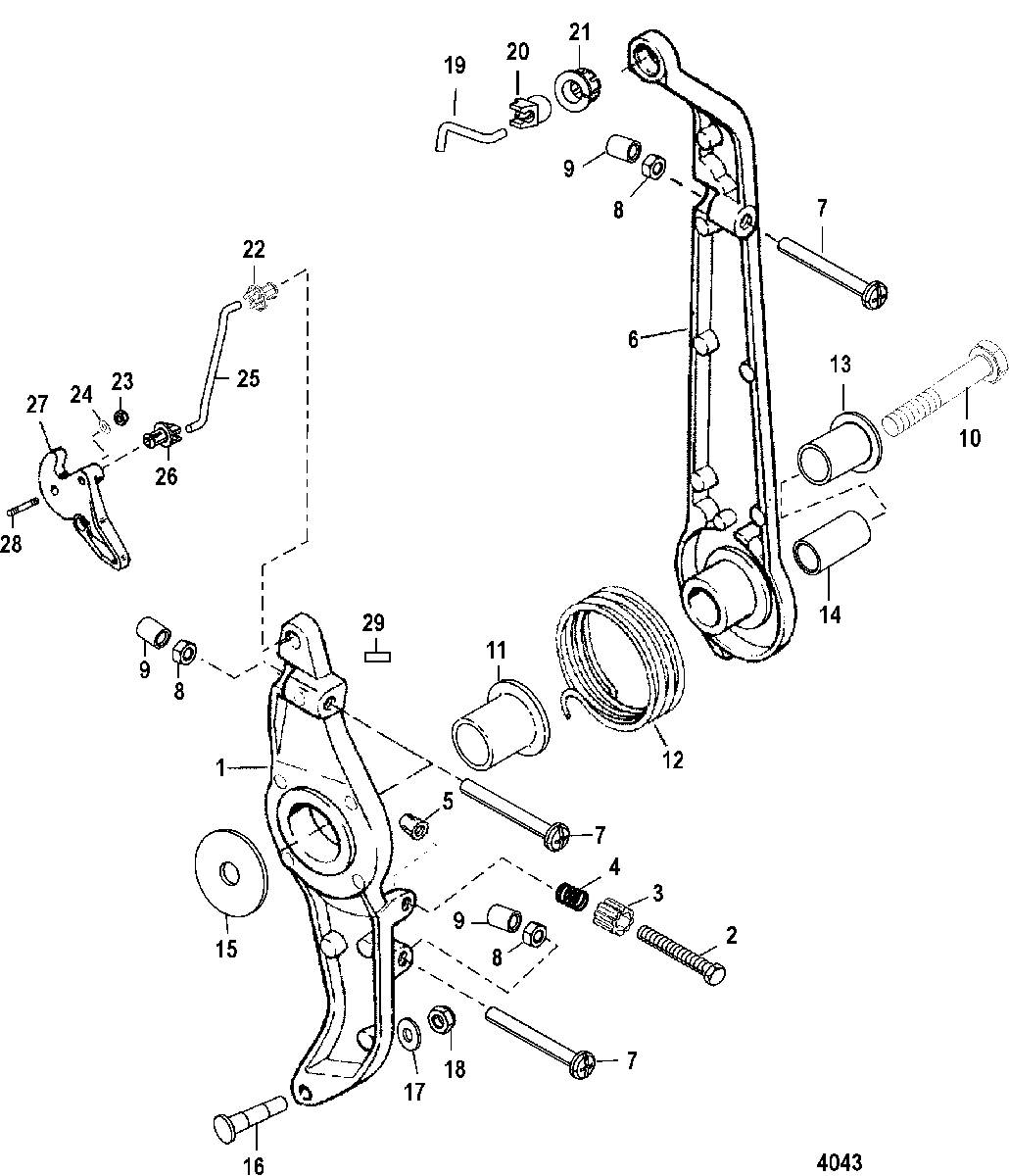

Throttle Lever and Linkage для Mercury - 115 (4 CYL.) 0T980000 THRU 0T999999
-
№АртикулНазвание
-
1884309T LEVER, ThrottleLEVER, Throttle
-
210-827009 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
3826264 CAPCAP
-
424-826382 SPRINGSPRING
-
548039 CAPCAP
-
6884307T LEVER, Spark AdvanceLEVER, Spark Advance
-
710-814776 SCREW, Adjusting (M6 x 55)SCREW, Adjusting (M6 x 55)
-
811-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
942942 CAPCAP
-
1010-4007180 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
1123-55171 BUSHINGBUSHING
-
1224-73375 SPRINGSPRING
-
1323-812930A1 BUSHINGBUSHING
-
14NSS NOT SOLD SEPARATE, InsertNOT SOLD SEPARATE, Insert
-
1512-42980 WASHERWASHER
-
1642927 INSERTINSERT
-
1712-35459 WASHERWASHER
-
1811-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
19878170 ROD, Spark AdvanceROD, Spark Advance
-
2093421 SWIVEL BALLSWIVEL BALL
-
2193254 SWIVEL BASESWIVEL BASE
-
2223-932481 BUSHINGBUSHING
-
2311-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2412-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
25878173 LINKLINK
-
2623-932481 BUSHINGBUSHING
-
2714518A2 CAM ASSEMBLY, ThrottleCAM ASSEMBLY, Throttle
-
2816-8161949 STUD, (M6 x 44)STUD, (M6 x 44)
-
29NSS NOT SOLD SEPARATE, Decal-Idle Screw (Arrow-Down)NOT SOLD SEPARATE, Decal-Idle Screw (Arrow-Down)
