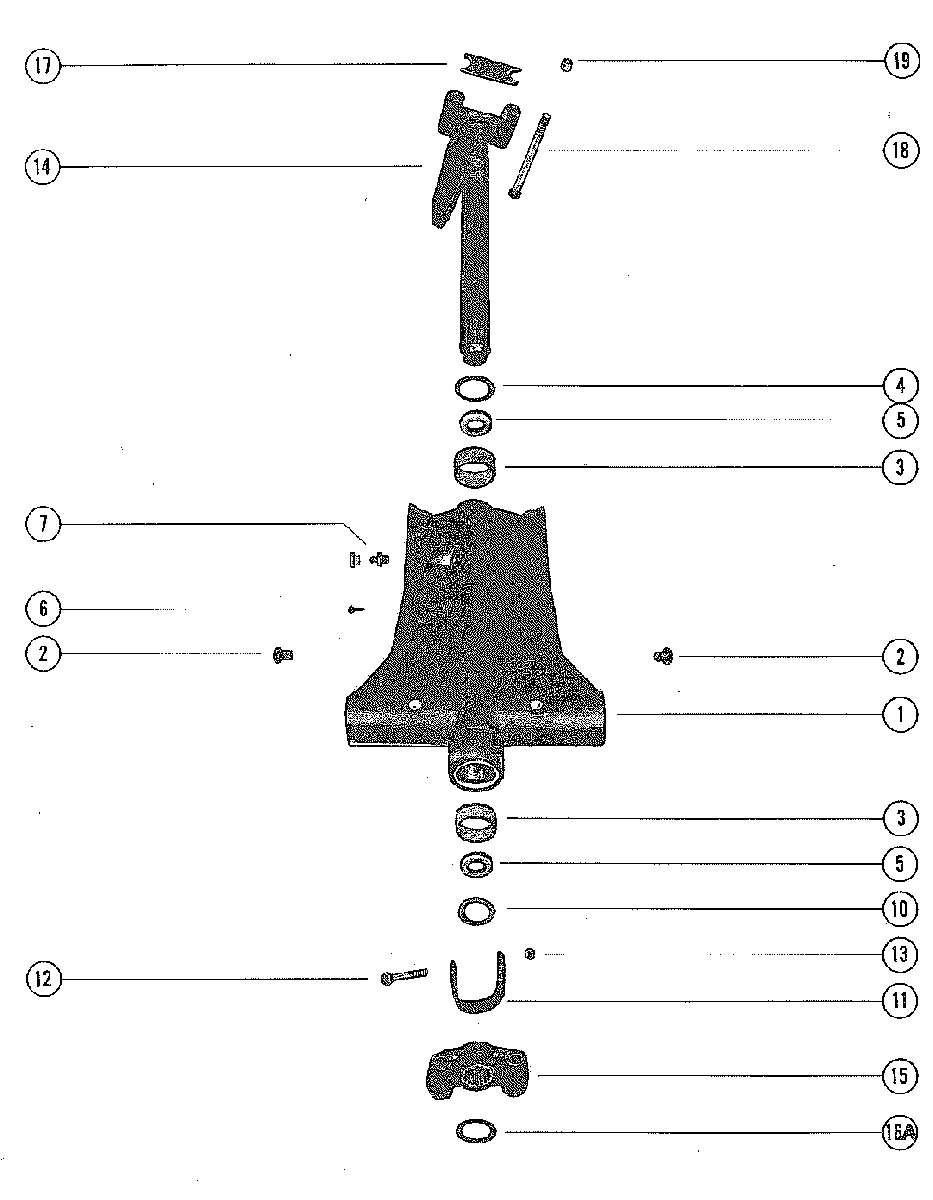

SWIVEL BRACKET ASSEMBLY для Mercury - 115 (6 CYL.) 8061120 THRU 8061269
-
№АртикулНазвание
-
11482-6386A4 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
223-69132 BUSHING, REVERSE LOCK PIVOT SHAFTBUSHING, REVERSE LOCK PIVOT SHAFT
-
323-69341 BUSHING, SWIVEL BRACKETBUSHING, SWIVEL BRACKET
-
412-69342 WASHER, SWIVEL PIN, UPPERWASHER, SWIVEL PIN, UPPER
-
526-37448 OIL SEAL, SWIVEL BRACKETOIL SEAL, SWIVEL BRACKET
-
610-47828 SCREW, DRIVE - SWIVEL BRACKETSCREW, DRIVE - SWIVEL BRACKET
-
722-74036 FITTING, GREASE - SWIVEL BRACKETFITTING, GREASE - SWIVEL BRACKET
-
1012-37429 WASHER, SWIVEL PIN - LOWERWASHER, SWIVEL PIN - LOWER
-
1128205T STRAP STOP
DRIVE SHAFT HOUSING TO SWIVEL BRACKETSTRAP STOP
DRIVE SHAFT HOUSING TO SWIVEL BRACKET -
1210-28200 SCREW
STRAP STOP TO DRIVE SHAFT HOUSING (2 7/8")SCREW
STRAP STOP TO DRIVE SHAFT HOUSING (2 7/8") -
1311-25269 NUT, STRAP STOP FASTENING SCREWNUT, STRAP STOP FASTENING SCREW
-
1417-73593A2 SWIVEL PIN AND ARM ASSEMBLYSWIVEL PIN AND ARM ASSEMBLY
-
1573984T YOKE, BOTTOMYOKE, BOTTOM
-
16A53-73591 RETAINING RING, BOTTOM YOKE ATTACHINGRETAINING RING, BOTTOM YOKE ATTACHING
-
1728203 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
1810-49554 BOLT, STEERING ARM TO UPPER MOUNT (5 7/8")BOLT, STEERING ARM TO UPPER MOUNT (5 7/8")
-
1911-34933 NUT, STEERING ARM BOLT FASTENINGNUT, STEERING ARM BOLT FASTENING
