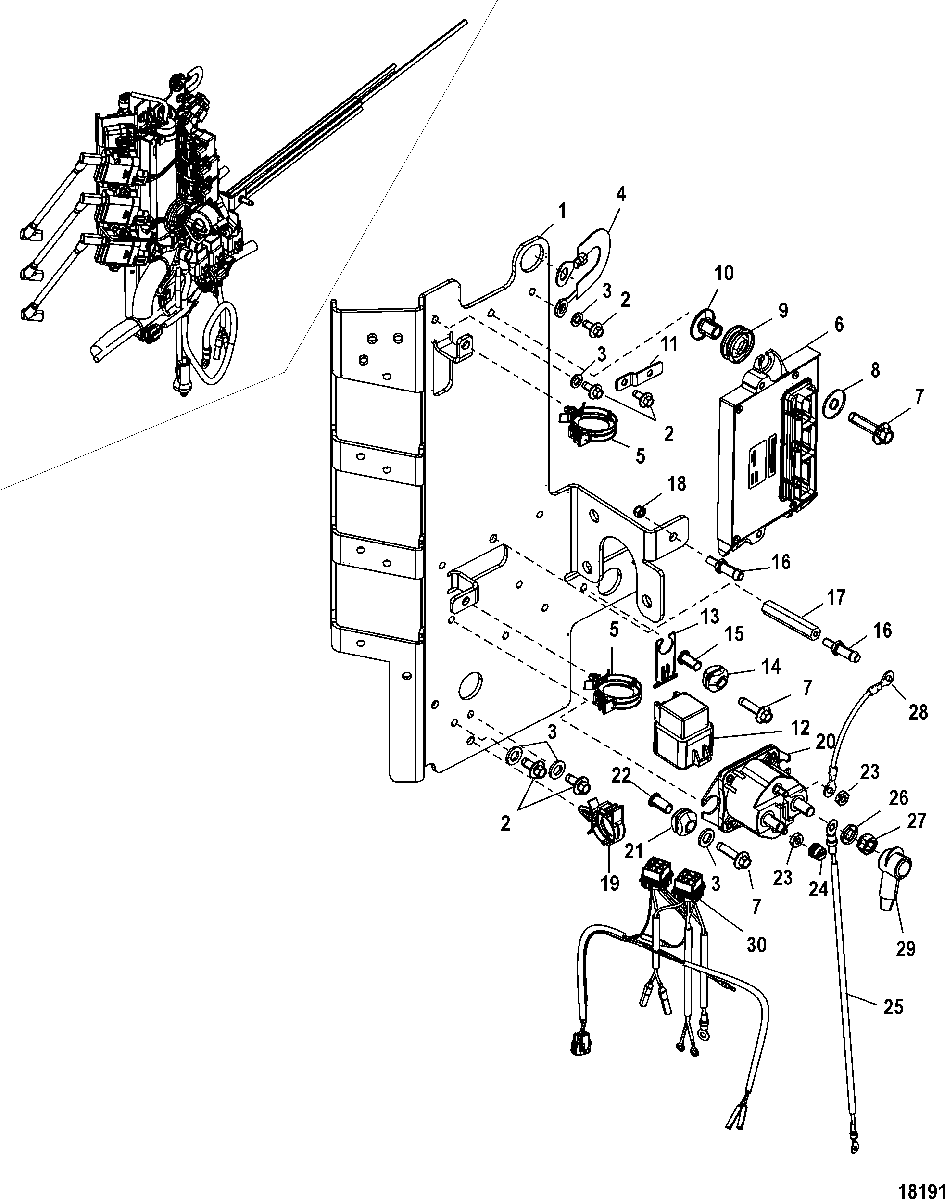

Electrical Components, PCM Mounting для Mercury - 115 DFI (3 CYL.)(1.5L) 1B227000 THRU 1B417701
-
№АртикулНазвание
-
-NSS NOT SOLD SEPARATE, Electrical Plate Assembly-CompleteNOT SOLD SEPARATE, Electrical Plate Assembly-Complete
-
1880190T03 PLATE, ElectricalPLATE, Electrical
-
210-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
312-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
484-858414A1 CABLE ASSEMBLY, BraidedCABLE ASSEMBLY, Braided
-
554-858755 CLIP, (1.00)CLIP, (1.00)
-
689790640T PCM, Propulsion Control Module
(75)PCM, Propulsion Control Module
(75) -
689790641T PCM, Propulsion Control Module
(90)PCM, Propulsion Control Module
(90) -
689790642T PCM, Propulsion Control Module
(115)PCM, Propulsion Control Module
(115) -
710-82129125 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
812-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
925-834985 GROMMETGROMMET
-
1023-856954 BUSHINGBUSHING
-
11858953 BRACKETBRACKET
-
12882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
13828102 BRACKETBRACKET
-
1425-818967 GROMMETGROMMET
-
1523-818968 BUSHINGBUSHING
-
168215832 PIN, SpecialPIN, Special
-
17889600 SPACERSPACER
-
1811-401376 NUT, (M6)NUT, (M6)
-
1954-858954 CLIP, (.625)CLIP, (.625)
-
2089-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
-
2125-822179 GROMMETGROMMET
-
2223-818968 BUSHINGBUSHING
-
2311-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2411-813938 CAP NUT, (#10-32)CAP NUT, (#10-32)
-
2584-883726A1 CABLE ASSEMBLY, Yellow/RedCABLE ASSEMBLY, Yellow/Red
-
2613-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
2711-68292 NUT, (.312-18)NUT, (.312-18)
-
2884-88807A16 CABLE ASSEMBLY, (4.00 Inches) BlackCABLE ASSEMBLY, (4.00 Inches) Black
-
2985-8500673 BOOT, Insulator - YellowBOOT, Insulator - Yellow
-
3084-819514T18 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
