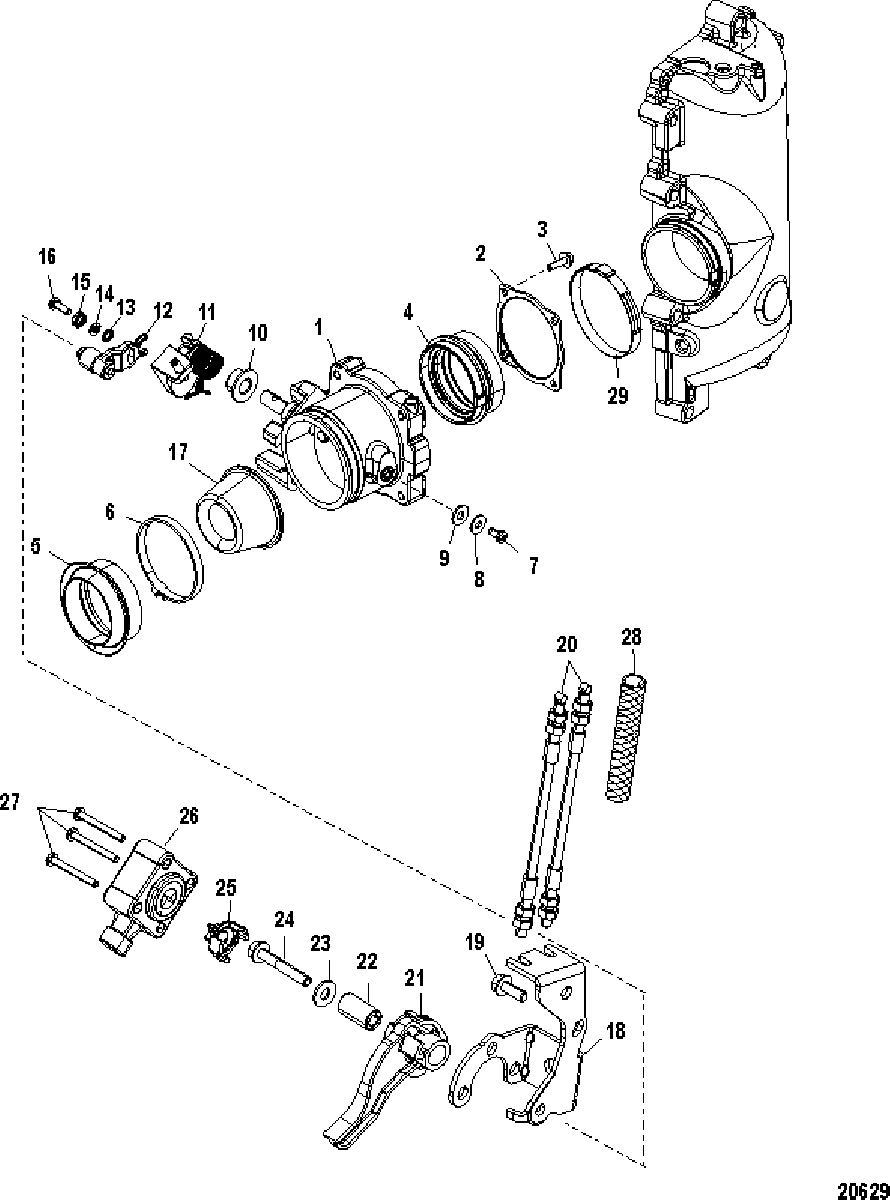

Throttle Body для Mercury - 115 DFI (3 CYL.)(1.5L) 1B227000 THRU 1B417701
-
№АртикулНазвание
-
1893370T01 THROTTLE BODY ASSEMBLY
(75)THROTTLE BODY ASSEMBLY
(75) -
1893301T01 THROTTLE BODY ASSEMBLY
(90)THROTTLE BODY ASSEMBLY
(90) -
1880129T02 THROTTLE BODY ASSEMBLY
(115)THROTTLE BODY ASSEMBLY
(115) -
2891770 RETAINERRETAINER
-
310-891771 SCREWSCREW
-
426-891772 SEALSEAL
-
526-891772002 SEALSEAL
-
654-804842001 CLAMP, OetikerCLAMP, Oetiker
-
710-891771001 SCREWSCREW
-
812-891773 WASHERWASHER
-
912-891773001 WASHERWASHER
-
1023-891774 BUSHINGBUSHING
-
11853659A01 LEVER KIT, ThrottleLEVER KIT, Throttle
-
12858851A03 LEVER ASSEMBLY, ThrottleLEVER ASSEMBLY, Throttle
-
1313-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
148M0095734 WASHER, SpoolWASHER, Spool
-
158M0095734 WASHER, CuppedWASHER, Cupped
-
1610-889354 SCREW, SpecialSCREW, Special
-
17892623002 INSERT
(75)INSERT
(75) -
17892623001 INSERT
(90)INSERT
(90) -
18891775 BRACKETBRACKET
-
1910-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
208819881 CABLECABLE
-
21891776 CAMCAM
-
2223-421621 BUSHINGBUSHING
-
2312-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
2410-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
25881967 COUPLERCOUPLER
-
268M6005165 INDICATOR, Throttle PositionINDICATOR, Throttle Position
-
2710-891771002 SCREWSCREW
-
2832-828547253 CONDUIT, (.250 Inside Diameter x 3.00 Feet Bulk) (Cut to 13 Inches)CONDUIT, (.250 Inside Diameter x 3.00 Feet Bulk) (Cut to 13 Inches)
-
2954-889691 CLAMP, OetikerCLAMP, Oetiker
