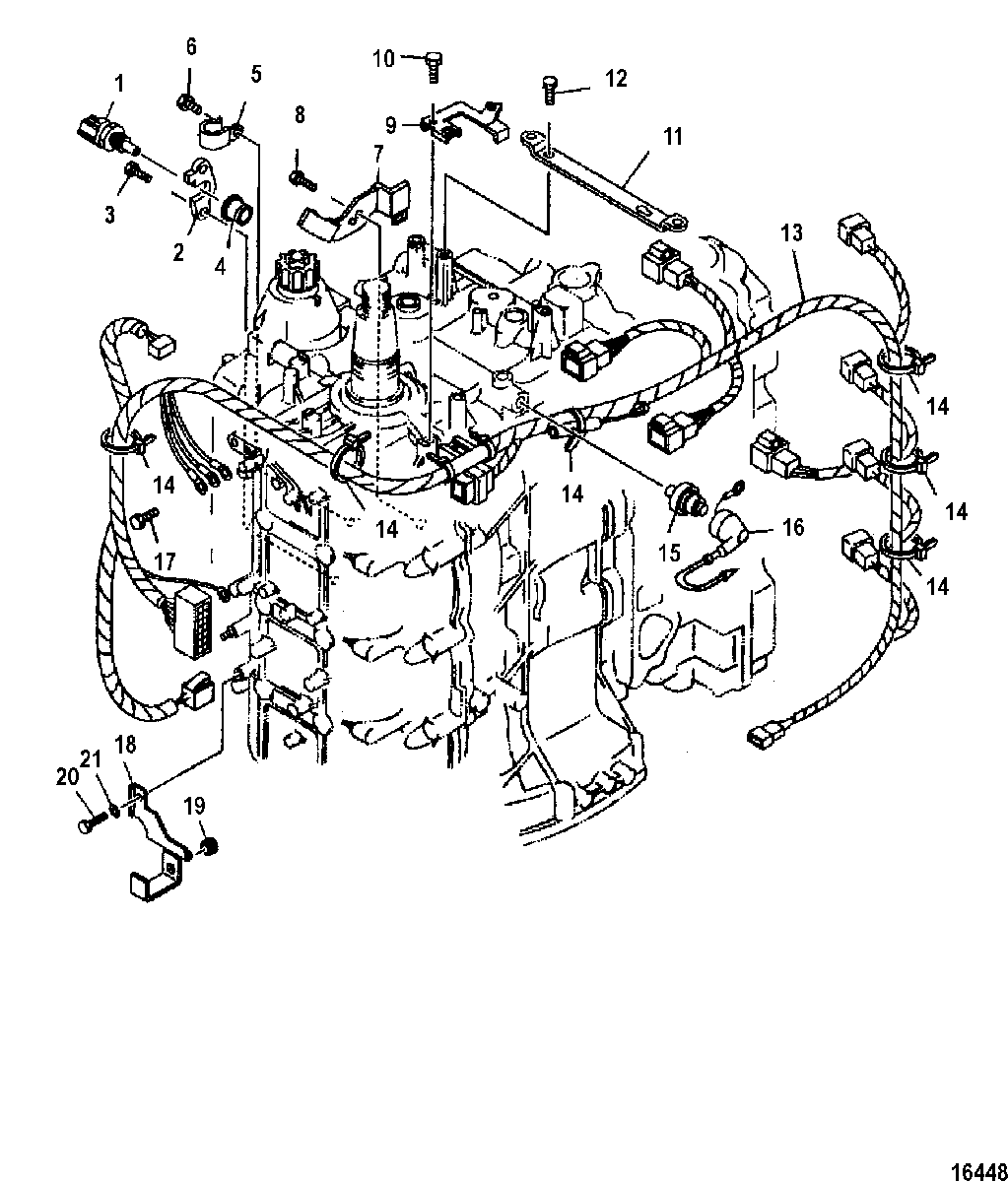

Sensors and Harness для Mercury - 115 EFI (4-STROKE) 1B227000 THRU 1B366822
-
№АртикулНазвание
-
1804295T THERMOSENSORTHERMOSENSOR
-
2804296 RETAINERRETAINER
-
310-811188T BOLT, (M6 x 16)BOLT, (M6 x 16)
-
427-8042971 GASKETGASKET
-
554-83577M CLAMPCLAMP
-
610-84088M SCREW, (M6 x 10)SCREW, (M6 x 10)
-
7881366003 BRACKETBRACKET
-
810-804602 BOLT, (M6 x 12)BOLT, (M6 x 12)
-
9881366002 PLATEPLATE
-
1010-804602 BOLT, (M6 x 12)BOLT, (M6 x 12)
-
118042941 PLATEPLATE
-
1210-811188T BOLT, (M6 x 16)BOLT, (M6 x 16)
-
1384-881364T05 HARNESS ASSEMBLY
(EU)HARNESS ASSEMBLY
(EU) -
1454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1587-8043071 SWITCH, Oil PressureSWITCH, Oil Pressure
-
1684-881367A1 LEAD WIRELEAD WIRE
-
1710-804604 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
18804260001 BRACKETBRACKET
-
1925-97687M GROMMETGROMMET
-
2010-84368M BOLTBOLT
-
2112-82214M WASHERWASHER
-
-27-858732A06 GASKET SETGASKET SET
-
-881421T04 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
