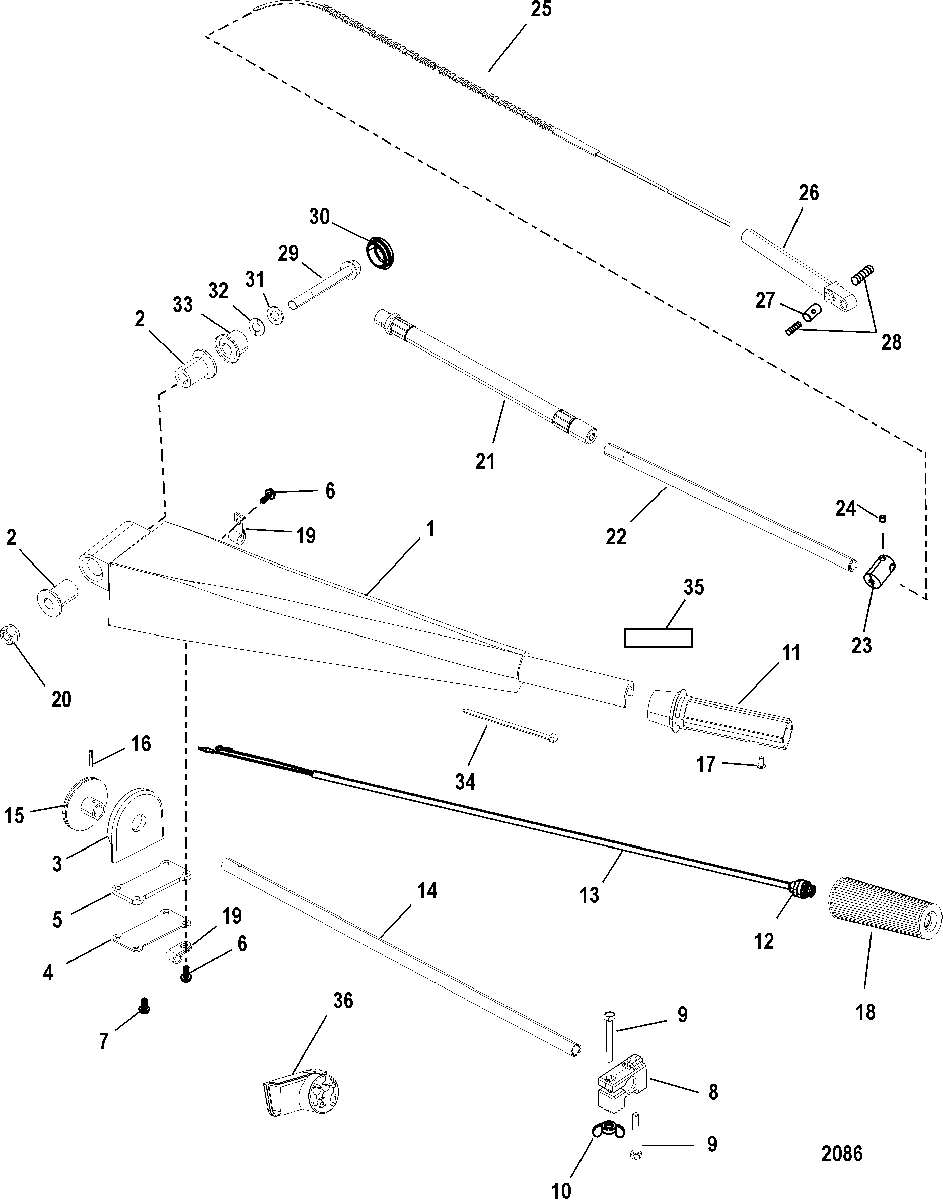

Steering Handle Kit для Mercury - 115 EFI (4-STROKE) 1B227000 THRU 1B366822
-
№АртикулНазвание
-
-816366A54 STEERING HANDLE KITSTEERING HANDLE KIT
-
112020A3 HANDLE ASSEMBLY, Steering ArmHANDLE ASSEMBLY, Steering Arm
-
NS22-74036 FITTING, GreaseFITTING, Grease
-
223-42992T02 BUSHINGBUSHING
-
348414 HOUSINGHOUSING
-
448519 PLATEPLATE
-
527-48518 GASKETGASKET
-
610-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
710-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
854-889729 CLAMPCLAMP
-
910-40007112 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
1011-816874 WING NUT, (#10-32)WING NUT, (#10-32)
-
1187-823609A15 SWITCH KIT, Stop - Throttle HandleSWITCH KIT, Stop - Throttle Handle
-
1287-8M0104612 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
13NSS NOT SOLD SEPARATE, InsulatorNOT SOLD SEPARATE, Insulator
-
1412018A4 TUBE ASSEMBLY, ThrottleTUBE ASSEMBLY, Throttle
-
15NSS NOT SOLD SEPARATE, Drive WheelNOT SOLD SEPARATE, Drive Wheel
-
16NSS NOT SOLD SEPARATE, Roll PinNOT SOLD SEPARATE, Roll Pin
-
1710-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
1899589003 GRIPGRIP
-
1954-648552 CLIPCLIP
-
2011-40140 NUT, (M10)NUT, (M10)
-
218885241 CONDUIT, (9.03 Inches)CONDUIT, (9.03 Inches)
-
22895665 GUIDE TUBEGUIDE TUBE
-
2389578 BARREL, Throttle AcutatorBARREL, Throttle Acutator
-
2410-824081 SET SCREW, (#10-32)SET SCREW, (#10-32)
-
2512019003 CABLE ASSEMBLYCABLE ASSEMBLY
-
2643433 GUIDE, CableGUIDE, Cable
-
2720007 ANCHOR, Cable EndANCHOR, Cable End
-
2810-20518 SET SCREW, (#8-32)SET SCREW, (#8-32)
-
2910-823567105 SCREW, (M10 x 105) Hex Flange - Stainless SteelSCREW, (M10 x 105) Hex Flange - Stainless Steel
-
3048416T CAPCAP
-
3112-4002319 WASHERWASHER
-
3212-12024 WASHER, (.402 x .787 x .039 Bellevi)WASHER, (.402 x .787 x .039 Bellevi)
-
3323-146011 SPACERSPACER
-
3454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
35NSS NOT SOLD SEPARATE, Decal-ThrottleNOT SOLD SEPARATE, Decal-Throttle
-
3625-889724 GROMMET, Hose CableGROMMET, Hose Cable
