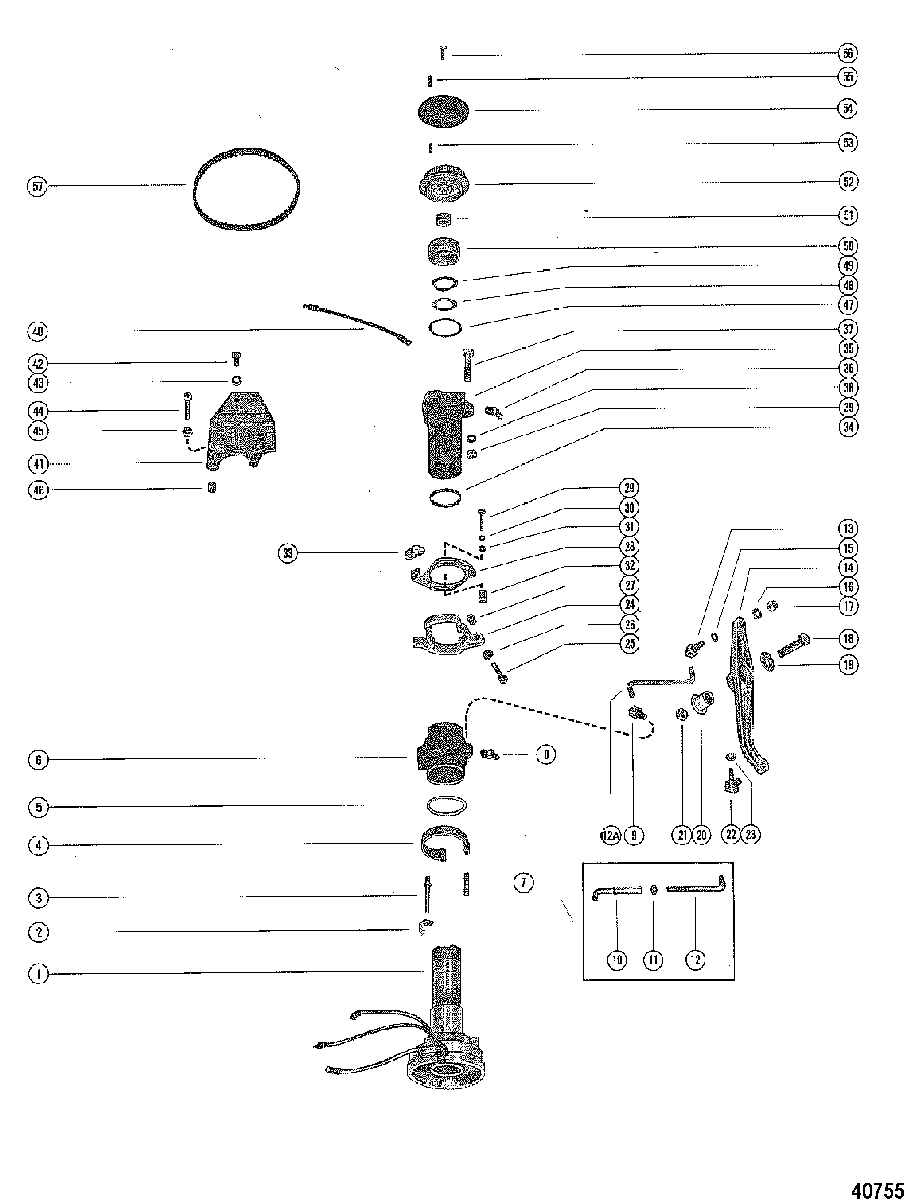

DISTRIBUTOR ADAPTOR AND VERTICAL LINKAGE для Mercury - 1150 3525441 THRU 4855152
-
№АртикулНазвание
-
1393-3736A79 HOUSING ASSEMBLY, DISTRIBUTORHOUSING ASSEMBLY, DISTRIBUTOR
-
232197 STOP, SPARK ADVANCE - DISTRIBUTOR HOUSINGSTOP, SPARK ADVANCE - DISTRIBUTOR HOUSING
-
317-27962 PIN, ANCHOR SPRING - DISTRIBUTOR HOUSINGPIN, ANCHOR SPRING - DISTRIBUTOR HOUSING
-
424-27944 SPRING, HORSESHOE - DISTRIBUTOR HOUSINGSPRING, HORSESHOE - DISTRIBUTOR HOUSING
-
512-53540 WASHER, ECONOMIZER COLLAR - DISTRIBUTOR HOUSINGWASHER, ECONOMIZER COLLAR - DISTRIBUTOR HOUSING
-
655804A1 ECONOMIZER COLLAR ASSEMBLYECONOMIZER COLLAR ASSEMBLY
-
717-27961 PIN, ECONOMIZER COLLAR - SPRING RETAINERPIN, ECONOMIZER COLLAR - SPRING RETAINER
-
822-25094 FITTING, GREASE - ECONOMIZER COLLARFITTING, GREASE - ECONOMIZER COLLAR
-
927947 SWIVEL, LINKAGE - ECONOMIZER COLLARSWIVEL, LINKAGE - ECONOMIZER COLLAR
-
1025996A1 SWIVEL AND LINK ROD ASSEMBLY
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowSWIVEL AND LINK ROD ASSEMBLY
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
1111-29598 NUT
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowNUT
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
1237700 ROD, LINK - UPPER
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowROD, LINK - UPPER
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
12A67469 ROD LINK, LINK - UPPER
SN# USA-3761035/Australia-8014005/Canada-7025598 & UpROD LINK, LINK - UPPER
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up -
1327948 SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVERSWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
-
1478992 LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
1513-39954 WAVE WASHER,WAVE WASHER,
-
1612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1711-35888 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
1810-31830 SCREW (1-3/4")SCREW (1-3/4")
-
1912-8M0042641 WASHER, (.390 x 1.00 x .06)WASHER, (.390 x 1.00 x .06)
-
2023-45818 BUSHINGBUSHING
-
2111-8M0042636 NUTNUT
-
2237587 SWIVEL, LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLESWIVEL, LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLE
-
2311-35888 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
2448692 COLLAR, THROTTLE ACTUATORCOLLAR, THROTTLE ACTUATOR
-
2510-48675 SCREW, ADJUSTING (1-1/2")SCREW, ADJUSTING (1-1/2")
-
2611-64015 NUT, (.250-20)NUT, (.250-20)
-
2752023 CAP, NYLONCAP, NYLON
-
2848671 PLATE, THROTTLE ACTUATORPLATE, THROTTLE ACTUATOR
-
2910-37892 SCREW, (.190-32 x 1.00)SCREW, (.190-32 x 1.00)
-
3012-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, THROTTLE ACTUATOR PLATE FASTENING SCREWWASHER, (.192 x .375 x .0312) Stainless Steel, THROTTLE ACTUATOR PLATE FASTENING SCREW
-
3113-26996 LOCKWASHER, (#10) Stainless Steel, THROTTLE ACTUATOR PLATE FASTENING SCREWLOCKWASHER, (#10) Stainless Steel, THROTTLE ACTUATOR PLATE FASTENING SCREW
-
3223-48674 SPACER, THROTTLE ACTUATOR PLATE SCREWSPACER, THROTTLE ACTUATOR PLATE SCREW
-
3358454 CAM, THROTTLE ACTUATOR PLATECAM, THROTTLE ACTUATOR PLATE
-
3412-46246 WASHER, ADAPTOR - DISTRIBUTOR HOUSINGWASHER, ADAPTOR - DISTRIBUTOR HOUSING
-
3566165A2 ADAPTOR ASSEMBLY, DISTRIBUTOR
USA SN# 3761034 AND BELOW Australia SN# 8014004 AND BELOW Canada SN# 7025597 AND BELOWADAPTOR ASSEMBLY, DISTRIBUTOR
USA SN# 3761034 AND BELOW Australia SN# 8014004 AND BELOW Canada SN# 7025597 AND BELOW -
3566165A2 ADAPTOR ASSEMBLY, DISTRIBUTOR
USA SN# 3761035 AND ABOVE Australia SN# 8014005 AND ABOVE Canada SN# 7025598 AND ABOVEADAPTOR ASSEMBLY, DISTRIBUTOR
USA SN# 3761035 AND ABOVE Australia SN# 8014005 AND ABOVE Canada SN# 7025598 AND ABOVE -
3622-25094 FITTING, GREASE - DISTRIBUTOR ADAPTORFITTING, GREASE - DISTRIBUTOR ADAPTOR
-
3710-78841 SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")
USA SN# 3761034 AND BELOW Australia SN# 8014004 AND BELOW Canada SN# 7025597 AND BELOWSCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")
USA SN# 3761034 AND BELOW Australia SN# 8014004 AND BELOW Canada SN# 7025597 AND BELOW -
3710-73657 SCREW, (.312-18 x 1.50), DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")-
USA SN# 3761035 AND ABOVE Australia SN# 8014005 AND ABOVE Canada SN# 7025598 AND ABOVESCREW, (.312-18 x 1.50), DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")-
USA SN# 3761035 AND ABOVE Australia SN# 8014005 AND ABOVE Canada SN# 7025598 AND ABOVE -
3812-20084 WASHER, (.328 x .562 x .062), DISTRIBUTOR HOUSING SCREWWASHER, (.328 x .562 x .062), DISTRIBUTOR HOUSING SCREW
-
3911-22053 NUT, (5/16-24), DISTRIBUTOR HOUSING SCREW
USA SN# 3761034 AND BELOW Australia SN# 8014004 AND BELOW Canada SN# 7025597 AND BELOWNUT, (5/16-24), DISTRIBUTOR HOUSING SCREW
USA SN# 3761034 AND BELOW Australia SN# 8014004 AND BELOW Canada SN# 7025597 AND BELOW -
4084-93388A1 STRAP ASSEMBLY, Ground, GROUND - DISTRIBUTOR ADAPTOR TO FRONT SUPPORT BRACKETSTRAP ASSEMBLY, Ground, GROUND - DISTRIBUTOR ADAPTOR TO FRONT SUPPORT BRACKET
-
4155805 BRACKET, STOPBRACKET, STOP
-
4210-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
4312-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
4410-64022 SCREW, (.250-20 x 2.125)SCREW, (.250-20 x 2.125)
-
4511-64015 NUT, (.250-20)NUT, (.250-20)
-
4652023 CAP, NYLON - STOP BRACKET ADJUSTING SCREWCAP, NYLON - STOP BRACKET ADJUSTING SCREW
-
4712-27939 WASHERWASHER
-
4814-27960 TAB WASHERTAB WASHER
-
4913-27959 WASHER, WAVE - DISTRIBUTOR BALL BEARING TENSIONWASHER, WAVE - DISTRIBUTOR BALL BEARING TENSION
-
5054567 CAP, DISTRIBUTOR HOUSINGCAP, DISTRIBUTOR HOUSING
-
5123-47250 SPACER, DRIVE PULLEYSPACER, DRIVE PULLEY
-
5229906A1 PULLEY ASSEMBLY, DrivenPULLEY ASSEMBLY, Driven
-
5317-29908 PIN, ROLL - FLANGE LOCATINGPIN, ROLL - FLANGE LOCATING
-
5429907 FLANGE, DRIVEN PULLEYFLANGE, DRIVEN PULLEY
-
5528-29910 KEY, DISTRIBUTOR DRIVERKEY, DISTRIBUTOR DRIVER
-
5610-68554 SCREW, PULLEY CLAMPINGSCREW, PULLEY CLAMPING
-
5720140 BELT, TIMINGBELT, TIMING
