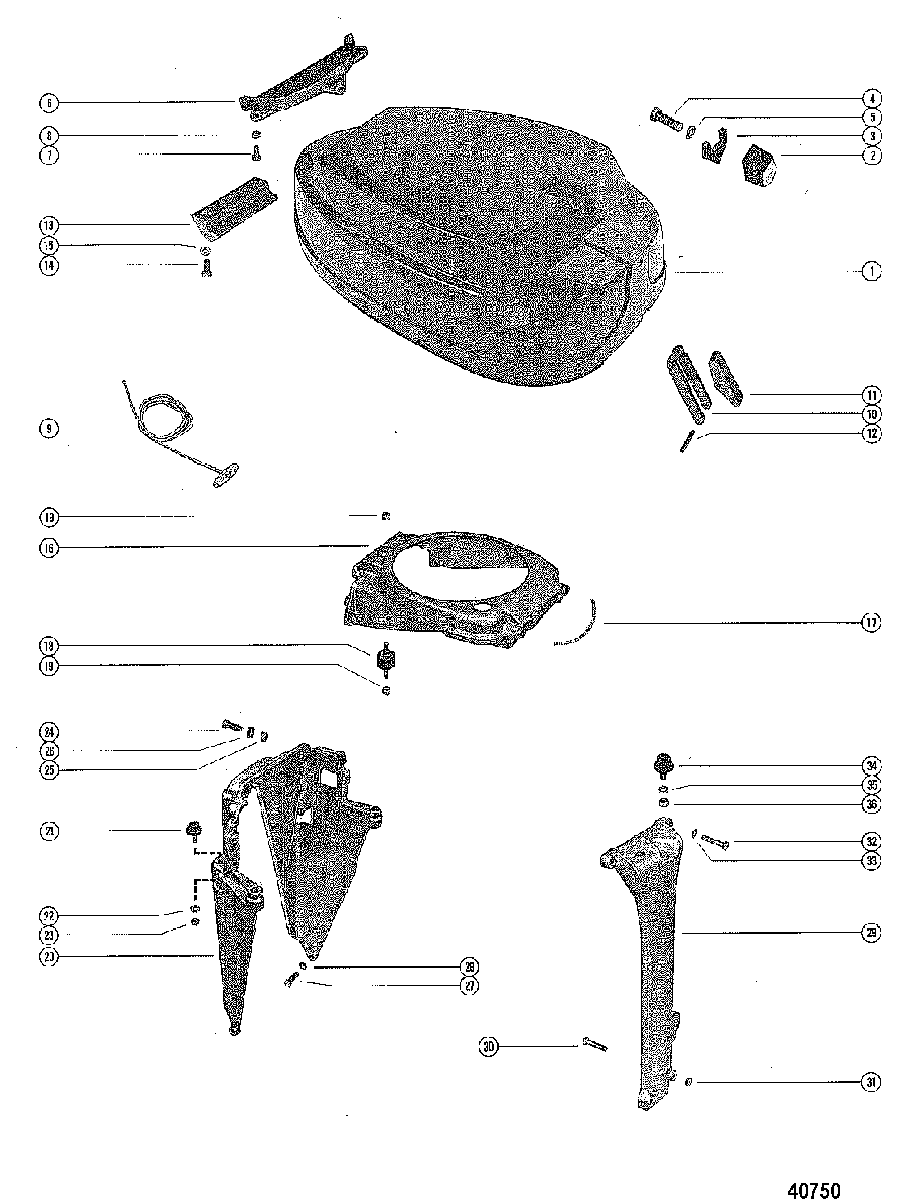

TOP COWL AND SUPPORT BRACKETS для Mercury - 1150 3525441 THRU 4855152

  • №
    Артикул
    Название
  • 1
    2114-3806 COWL, TOP
    SN# USA-4394236/Australia-8027439/Canada-7075522 & Below
    COWL, TOP
    SN# USA-4394236/Australia-8027439/Canada-7075522 & Below
    0 ₽
  • 1
    2114-7934T COWL, TOP
    SN# USA-4394237/Canada-7075523 & Up
    COWL, TOP
    SN# USA-4394237/Canada-7075523 & Up
    0 ₽
  • 2
    52733A9 RETAINER ASSEMBLY, TOP COWL
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
    RETAINER ASSEMBLY, TOP COWL
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
    0 ₽
  • 2
    52733A9 RETAINER ASSEMBLY, TOP COWL
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
    RETAINER ASSEMBLY, TOP COWL
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
    0 ₽
  • 3
    35496 PAD, BUMPER-TOP COWL RETAINER
    PAD, BUMPER-TOP COWL RETAINER
    0 ₽
  • 4
    10-74824 SCREW, RETAINER TO TOP COWL (1 1/4")
    SCREW, RETAINER TO TOP COWL (1 1/4")
    140 ₽
  • 5
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
    120 ₽
  • 6
    76370 SHIELD, REAR
    SHIELD, REAR
    0 ₽
  • 7
    10-37370 SCREW, (#10-32 x .580), SHIELD TO TOP COWL
    SCREW, (#10-32 x .580), SHIELD TO TOP COWL
    100 ₽
  • 8
    13-37371 LOCKWASHER, SHIELD SCREW
    LOCKWASHER, SHIELD SCREW
    0 ₽
  • 9
    47341A11 ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING ONLY)
    ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING ONLY)
    1 350 ₽
  • 10
    52739 HINGE, TOP COWL
    HINGE, TOP COWL
    2 110 ₽
  • 11
    94918F1 LEVER, COWL LATCH HINGE
    LEVER, COWL LATCH HINGE
    2 780 ₽
  • 12
    17-58998 PIN, ROLL - COWL LATCH LEVER TO HINGE
    PIN, ROLL - COWL LATCH LEVER TO HINGE
    350 ₽
  • 13
    55455 HOOK, TOP COWL LATCH - REAR
    HOOK, TOP COWL LATCH - REAR
    0 ₽
  • 14
    10-22956 SCREW, (.250-28 x .880), REAR HOOK TO TOP COWL
    SCREW, (.250-28 x .880), REAR HOOK TO TOP COWL
    0 ₽
  • 15
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
    70 ₽
  • 16
    79897A4 FRAME, TOP COWL SUPPORT
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
    FRAME, TOP COWL SUPPORT
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
    0 ₽
  • 16
    79897A4 FRAME, TOP COWL SUPPORT
    SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257
    FRAME, TOP COWL SUPPORT
    SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257
    0 ₽
  • 16
    79897A4 FRAME, TOP COWL SUPPORT
    SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4394236/Australia-8027439/Canada-7075522
    FRAME, TOP COWL SUPPORT
    SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4394236/Australia-8027439/Canada-7075522
    0 ₽
  • 16
    79897A4 FRAME ASSEMBLY, TOP COWL SUPPORT
    SN# USA-4394237/Canada-7075523 & Up
    FRAME ASSEMBLY, TOP COWL SUPPORT
    SN# USA-4394237/Canada-7075523 & Up
    0 ₽
  • 17
    37-60204 DECAL, TIMING
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
    DECAL, TIMING
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
    0 ₽
  • 17
    37-65601 DECAL, TIMING
    SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4394236/Australia-8027439/Canada-7075522
    DECAL, TIMING
    SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4394236/Australia-8027439/Canada-7075522
    0 ₽
  • 17
    37-73291 DECAL, TIMING (FLYWHEEL)
    SN# USA-4394237/Canada-7075523 & Up
    DECAL, TIMING (FLYWHEEL)
    SN# USA-4394237/Canada-7075523 & Up
    0 ₽
  • 18
    90435 MOUNT, RUBBER - TOP COWL FRAME
    MOUNT, RUBBER - TOP COWL FRAME
    2 830 ₽
  • 18
    46096 MOUNT, RUBBER - TOP COWL FRAME
    (HEAVY DUTY)
    MOUNT, RUBBER - TOP COWL FRAME
    (HEAVY DUTY)
    0 ₽
  • 19
    11-35888 NUT, (.250-28) Stainless Steel, RUBBER MOUNT TO TOP COWL FRAME
    NUT, (.250-28) Stainless Steel, RUBBER MOUNT TO TOP COWL FRAME
    490 ₽
  • 20
    86472 BRACKET, TOP COWL SUPPORT - REAR
    BRACKET, TOP COWL SUPPORT - REAR
    0 ₽
  • 21
    31014 MOUNT, RUBBER - REAR SUPPORT BRACKET
    MOUNT, RUBBER - REAR SUPPORT BRACKET
    260 ₽
  • 22
    13-26992 LOCKWASHER, (.250) Stainless Steel, RUBBER MOUNT TO REAR SUPPORT BRACKET
    LOCKWASHER, (.250) Stainless Steel, RUBBER MOUNT TO REAR SUPPORT BRACKET
    70 ₽
  • 23
    11-29598 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
    150 ₽
  • 24
    10-65263 SCREW, REAR BRACKET TO FRAME (1")
    SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
    SCREW, REAR BRACKET TO FRAME (1")
    SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
    0 ₽
  • 24
    10-37562 SCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO FRAME
    SN# USA-4112635/Australia-8027115/Canada-7047258 & Up
    SCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO FRAME
    SN# USA-4112635/Australia-8027115/Canada-7047258 & Up
    220 ₽
  • 25
    11-60049 NUT, REAR BRACKET SCREW
    SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
    NUT, REAR BRACKET SCREW
    SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
    0 ₽
  • 26
    13-26993 LOCKWASHER, (.312), REAR BRACKET SCREW
    SN# USA-4112635/Australia-8027115/Canada-7047258 & Up
    LOCKWASHER, (.312), REAR BRACKET SCREW
    SN# USA-4112635/Australia-8027115/Canada-7047258 & Up
    140 ₽
  • 27
    10-37562 SCREW, (.312-18 x 1.00) Stainless Steel
    SCREW, (.312-18 x 1.00) Stainless Steel
    220 ₽
  • 28
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
    140 ₽
  • 29
    77116A1 BRACKET ASSEBMLY, TOP COWL - FRONT
    SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
    BRACKET ASSEBMLY, TOP COWL - FRONT
    SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
    0 ₽
  • 29
    77116A1 BRACKET ASSEMBLY, TOP COWL - FRONT
    SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA_4394236/Australia-8027439/Canada-7075522
    BRACKET ASSEMBLY, TOP COWL - FRONT
    SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA_4394236/Australia-8027439/Canada-7075522
    0 ₽
  • 29
    42706A1 BRACKET ASSEMBLY, TOP COWL - FRONT
    SN# USA-4394237/Canada-7075523 & Up
    BRACKET ASSEMBLY, TOP COWL - FRONT
    SN# USA-4394237/Canada-7075523 & Up
    0 ₽
  • 30
    10-71908 SCREW, FRONT BRACKET TO BOTTOM COWL (1 1/2")
    SN# USA-4394236/Australia-8027439/Canada-7075522 & Below
    SCREW, FRONT BRACKET TO BOTTOM COWL (1 1/2")
    SN# USA-4394236/Australia-8027439/Canada-7075522 & Below
    0 ₽
  • 30
    10-60411 SCREW, (1.25), FRONT BRACKET TO BOTTOM COWL
    SN# USA-4394237/Canada-7075523 & Up
    SCREW, (1.25), FRONT BRACKET TO BOTTOM COWL
    SN# USA-4394237/Canada-7075523 & Up
    130 ₽
  • 31
    11-826709111 NUT, (.312-24), FRONT SUPPORT BRACKET SCREW
    SN# USA-4394236/Australia-8027439/Canada-7075522 & Below
    NUT, (.312-24), FRONT SUPPORT BRACKET SCREW
    SN# USA-4394236/Australia-8027439/Canada-7075522 & Below
    290 ₽
  • 31
    13-26992 LOCKWASHER, (.250) Stainless Steel, FRONT BRACKET SCREW
    SN# USA-4394237/Canada-7075523 & Up
    LOCKWASHER, (.250) Stainless Steel, FRONT BRACKET SCREW
    SN# USA-4394237/Canada-7075523 & Up
    70 ₽
  • 32
    10-55511 SCREW, (.312-18 x 1.500)
    SCREW, (.312-18 x 1.500)
    0 ₽
  • 33
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
    140 ₽
  • 34
    37640 MOUNT, RUBBER
    MOUNT, RUBBER
    0 ₽
  • 35
    13-26993 LOCKWASHER, (.312), RUBBER MOUNT TO FRONT SUPPORT BRACKET
    LOCKWASHER, (.312), RUBBER MOUNT TO FRONT SUPPORT BRACKET
    140 ₽
  • 36
    11-28770 NUT, (.312-24) Stainless Steel, RUBBER MOUNT TO FRONT SUPPORT BRACKET
    NUT, (.312-24) Stainless Steel, RUBBER MOUNT TO FRONT SUPPORT BRACKET
    110 ₽
