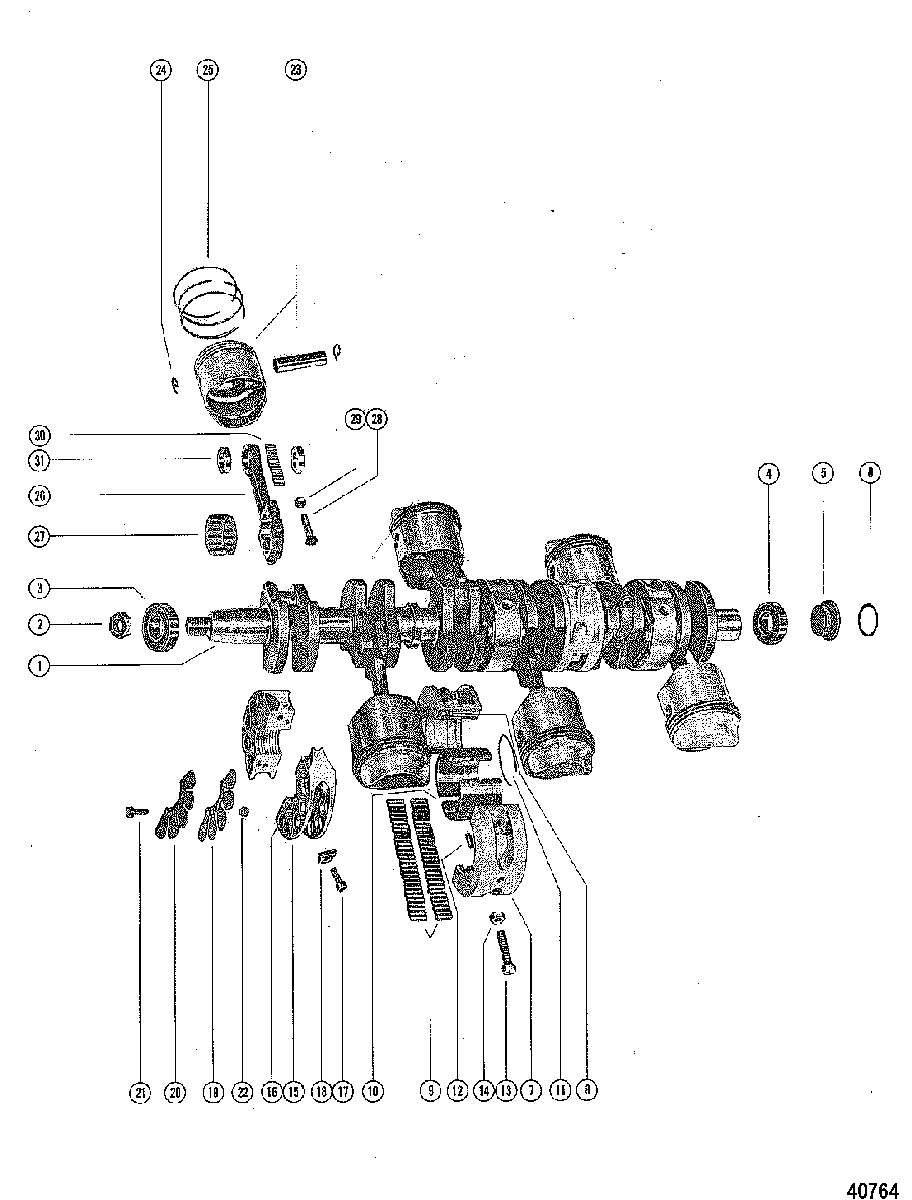

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 1150 7010763 THRU 7112248
-
№АртикулНазвание
-
1436-9072A1 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
211-52901 NUT, (.625-18), FLYWHEEL TO CRANKSHAFTNUT, (.625-18), FLYWHEEL TO CRANKSHAFT
-
330-62567T BEARING, Ball, UPPERBEARING, Ball, UPPER
-
430-63742T BEARING, Ball, LOWERBEARING, Ball, LOWER
-
554196A6 CARRIER ASSEMBLY, "O" RINGCARRIER ASSEMBLY, "O" RING
-
665800 PACKING, CARRIERPACKING, CARRIER
-
7535-3190A2 BEARING ASSEMBLY, Center Main
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowBEARING ASSEMBLY, Center Main
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
7535-5397A4 BEARING ASSEMBLY, Center Main
SN# USA-3761035/Australia-8014005/Canada-7025598 & UpBEARING ASSEMBLY, Center Main
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up -
817-20032 PIN, Dowel, CENTER MAIN BEARINGPIN, Dowel, CENTER MAIN BEARING
-
929-714221 BEARING, NEEDLE - OUTER RACEBEARING, NEEDLE - OUTER RACE
-
1026113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
1153-26933 RING, Snap, OUTER RACERING, Snap, OUTER RACE
-
1217-47246 PIN, Dowel, STEPPEDPIN, Dowel, STEPPED
-
1310-22968 SCREW, (.250-28 x 1.25)SCREW, (.250-28 x 1.25)
-
1411-20184 NUT, (1/4-28)NUT, (1/4-28)
-
15540-5266T5 BEARING ASSEMBLY, Main, VALVE TYPE
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowBEARING ASSEMBLY, Main, VALVE TYPE
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
15540-5266T5 BEARING ASSEMBLY, Main, VALVE TYPE
SN# USA-3761035/Australia-8014005/Canada-7025598 & UpBEARING ASSEMBLY, Main, VALVE TYPE
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up -
1617-20032 PIN, Dowel, MAIN BEARINGPIN, Dowel, MAIN BEARING
-
1710-45775 SCREW, (#12-28 x .560)SCREW, (#12-28 x .560)
-
1811-45774 NUTNUT
-
1934-56007A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
2034-56008 STOP, Reed, MAIN BEARING REED VALVESSTOP, Reed, MAIN BEARING REED VALVES
-
2110-62204 SCREW, REED STOP MOUNTINGSCREW, REED STOP MOUNTING
-
2211-53153 NUT, REED STOP SCREWNUT, REED STOP SCREW
-
23774-9137A12 PISTON ASSEMBLY (3 RING)
(STANDARD)PISTON ASSEMBLY (3 RING)
(STANDARD) -
23774-9137A13 PISTON ASSEMBLY (3 RING)
(.015 OVERSIZE)PISTON ASSEMBLY (3 RING)
(.015 OVERSIZE) -
23774-9137A12 PISTON ASSEMBLY (2 RING)
(STANDARD)PISTON ASSEMBLY (2 RING)
(STANDARD) -
23774-9137A13 PISTON ASSEMBLY (2 RING)
(.015 OVERSIZE)PISTON ASSEMBLY (2 RING)
(.015 OVERSIZE) -
2453-857196 RING, Lock, PISTON PINRING, Lock, PISTON PIN
-
2539-78816A12 RING (1/16" THICK)
(STANDARD)RING (1/16" THICK)
(STANDARD) -
2539-78811A12 RING (1/16" THICK)
(.015 OVERSIZE)RING (1/16" THICK)
(.015 OVERSIZE) -
26624-8101A3 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
2731-62596A1 BEARING ASSEMBLY, CRANKPINBEARING ASSEMBLY, CRANKPIN
-
2810-54803 SCREW, (.250-28 x 1.500)SCREW, (.250-28 x 1.500)
-
2911-49091 NUTNUT
-
3029-47270 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
3112-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
-27-85653A87 GASKET SETGASKET SET
