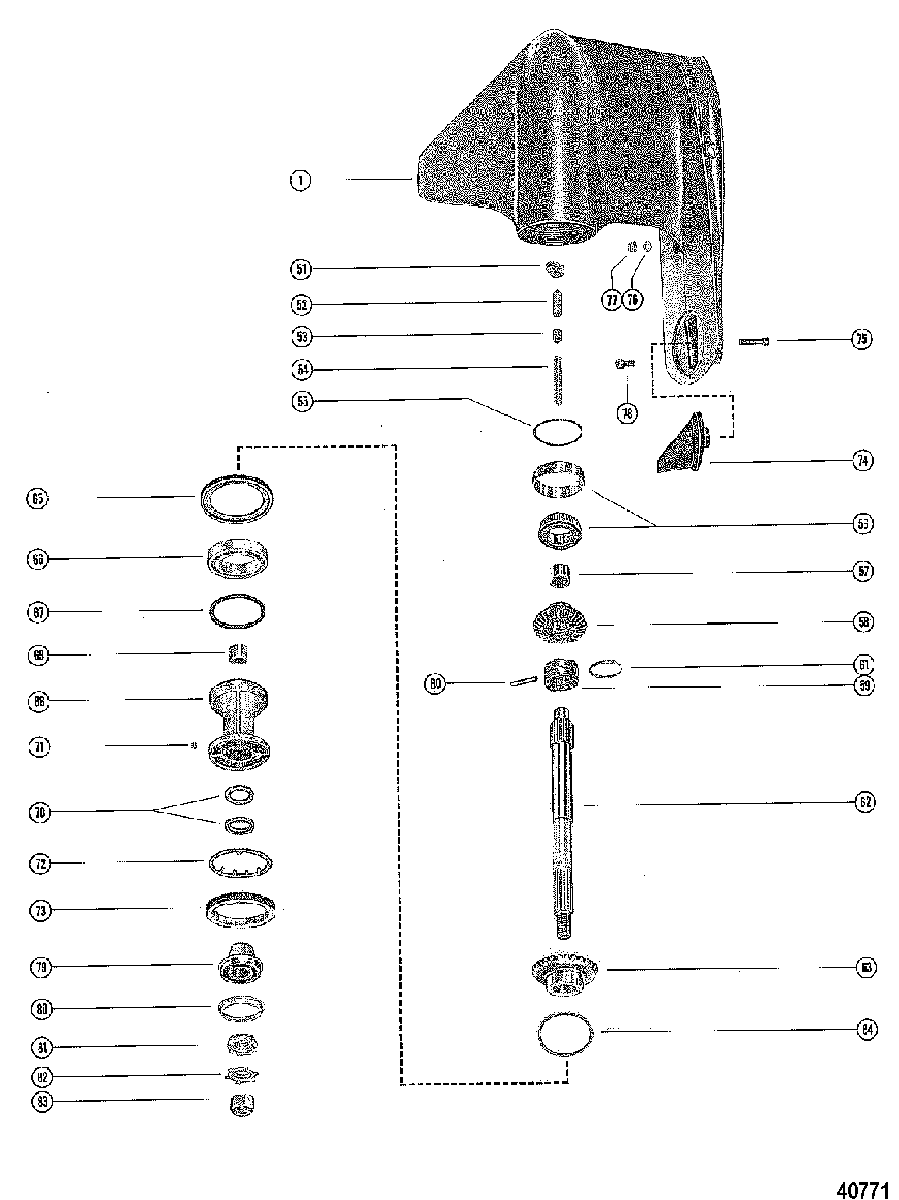

GEAR HOUSING ASSEMBLY, Propshaft для Mercury - 1150 7010763 THRU 7112248
-
№АртикулНазвание
-
-1623-7339A3 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowGEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
-1623-7339A3 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4235974/Australia-8027439/Canada-7055307GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4235974/Australia-8027439/Canada-7055307 -
-1623-7339A3 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# USA-4235975/Canada-7055308 THRU USA-4394236/Canada-7075522GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# USA-4235975/Canada-7055308 THRU USA-4394236/Canada-7075522 -
-1655-7333T24 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowGEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
-1655-7333T24 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4235974/Australia-8027439/Canada-7055307GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4235974/Australia-8027439/Canada-7055307 -
-1655-7333T24 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# USA-4235975/Canada-7055308 THRU USA-4394236/Canada-7075522GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# USA-4235975/Canada-7055308 THRU USA-4394236/Canada-7075522 -
-1655-7333T24 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# USA-4394237/Canada-7075523 THRU USA-4734317/Canada-7105197GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# USA-4394237/Canada-7075523 THRU USA-4734317/Canada-7105197 -
-1655-7333T24 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# USA-4734318/Australia-8047300/Canada-7105198 & UpGEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# USA-4734318/Australia-8047300/Canada-7105198 & Up -
11623-5244A6 GEAR HOUSING ASSEMBLY, BASIC
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowGEAR HOUSING ASSEMBLY, BASIC
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
11623-5244A6 GEAR HOUSING ASSEMBLY, BASIC
SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257GEAR HOUSING ASSEMBLY, BASIC
SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257 -
11655-7333T23 GEAR HOUSING ASSEMBLY, BASIC
SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4235974/Australia-8027439/Canada-7055307GEAR HOUSING ASSEMBLY, BASIC
SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4235974/Australia-8027439/Canada-7055307 -
11655-7333T23 GEAR HOUSING ASSEMBLY, BASIC
SN# USA-4235975/Canada-7055308 THRU USA-4394236/Canada-7075522GEAR HOUSING ASSEMBLY, BASIC
SN# USA-4235975/Canada-7055308 THRU USA-4394236/Canada-7075522 -
11655-7333T23 GEAR HOUSING ASSEMBLY, BASIC
SN# USA-4394237/Canada-7075523 & UpGEAR HOUSING ASSEMBLY, BASIC
SN# USA-4394237/Canada-7075523 & Up -
51760394 CAM, SHIFTCAM, SHIFT
-
5230625 FOLLOWER, CAMFOLLOWER, CAM
-
5330624 SLIDE, CROSS PINSLIDE, CROSS PIN
-
5424-30622 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5515-30923A1 SHIM, BEARING OUTER RACE TO GEAR HSG. (.002-3-5-10)SHIM, BEARING OUTER RACE TO GEAR HSG. (.002-3-5-10)
-
5631-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
5731-30895T BEARING, Needle, FORWARD GEARBEARING, Needle, FORWARD GEAR
-
5843-68447T1 GEAR, Forward
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowGEAR, Forward
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
5843-68447T1 GEAR, Forward
SN# USA-3761035/Australia-8014005/Canada-7025598 & UpGEAR, Forward
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up -
5952-822539T RATCHET, SLIDING GEARRATCHET, SLIDING GEAR
-
6017-8M0100263 PIN, Cross, RATCHET TO PROPELLER SHAFTPIN, Cross, RATCHET TO PROPELLER SHAFT
-
6124-30893 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6244-93003 SHAFT, PROPELLERSHAFT, PROPELLER
-
6343-68347T GEAR ASSEMBLY, Reverse
SN# USA-4734317/Australia-8047299/Canada-7105197 & BelowGEAR ASSEMBLY, Reverse
SN# USA-4734317/Australia-8047299/Canada-7105197 & Below -
6343-76250T GEAR, Reverse
SN# USA-4734318/Australia-8047300/Canada-7105198 & UpGEAR, Reverse
SN# USA-4734318/Australia-8047300/Canada-7105198 & Up -
6415-29955A1 SHIM SET, THRUST WASHER TO GEAR HOUSING
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowSHIM SET, THRUST WASHER TO GEAR HOUSING
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
6512-71143A1 WASHER, THRUST
SN# USA-4734317/Australia-8047299/Canada-7105197 & BelowWASHER, THRUST
SN# USA-4734317/Australia-8047299/Canada-7105197 & Below -
6512-76358 WASHER, THRUST
SN# USA-4734318/Australia-8047300/Canada-7105198 & UpWASHER, THRUST
SN# USA-4734318/Australia-8047300/Canada-7105198 & Up -
6630-31265 BEARING, BALL - REVERSE GEAR
SN# USA-4734317/Australia-8047299/Canada-7105197 & BelowBEARING, BALL - REVERSE GEAR
SN# USA-4734317/Australia-8047299/Canada-7105197 & Below -
6725-29976 O-RING, BEARING CARRIERO-RING, BEARING CARRIER
-
6852132T1 CARRIER ASSEMBLY, Bearing
SN# USA-4734317/Australia-8047299/Canada-7105197 & BelowCARRIER ASSEMBLY, Bearing
SN# USA-4734317/Australia-8047299/Canada-7105197 & Below -
6841529T2 CARRIER ASSEMBLY, Bearing
SN# USA-4734318/Australia-8047300/Canada-7105198 & UpCARRIER ASSEMBLY, Bearing
SN# USA-4734318/Australia-8047300/Canada-7105198 & Up -
6931-30956T BEARING, Needle, BEARING CARRIERBEARING, Needle, BEARING CARRIER
-
7026-76868 SEAL, BEARING CARRIERSEAL, BEARING CARRIER
-
7128-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
7214-52700 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
7352699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7497-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSINGTRIM TAB ASSEMBLY, GEAR HOUSING
-
7510-66024 SCREW, (.437-14 x 1.75)SCREW, (.437-14 x 1.75)
-
7612-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
7711-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
7810-65210 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
7965091Q01 THRUST HUB AND WASHER ASSEMBLY
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowTHRUST HUB AND WASHER ASSEMBLY
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
8012-29590 WASHER, CUPPED - THRUST HUB
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowWASHER, CUPPED - THRUST HUB
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
7965091Q01 THRUST HUB
SN# USA-3761035/Australia-8014005/Canada-7025598 & UpTHRUST HUB
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up -
8112-31211Q03 WASHER, SPLINED - PROPELLER NUTWASHER, SPLINED - PROPELLER NUT
-
8214-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
8311-52707Q1 NUT, PROPELLER
(INCLUDED ON ALL GEAR HOUSING ASSEMBLIES, COMPLETE)NUT, PROPELLER
(INCLUDED ON ALL GEAR HOUSING ASSEMBLIES, COMPLETE) -
-27-85653A87 GASKET SETGASKET SET
