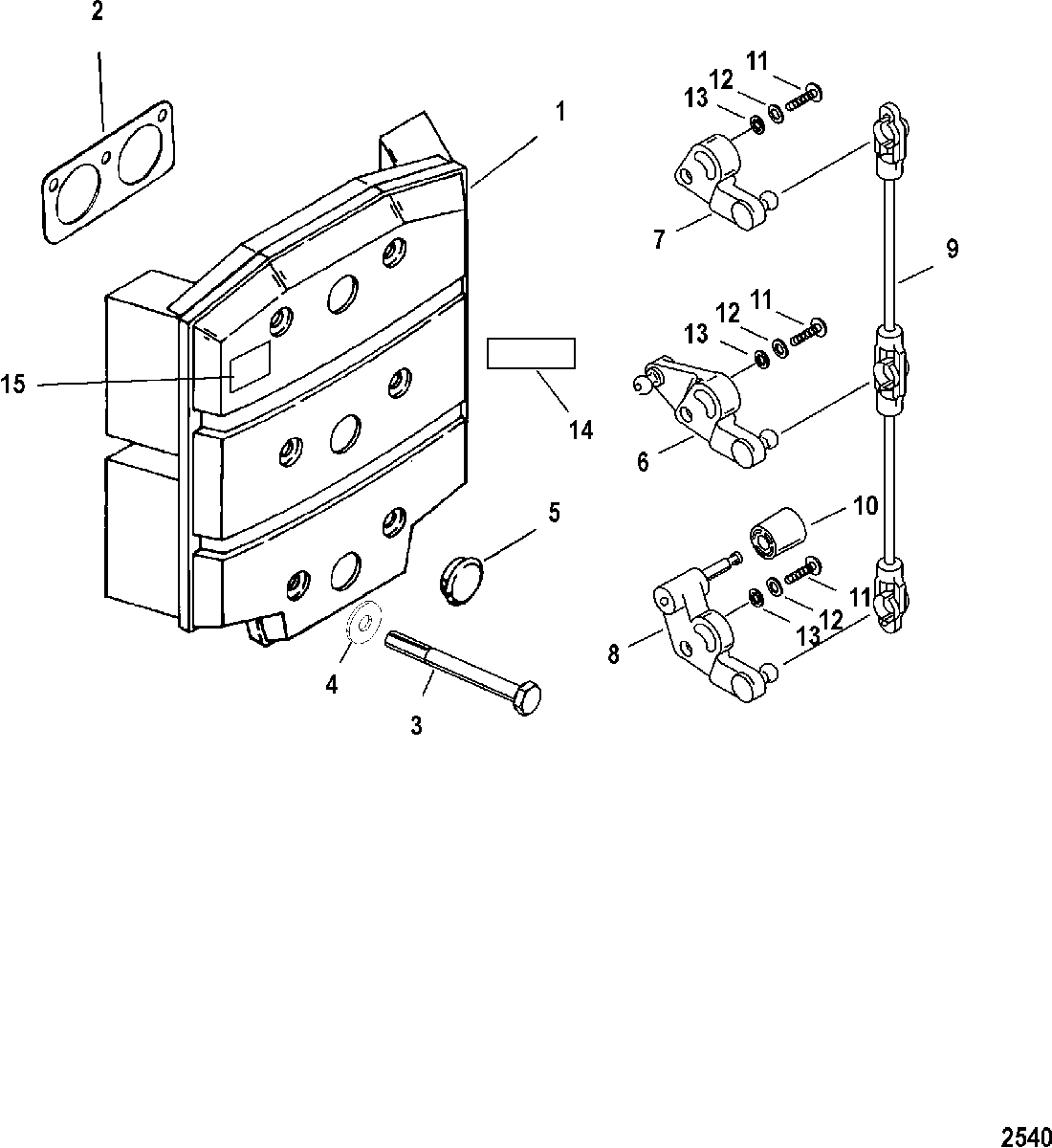

ATTENUATOR PLATE AND THROTTLE LEVERS для Mercury - 140 JET 0G760300 THRU 0G960499
-
№АртикулНазвание
-
1817495A1 PLATE ASSEMBLY, Sound AttenuatorPLATE ASSEMBLY, Sound Attenuator
-
227-892211 GASKETGASKET
-
310-884891 SCREW, (.250-28 x 2.500)SCREW, (.250-28 x 2.500)
-
412-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
519-815784 CAPCAP
-
6828277A1 LINKAGE KITLINKAGE KIT
-
7NSS NOT SOLD SEPARATE, Throttle LeverNOT SOLD SEPARATE, Throttle Lever
-
8NSS NOT SOLD SEPARATE, Throttle LeverNOT SOLD SEPARATE, Throttle Lever
-
9NSS NOT SOLD SEPARATE, Throttle LinkNOT SOLD SEPARATE, Throttle Link
-
1018178 ROLLERROLLER
-
1110-15124 SCREW, (#10-32 x .750)SCREW, (#10-32 x .750)
-
1212-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
1313-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
1437-856985A10 DECAL, EPA Label Information
(1999)(135) (135)DECAL, EPA Label Information
(1999)(135) (135) -
1437-856985A11 DECAL, EPA Label Information
(1999)(150/XR6/MAG. III/175/200) (150/XR6/MAG. III/175/200)DECAL, EPA Label Information
(1999)(150/XR6/MAG. III/175/200) (150/XR6/MAG. III/175/200) -
15NSS NOT SOLD SEPARATE, Decal-Caution AirboxNOT SOLD SEPARATE, Decal-Caution Airbox
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
