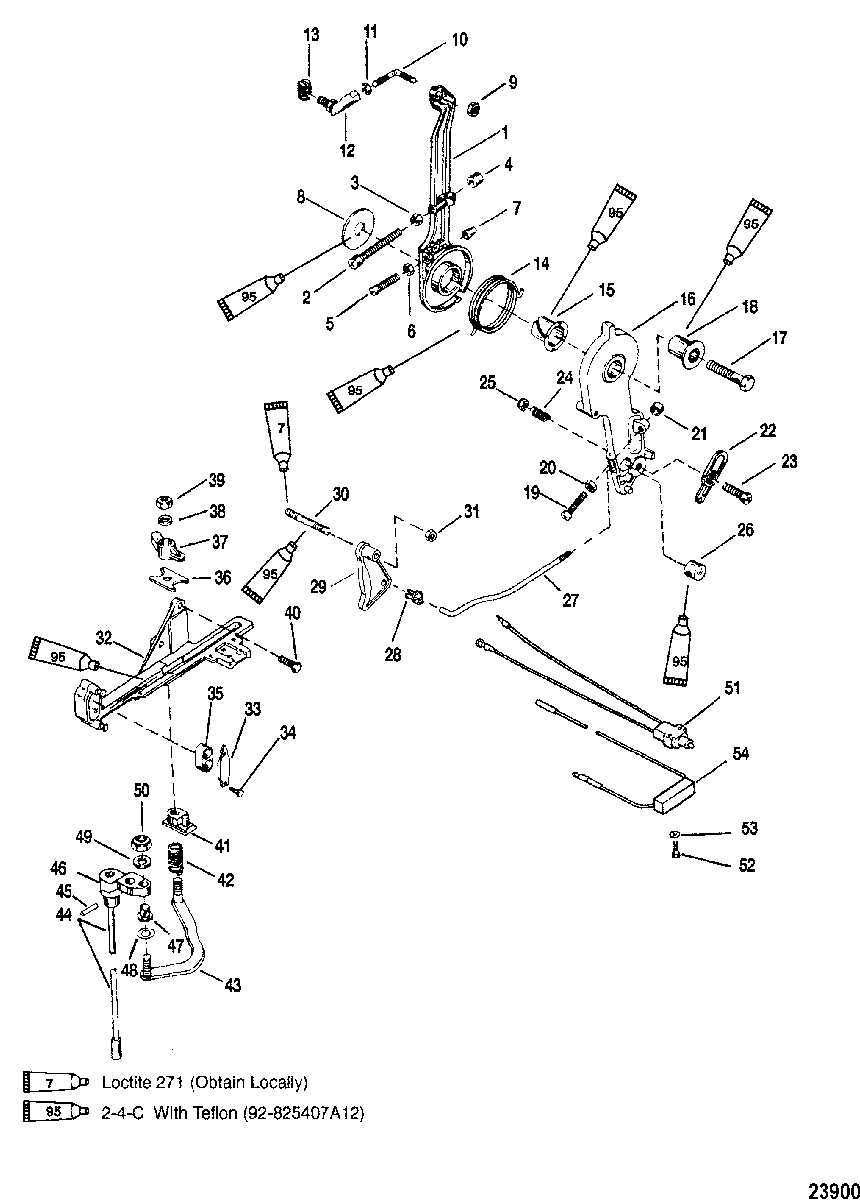

THROTTLE LEVER AND SHIFT SHAFT для Mercury - 140 JET 0G760300 THRU 0G960499
-
№АртикулНазвание
-
141094A3 LEVER ASSEMBLYLEVER ASSEMBLY
-
210-64022 SCREW, (.250-20 x 2.125)SCREW, (.250-20 x 2.125)
-
311-64015 NUT, (.250-20)NUT, (.250-20)
-
426852 CAP, NylonCAP, Nylon
-
510-13627 SCREW, (.190-32 x 1.250)SCREW, (.190-32 x 1.250)
-
611-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
748039 CAPCAP
-
812-46765 WASHER, (.390 x 1.50 x .120)WASHER, (.390 x 1.50 x .120)
-
911-46438 NUT, (#10-32)NUT, (#10-32)
-
1076035 RODROD
-
1111-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1262459T BALL JOINT ASSEMBLYBALL JOINT ASSEMBLY
-
1374897T PIVOTPIVOT
-
1424-823235 SPRINGSPRING
-
1523-55171 BUSHINGBUSHING
-
16410952 LEVERLEVER
-
1710-818165 SCREW, (.375-16 x 1.75)SCREW, (.375-16 x 1.75)
-
1823-55164 BUSHINGBUSHING
-
1910-64022 SCREW, (.250-20 x 2.125)SCREW, (.250-20 x 2.125)
-
2011-64015 NUT, (.250-20)NUT, (.250-20)
-
2126852 CAP, NylonCAP, Nylon
-
2239483 LATCHLATCH
-
2310-69026 SCREW, (.250-28 x .880)SCREW, (.250-28 x .880)
-
2424-20099 SPRINGSPRING
-
2511-826709109 NUT, (.250-28)NUT, (.250-28)
-
2614638 BARRELBARREL
-
278302391 RODROD
-
2823-932481 BUSHINGBUSHING
-
298282761 CAM, Throttle
(135)CAM, Throttle
(135) -
29828276 CAM
(150 THRU 200)CAM
(150 THRU 200) -
3016-20353 STUD, (.250-28 x 1.750)STUD, (.250-28 x 1.750)
-
3111-826709109 NUT, (.250-28)NUT, (.250-28)
-
32814283A2 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
3398889 LATCHLATCH
-
3410-42975 DRIVE SCREWDRIVE SCREW
-
3539519 CUPCUP
-
3652100 WEAR PLATEWEAR PLATE
-
378M0036768 LATCHLATCH
-
3812-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
3911-826709109 NUT, (.250-28)NUT, (.250-28)
-
4010-53167T SCREW, (.312-18 x .880)SCREW, (.312-18 x .880)
-
41814284 GUIDE BLOCKGUIDE BLOCK
-
4224-20099 SPRINGSPRING
-
4367073A1 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
4479932A16 SHIFT SHAFT ASSEMBLY
(LONG)SHIFT SHAFT ASSEMBLY
(LONG) -
4479932A17 SHIFT SHAFT ASSEMBLY
(X-LONG)SHIFT SHAFT ASSEMBLY
(X-LONG) -
45NSS NOT SOLD SEPARATE, Roll PinNOT SOLD SEPARATE, Roll Pin
-
46NSS NOT SOLD SEPARATE, Shift Shaft Lever-UpperNOT SOLD SEPARATE, Shift Shaft Lever-Upper
-
4723-26856 BUSHINGBUSHING
-
4813-29720 WAVE WASHERWAVE WASHER
-
4912-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
5011-826709109 NUT, (.250-28)NUT, (.250-28)
-
5187-814281A1 IDLE STABILIZING SHIFT KIT
150/XR6/175 MAGNUM IIIIDLE STABILIZING SHIFT KIT
150/XR6/175 MAGNUM III -
5210-77478 SCREW, (#6-32 x .875)
150/XR6/175 MAGNUM IIISCREW, (#6-32 x .875)
150/XR6/175 MAGNUM III -
5312-27882 WASHER
150/XR6/175 MAGNUM IIIWASHER
150/XR6/175 MAGNUM III -
5417461A3 RESISTOR MODULE
150/XR6/175 MAGNUM IIIRESISTOR MODULE
150/XR6/175 MAGNUM III
