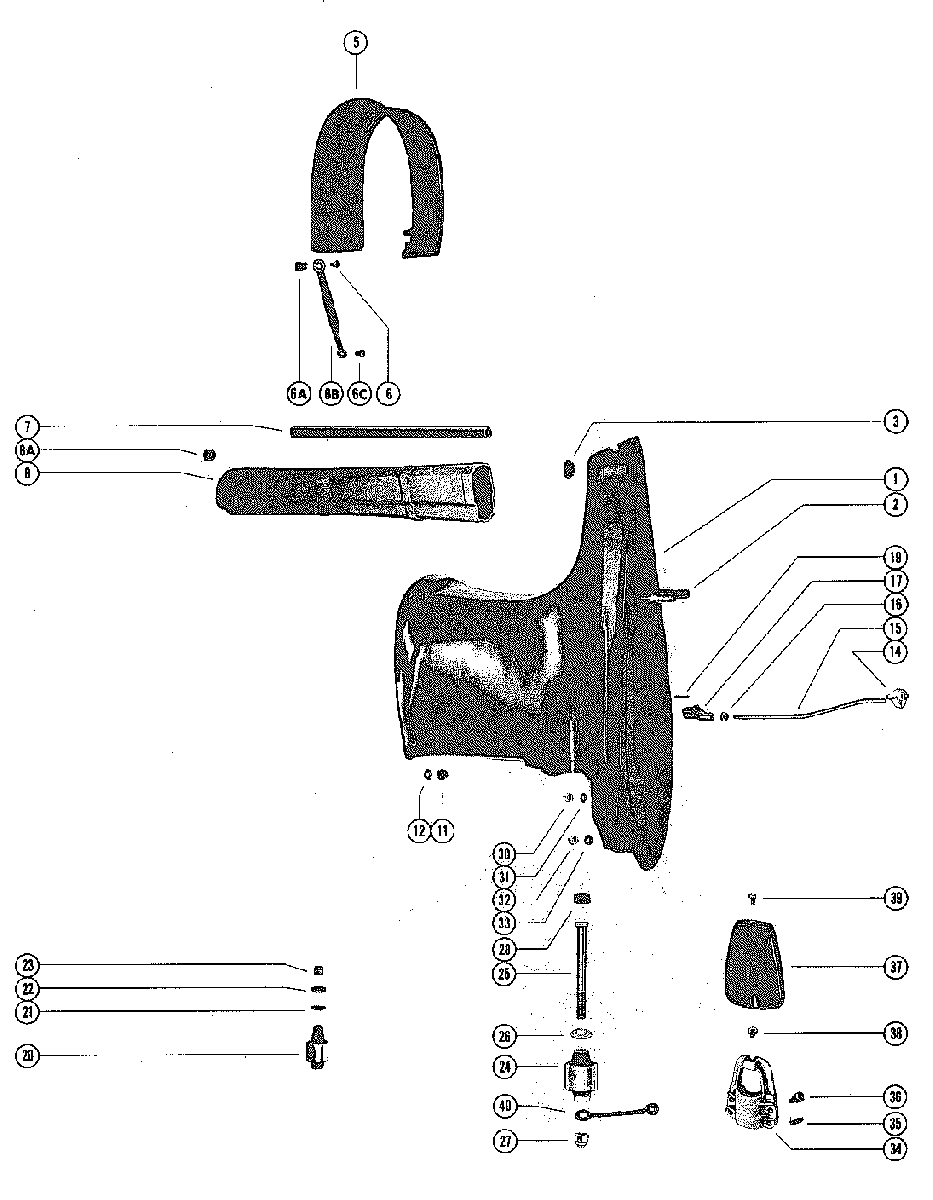

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 140 7150413 AND UP
-
№АртикулНазвание
-
11573-5239A4 DRIVE SHAFT HOUSING ASSEMBLYDRIVE SHAFT HOUSING ASSEMBLY
-
216-56295 STUD
DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16")STUD
DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16") -
319-64649 PLUG, PLASTIC - TRIM TAB SCREW HOLEPLUG, PLASTIC - TRIM TAB SCREW HOLE
-
537417 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
610-57807 SCREW, TRIM COVER TO BOTTOM COWLSCREW, TRIM COVER TO BOTTOM COWL
-
6A25-8M0079730 GROMMET, PLASTIC - TRIM COVER SCREWGROMMET, PLASTIC - TRIM COVER SCREW
-
6B46933A2 GROUND STRAP ASSEMBLY, TRIM COVER SCREWGROUND STRAP ASSEMBLY, TRIM COVER SCREW
-
6C10-62568 SCREW, GROUND STRAP ATTACHINGSCREW, GROUND STRAP ATTACHING
-
732-60897 TUBE, WATER INLETTUBE, WATER INLET
-
878184T TUBE, EXHAUSTTUBE, EXHAUST
-
8A65638 BOOT, TUBE MOUNTBOOT, TUBE MOUNT
-
1111-69254 NUT, POWERHEAD STUDS (3/8-24)NUT, POWERHEAD STUDS (3/8-24)
-
1212-20553 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
1452887 GUIDE, PUSH ROD - REVERSE LOCKING
NOT USED WITH FULL POWER TRIMGUIDE, PUSH ROD - REVERSE LOCKING
NOT USED WITH FULL POWER TRIM -
1547558 ROD, PUSH - REVERSE LOCK
NOT USED WITH FULL POWER TRIMROD, PUSH - REVERSE LOCK
NOT USED WITH FULL POWER TRIM -
1611-69254 NUT, JAM - PUSH ROD
NOT USED WITH FULL POWER TRIMNUT, JAM - PUSH ROD
NOT USED WITH FULL POWER TRIM -
1747559 YOKE, PUSH ROD
NOT USED WITH FULL POWER TRIMYOKE, PUSH ROD
NOT USED WITH FULL POWER TRIM -
1918-25191 COTTER PIN, PUSH ROD PIN
NOT USED WITH FULL POWER TRIMCOTTER PIN, PUSH ROD PIN
NOT USED WITH FULL POWER TRIM -
2075296 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
2112-47840 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
2212-31263 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
2311-34933 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
2475299 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
2510-75284 SCREW, LOWER MOUNT (5 1/2")SCREW, LOWER MOUNT (5 1/2")
-
2612-49339 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
2711-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
2825067 BUMPER, RUBBER - LOWER MOUNTING SCREWBUMPER, RUBBER - LOWER MOUNTING SCREW
-
3011-34933 NUT
GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT
GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS -
3112-45176 WASHER
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS -
3211-29489 NUT
GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT
GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS -
3312-45176 WASHER
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS -
3435608 CLAMP
LOWER MOUNT TO DRIVE SHAFT HOUSINGCLAMP
LOWER MOUNT TO DRIVE SHAFT HOUSING -
3524-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
3610-29256 SCREW
LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSINGSCREW
LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING -
3735474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
3811-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
3910-87884 SCREW, COVER TO LOWER CLAMP MOUNTSCREW, COVER TO LOWER CLAMP MOUNT
-
4088238A10 WIRE ASSEMBLY, GROUNDWIRE ASSEMBLY, GROUND
Все узлы модели:
- BOTTOM COWL AND SHIFT LINKAGE
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- • DRIVE SHAFT HOUSING ASSEMBLY
- END CAP, MANIFOLD AND EXHAUST COVERS
- EXHAUST EXTENSION PLATE
- FLYWHEEL, STARTER MOTOR AND STATOR
- FUEL PUMP AND FUEL LINE ASSEMBLY
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
- HYDRAULIC PUMP AND CONTROL VALVE
- HYDRAULIC PUMP ASSEMBLY
- MISCELLANEOUS PARTS/ACCESSORIES
- POWER TRIM CYLINDER REPAIR KITS
- PROPELLERS (RIGHT HAND ROTATION)
- SWIVEL BRACKET ASSEMBLY
- THROTTLE LEVER AND LINK RODS
- TOP COWL AND SUPPORT BRACKETS
- TRANSOM BRACKET
- TRIM CYLINDERS AND HYDRAULIC HOSES
- WIRING HARNESS, SWITCH BOX AND IGNITION COIL
