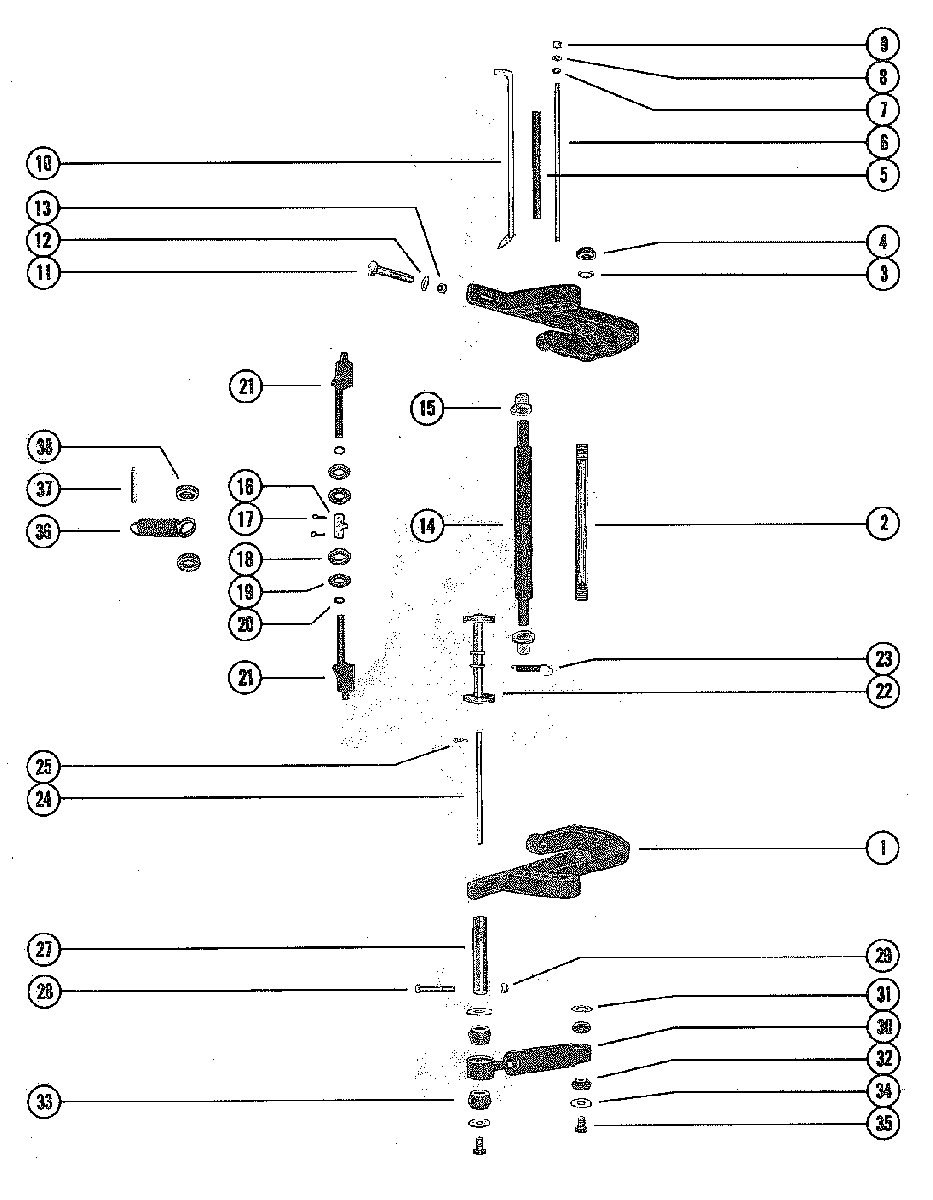

TRANSOM BRACKET для Mercury - 140 7150413 AND UP
-
№АртикулНазвание
-
11496-8822A1 TRANSOM BRACKETTRANSOM BRACKET
-
289099 TUBE, TILTTUBE, TILT
-
313-89297 WASHER, WAVE - TILT TUBEWASHER, WAVE - TILT TUBE
-
411-858869 NUT, TILT TUBENUT, TILT TUBE
-
523-87642 SPACER, TRANSOM BRACKET STUDSPACER, TRANSOM BRACKET STUD
-
616-87643 STUD
TRANSOM BRACKET--NOT USED WITH POWER TRIMSTUD
TRANSOM BRACKET--NOT USED WITH POWER TRIM -
712-36001 WASHER, TRANSOM BRACKET STUDWASHER, TRANSOM BRACKET STUD
-
813-26993 LOCKWASHER, TRANSOM BRACKET STUDLOCKWASHER, TRANSOM BRACKET STUD
-
911-28770 NUT, TRANSOM BRACKET STUDNUT, TRANSOM BRACKET STUD
-
1017-8M0026068 TILT LOCK PIN ASSEMBLY
-NOT USED WITH POWER TRIMTILT LOCK PIN ASSEMBLY
-NOT USED WITH POWER TRIM -
1110-89673 BOLT, TRANSOM BRACKET TO TRANSOM (5")BOLT, TRANSOM BRACKET TO TRANSOM (5")
-
1212-46765 WASHER, TRANSOM BRACKET BOLTWASHER, TRANSOM BRACKET BOLT
-
1311-82670912 NUT, TRANSOM BRACKET BOLTNUT, TRANSOM BRACKET BOLT
-
1110-677552 BOLT, TRANSOM BRACKET TO TRANSOM (6")BOLT, TRANSOM BRACKET TO TRANSOM (6")
-
1212-28421 WASHER, TRANSOM BRACKET BOLTWASHER, TRANSOM BRACKET BOLT
-
1311-35000 NUT, TRANSOM BRACKET BOLTNUT, TRANSOM BRACKET BOLT
-
1489116 PIN, UPPER SHOCK MOUNTINGPIN, UPPER SHOCK MOUNTING
-
1523-89117 BUSHING, UPPER SHOCK MOUNTING PINBUSHING, UPPER SHOCK MOUNTING PIN
-
1679659 COUPLING, TILT LOCKCOUPLING, TILT LOCK
-
1718-47959 COTTER PIN, TILT LOCKCOTTER PIN, TILT LOCK
-
1826-22734 OIL SEAL, SWIVEL BRACKET (TILT LOCK)OIL SEAL, SWIVEL BRACKET (TILT LOCK)
-
1912-76388 WASHER, TILT LOCKWASHER, TILT LOCK
-
2025-627021 "O" RING, TILT LOCK"O" RING, TILT LOCK
-
2189105 TILT LOCKTILT LOCK
-
2287431 REVERSE LOCK ASSEMBLY
- NOT USED WITH POWER TRIMREVERSE LOCK ASSEMBLY
- NOT USED WITH POWER TRIM -
2324-78203A2 SPRING ASSEMBLY, REVERSE LOCK
- NOT USED WITH POWER TRIMSPRING ASSEMBLY, REVERSE LOCK
- NOT USED WITH POWER TRIM -
2456349 SHAFT, REVERSE LOCK PIVOT
- NOT USED WITH POWER TRIMSHAFT, REVERSE LOCK PIVOT
- NOT USED WITH POWER TRIM -
2518-45882 COTTER PIN, REVERSE LOCK TO SHAFT
- NOT USED WITH POWER TRIMCOTTER PIN, REVERSE LOCK TO SHAFT
- NOT USED WITH POWER TRIM -
2755-28414 PIN, LOWER SHOCK MOUNTINGPIN, LOWER SHOCK MOUNTING
-
2810-21937 SCREW, LOWER SHOCK PIN (2")SCREW, LOWER SHOCK PIN (2")
-
2911-20184 NUT, LOWER SHOCK PIN SCREWNUT, LOWER SHOCK PIN SCREW
-
3055-58780A7 SHOCK ABSORBER
- NOT USED WITH POWER TRIMSHOCK ABSORBER
- NOT USED WITH POWER TRIM -
3112-28196 WASHER, UPPER BUSHING RETAINER (INNER)
- NOT USED WITH POWER TRIMWASHER, UPPER BUSHING RETAINER (INNER)
- NOT USED WITH POWER TRIM -
3223-32171 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
- NOT USED WITH POWER TRIMBUSHING, RUBBER - SHOCK ABSORBER (UPPER)
- NOT USED WITH POWER TRIM -
3323-28198 BUSHING, UPPER - SHOCK ABSORBER (LOWER)
- NOT USED WITH POWER TRIMBUSHING, UPPER - SHOCK ABSORBER (LOWER)
- NOT USED WITH POWER TRIM -
3412-69374 WASHER, UPPER/LOWER SHOCK PIN (LOWER)
- NOT USED WITH POWER TRIMWASHER, UPPER/LOWER SHOCK PIN (LOWER)
- NOT USED WITH POWER TRIM -
3510-69375 SCREW, UPPER AND LOWER SHOCK PIN
- NOT USED WITH POWER TRIMSCREW, UPPER AND LOWER SHOCK PIN
- NOT USED WITH POWER TRIM -
3624-94891 SPRING, COIL - SWIVEL BRACKET
- NOT USED WITH POWER TRIMSPRING, COIL - SWIVEL BRACKET
- NOT USED WITH POWER TRIM -
3717-38311 PIN, COIL SPRING MOUNTING
- NOT USED WITH POWER TRIMPIN, COIL SPRING MOUNTING
- NOT USED WITH POWER TRIM -
3823-28688 SPACER, RUBBER - COIL SPRING POSITIONING
- NOT USED WITH POWER TRIMSPACER, RUBBER - COIL SPRING POSITIONING
- NOT USED WITH POWER TRIM
