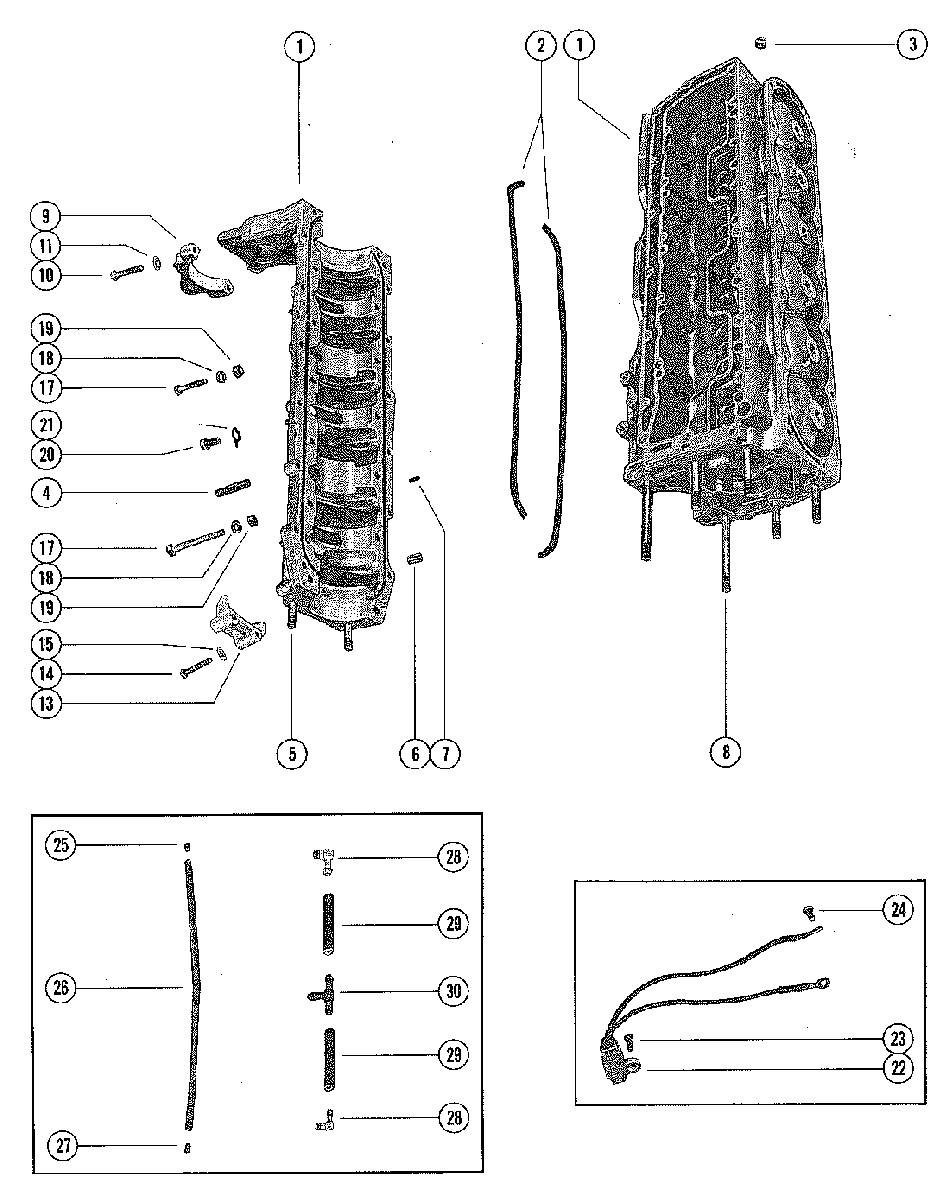

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 1400, 140 7112773 THRU 7132512
-
№АртикулНазвание
-
1852-7408A2 CYLINDER BLOCK AND CRANKCASE ASSEMBLYCYLINDER BLOCK AND CRANKCASE ASSEMBLY
-
227-53862 GASKET, CRANKCASE TO CYLINDER BLOCKGASKET, CRANKCASE TO CYLINDER BLOCK
-
366517 RESTRICION, CRANKCASE BLEEDRESTRICION, CRANKCASE BLEED
-
416-64936 STUD, CARBURETOR MOUNTING (1 3/16")STUD, CARBURETOR MOUNTING (1 3/16")
-
516-64281 STUD
CRANKCASE TO EXHAUST EXTENSION PLATE (1 7/8")STUD
CRANKCASE TO EXHAUST EXTENSION PLATE (1 7/8") -
617-43044 PIN, DOWEL - CRANKCASE TO CYLINDER BLOCKPIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
-
717-63779 PIN, DOWEL - CYLINDER BLOCK TO MAIN BEARINGPIN, DOWEL - CYLINDER BLOCK TO MAIN BEARING
-
816-64282 STUD
CYLINDER BLOCK TO DRIVE SHAFT HOUSING PLATE (4")STUD
CYLINDER BLOCK TO DRIVE SHAFT HOUSING PLATE (4") -
956029T COVER, STARTER MOTOR BRACKET - TOPCOVER, STARTER MOTOR BRACKET - TOP
-
1010-31984 SCREW, TOP COVER ATTACHING (1 3/8")SCREW, TOP COVER ATTACHING (1 3/8")
-
1010-69267 SCREW, TOP COVER ATTACHING (1 3/4")SCREW, TOP COVER ATTACHING (1 3/4")
-
1113-26993 LOCKWASHER, TOP COVER SCREWSLOCKWASHER, TOP COVER SCREWS
-
1376867 COVER, STARTER MOTOR BRACKET - BOTTOMCOVER, STARTER MOTOR BRACKET - BOTTOM
-
1410-73279 SCREW, BOTTOM COVER ATTACHING (1 7/8")SCREW, BOTTOM COVER ATTACHING (1 7/8")
-
1513-26993 LOCKWASHER, BOTTOM COVER SCREWLOCKWASHER, BOTTOM COVER SCREW
-
1710-57841 SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")
-
1710-32293 SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")
-
1710-73657 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
-
1812-22753 WASHER
CRANKCASE TO CYLINDER BLOCK SCREWSWASHER
CRANKCASE TO CYLINDER BLOCK SCREWS -
1911-29250 NUT
CRANKCASE TO CYLINDER BLOCK SCREWS (LOWER)NUT
CRANKCASE TO CYLINDER BLOCK SCREWS (LOWER) -
2010-20359 SCREW, CENTER MAIN BEARING LOCKINGSCREW, CENTER MAIN BEARING LOCKING
-
2114-20091 TAB WASHER, BEARING LOCKING SCREWTAB WASHER, BEARING LOCKING SCREW
-
2258124A4 SWITCH, MERCURYSWITCH, MERCURY
-
2310-69235 SCREW
SWITCH TO FRONT MOUNTING BRACKET (1/2")SCREW
SWITCH TO FRONT MOUNTING BRACKET (1/2") -
2410-62568 SCREW, MERCURY SWITCH LEADSCREW, MERCURY SWITCH LEAD
-
2521-42866 CHECK VALVE, BLEED HOSE - UPPERCHECK VALVE, BLEED HOSE - UPPER
-
2632-9938779 HOSE, BLEED (22")HOSE, BLEED (22")
-
2721-428671 CHECK VALVE, BLEED HOSE - LOWERCHECK VALVE, BLEED HOSE - LOWER
-
2822-20781 ELBOW, BALANCE HOSEELBOW, BALANCE HOSE
-
2932-8M0108355 HOSE, BALANCE - MAIN BEARING (6 1/4")HOSE, BALANCE - MAIN BEARING (6 1/4")
-
3022-8585531 TEE, BALANCE HOSETEE, BALANCE HOSE
